Door Adjustemnt Dimensions

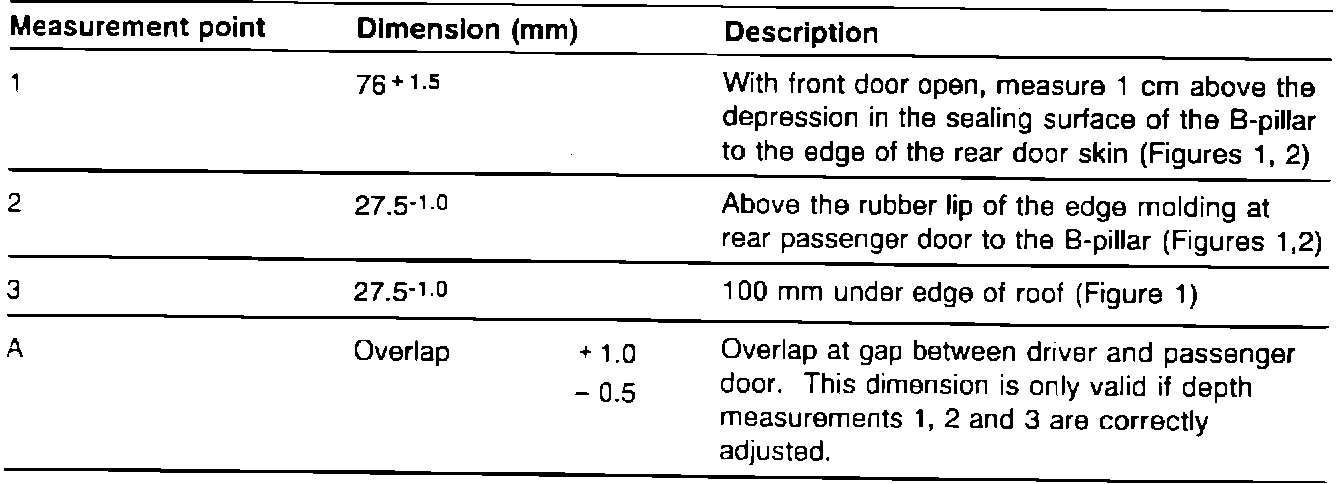

After the start of production on model 140 vehicles, several dimensions for the driver and front passenger door area have been changed. The currently valid dimensions corresponding to points in Figure 1 appear in the table. Refer to adjustment description shown in SMS, Job No. 60-070.






Specified depth dimensions for doors

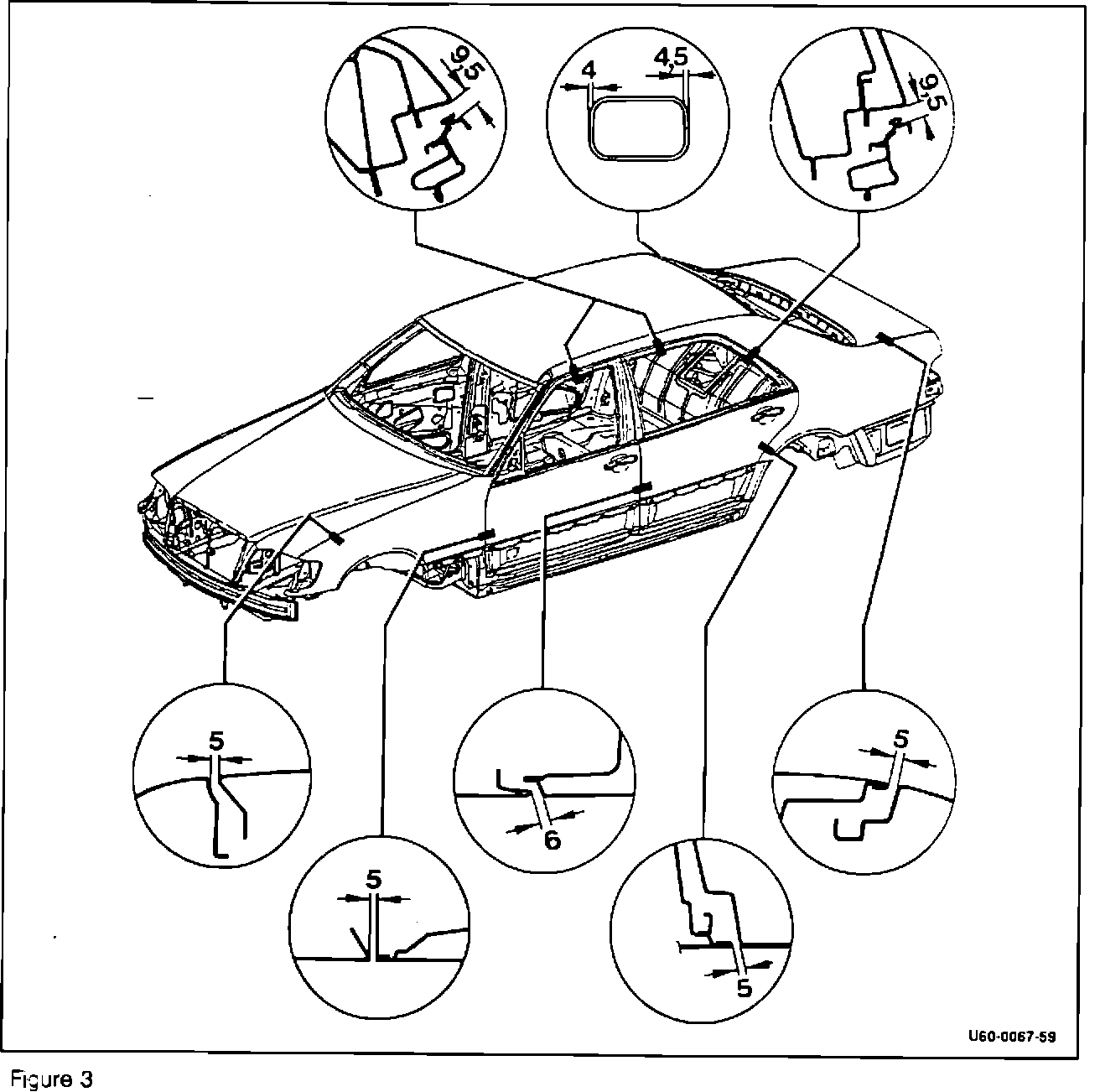

Body Dimension





Special tool
