Fog Lamp Adjustment

B. FOG LAMP ADJUSTMENT

The fog lamp may only be adjusted in the vertical axis. Horizontal adjustment is not possible.

With vehicle still parked at test screen as described, perform adjustment as follows:

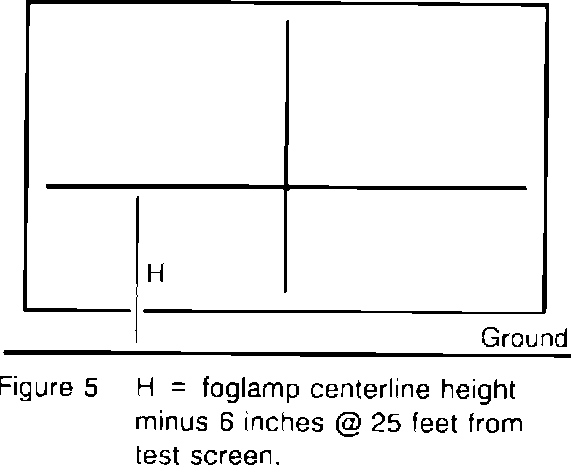

1. Mark the test screen or wall according to Figure 5. Determine dimension "H" (Figure 5) by measuring from the ground to the centerline of the fog lamp glass (small dot in lens), and then subtracting 6 inches.

Note:
This method of determining dimension "H" is only valid with the vehicle parked 25 feet from the test screen.

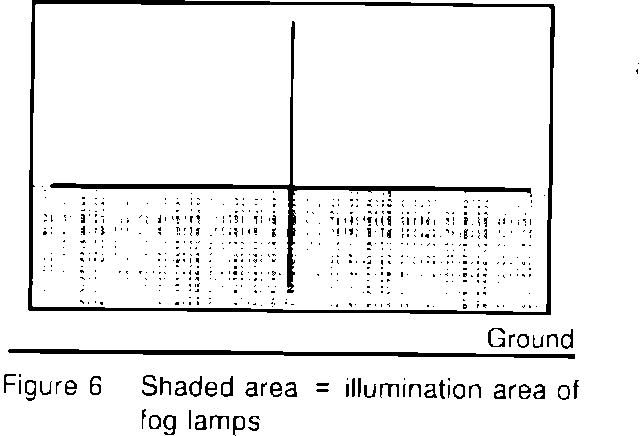

2. Turn the fog lamp vertical adjustment screw (8, Figure 1) so that the fog lamps illuminate the test screen as shown in Figure 6.

3. Reinstall headlamp unit covers and access covers in crossmember.
