Radio - Error Codes

9226mercedes01

REF. NO.
MBNA 82/58


TO:
OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE:
February 1992


SUBJECT:
BECKER TWO - PIECE RADIO ERROR CODES


The Becker two - piece radio has a self-diagnostic system. The system verifies data exchange via the BUS cable between the dash mounted Radio control unit (A2/4), CD changer (A2/6) and trunk mounted Tuner/amplifier (A2/3). If a fault is detected, an error code, E1 through E5, will appear in the radio display. There is no procedure required to access radio error codes.

The Diagnostic chart below cross references error code - possible cause - remedy.
Note:
If more than one remedy is listed, they are to be performed in the sequence listed.

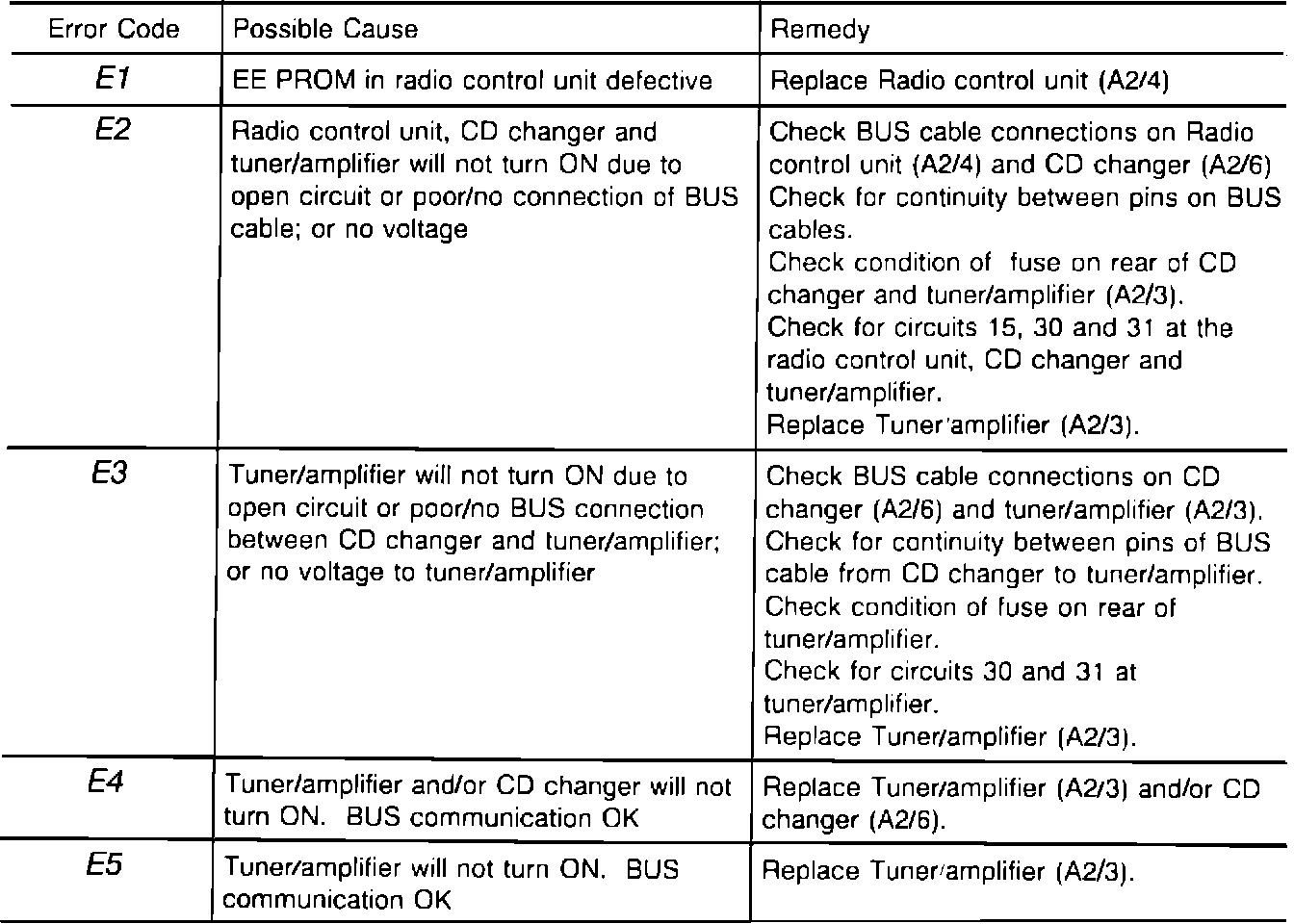

Diagnostic Chart
