Home >> Mercedes Benz >> 1992 >> 400E (124.034) V8-4.2L (119.975) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Control Systems >> First Gear Start Relay

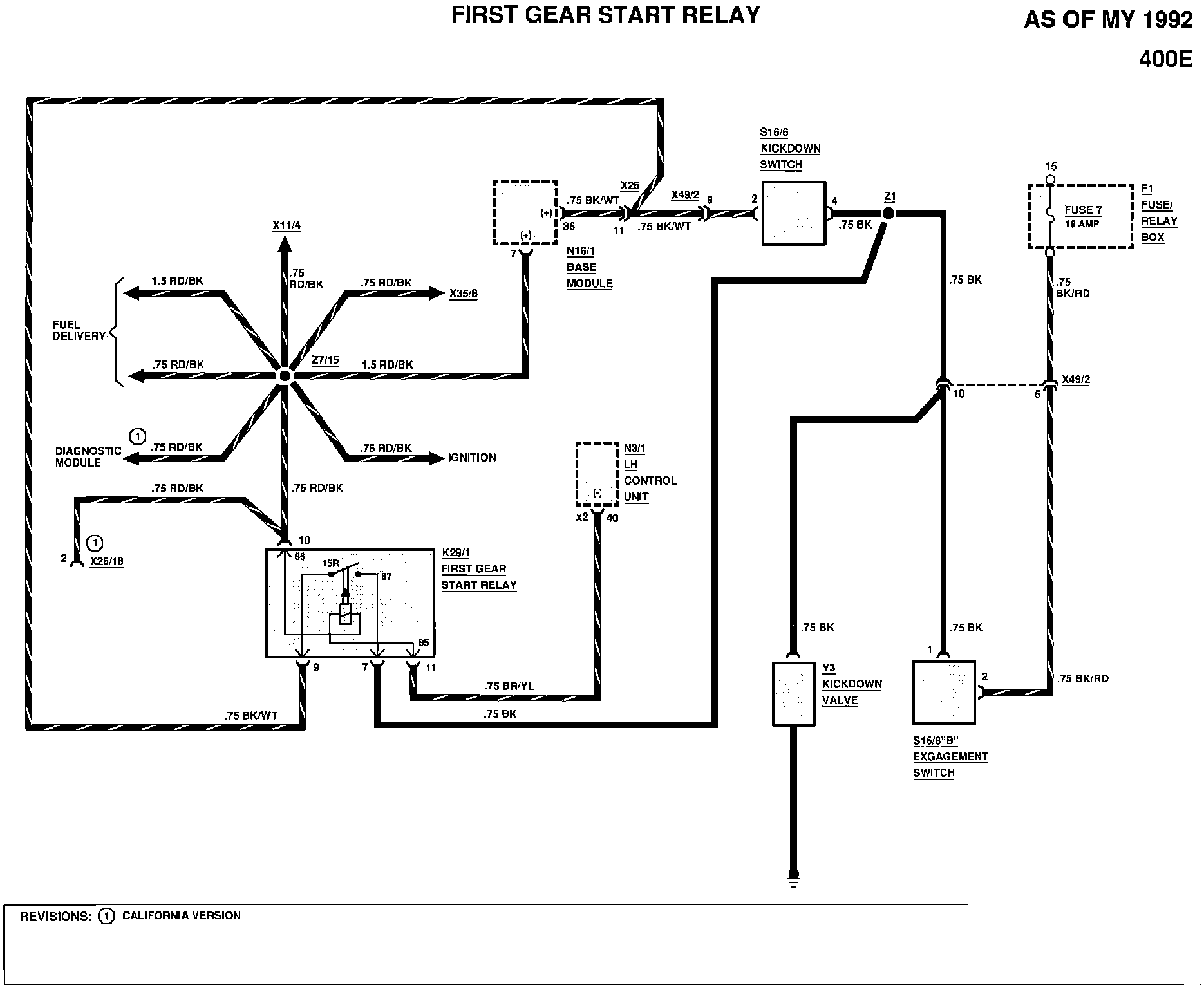

First Gear Start Relay

First Gear Start Relay:
