Mercedes Benz
>>
1992
>>
500E (124.036) V8-5.0L (119.974)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Computers and Control Systems
>>
Accelerator Pedal Position Sensor
Accelerator Pedal Position Sensor

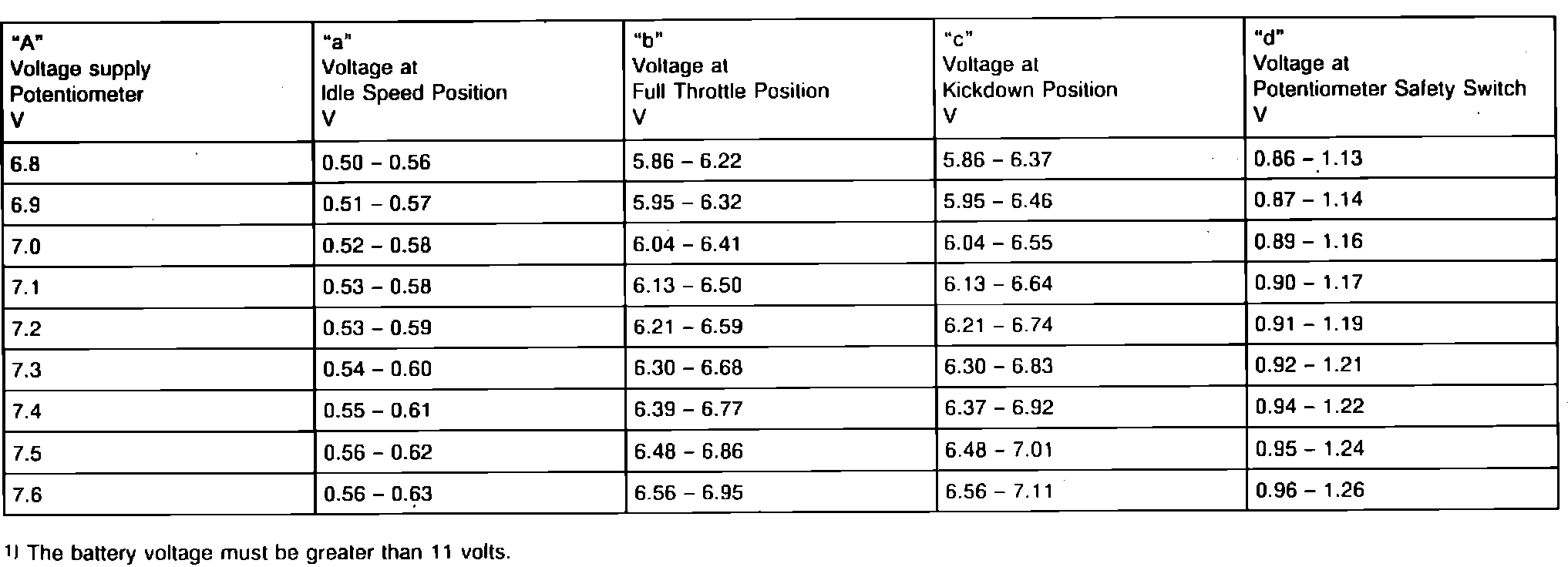

Voltage Value - Accelerator Pedal Position Sensor:
