Interior Lights PE82.20-U-2000XA
Interior Lights PE82.20-U-2000XA

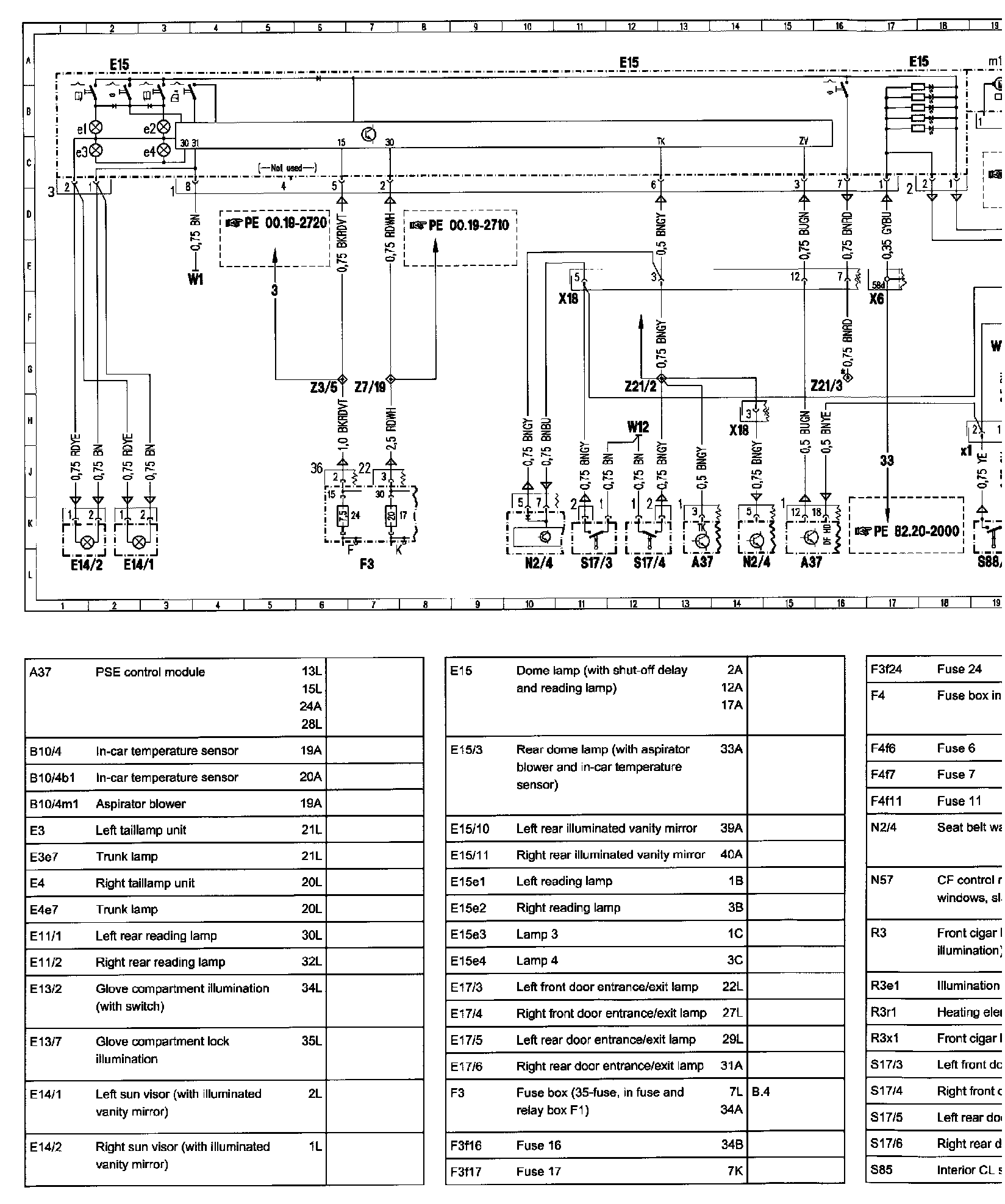

�[�PѴPPE82.20-U-2000-XA - Sedan -With Non Variable Instrument Illumination:
