Adaptive Damping System (ADS) II

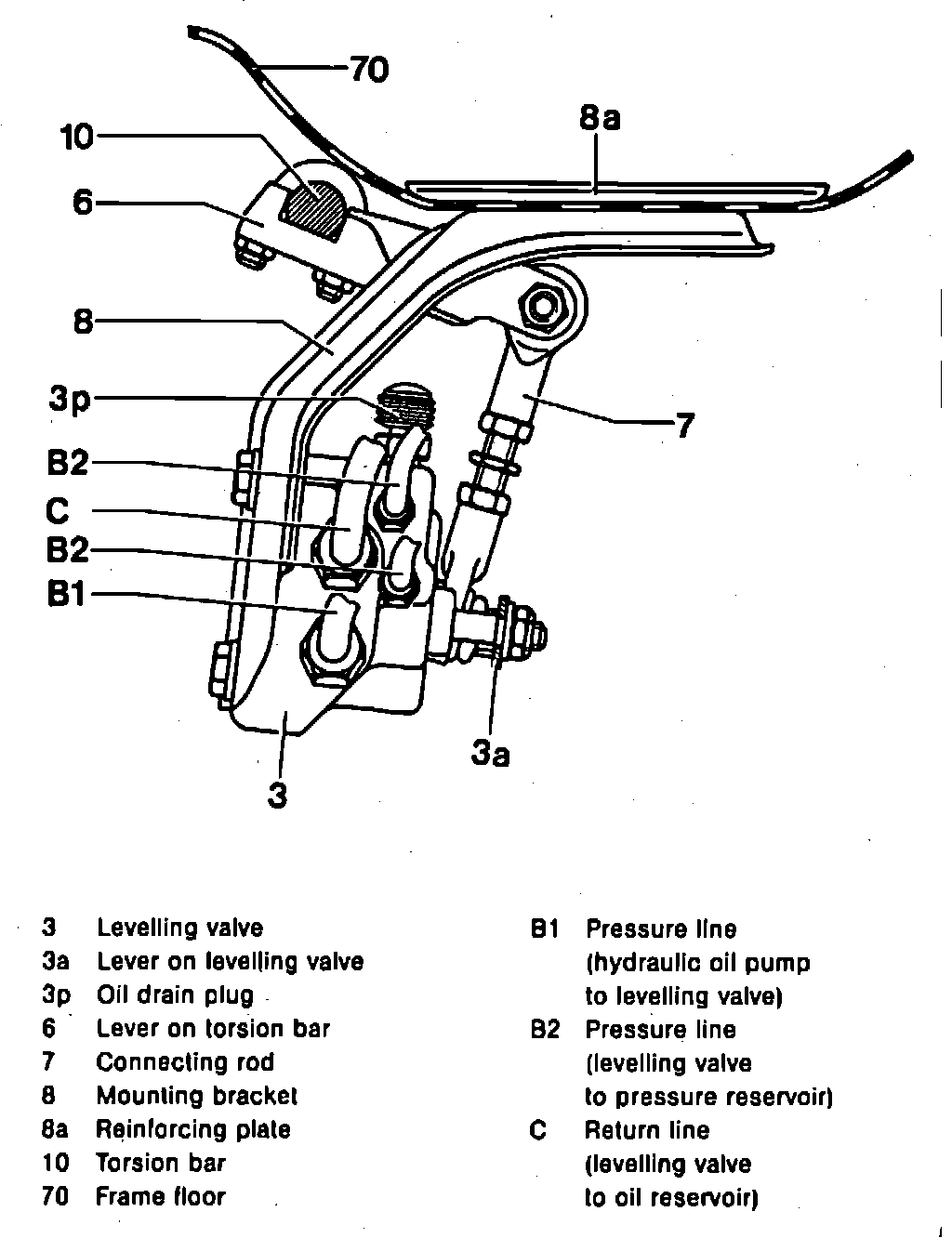

Fig. 9 Leveling Valve Installation:

1. Remove bleed screw from leveling valve and drain system fluid into a suitable container.
2. Disconnect fluid lines and lever connecting rod from leveling valve, Fig. 9. Do not loosen control shaft fastening lever clamping screw.
3. Remove leveling valve attaching bolts.
4. Reverse procedure to install. Torque leveling valve bolts to 33 ft. lbs., M10 connection at leveling valve to 11 ft. lbs., M14 connection at leveling valve to 18 ft. lbs., M10 fluid line connection to 11 ft. lbs. and M12 fluid line connection to 15 ft. lbs.
