Exhaust Gas Recirculation: Locations

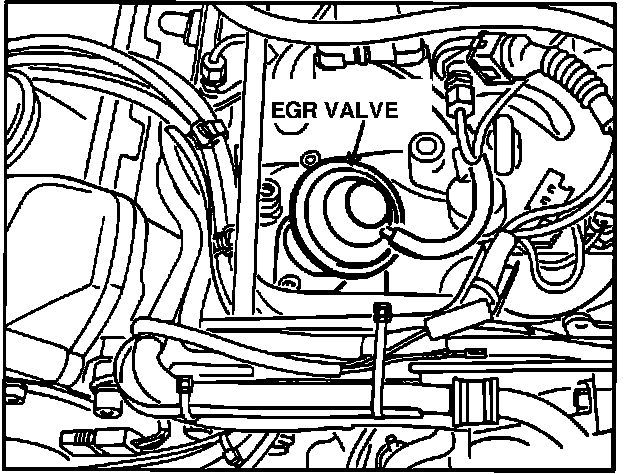

Fig. 108 EGR Valve Location:

The EGR valve is located on the front section of the intake manifold.

Fig. 46 Vacuum Port Location:

The EGR vacuum source is located on the throttle valve.

Fig. 94 Component Locations:

The switchover valve is located in the control unit compartment.
