Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1992
>>
500SL (129.067) V8-5.0L (119.960)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Electronic Throttle Actuator
>>
Reference Potentiometer
Reference Potentiometer

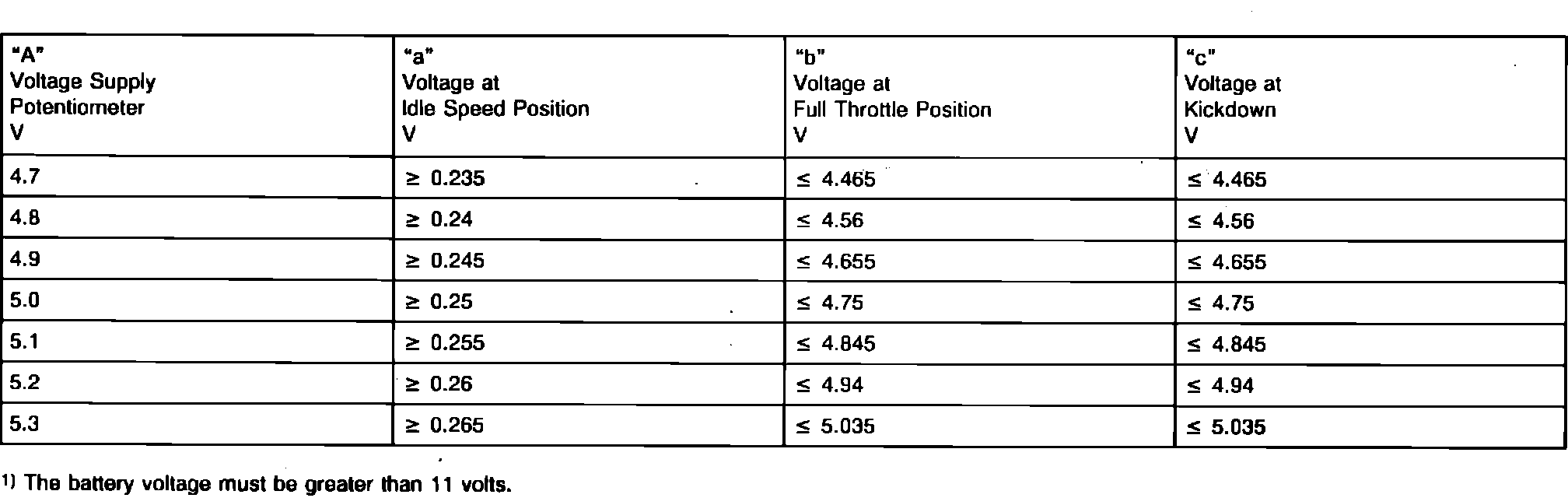

Voltage Value - Reference Potentiometer:
