Differential Pressure Regulator
Differential Pressure Regulator

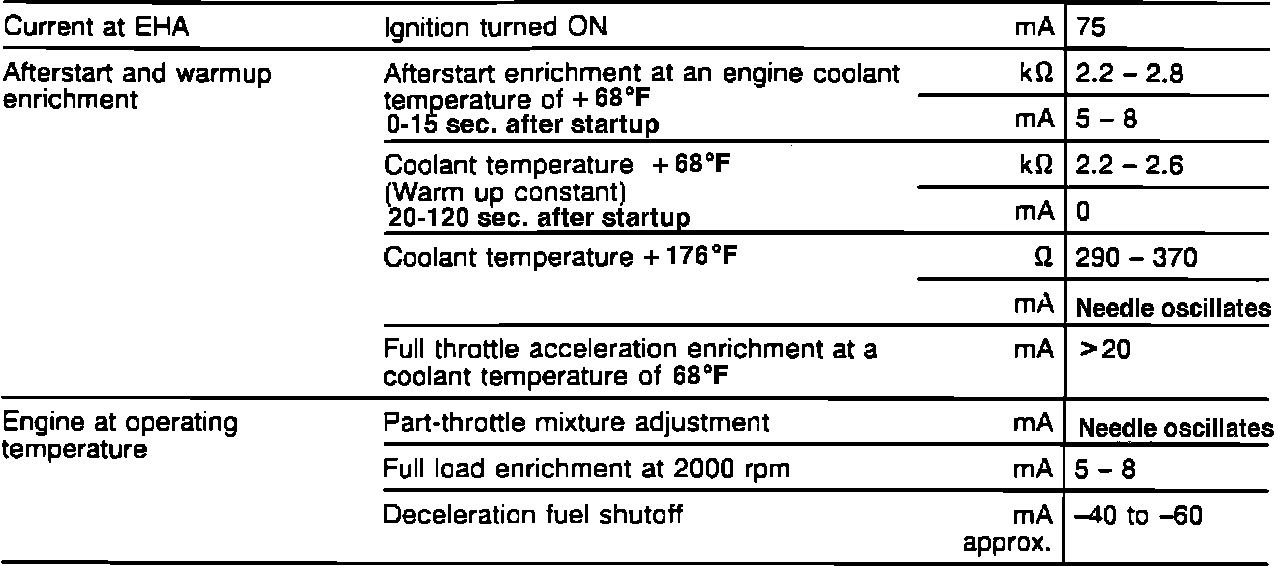

Electro-Hydraulic Actuator Test Data:
