Central Locking (CL)
Central Locking (CL)

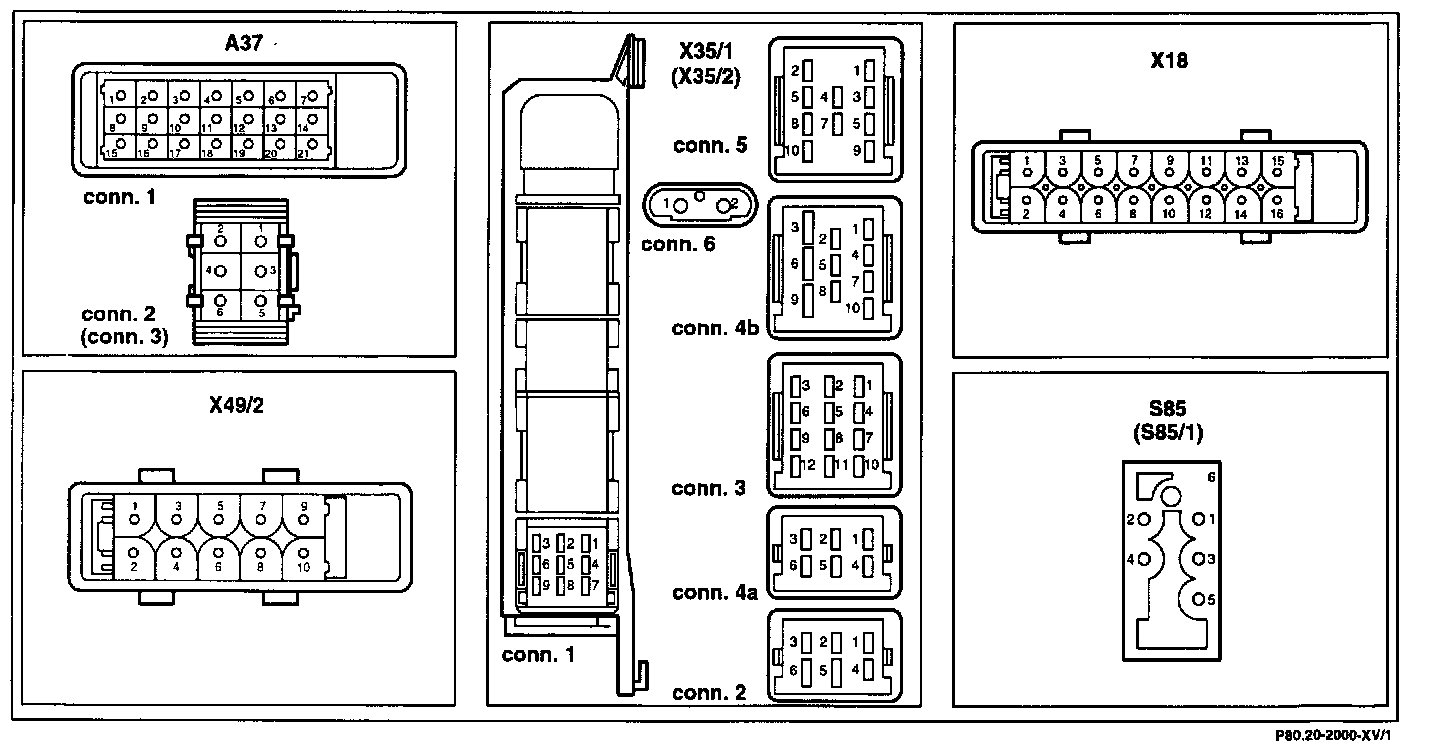

Connector Assignment:

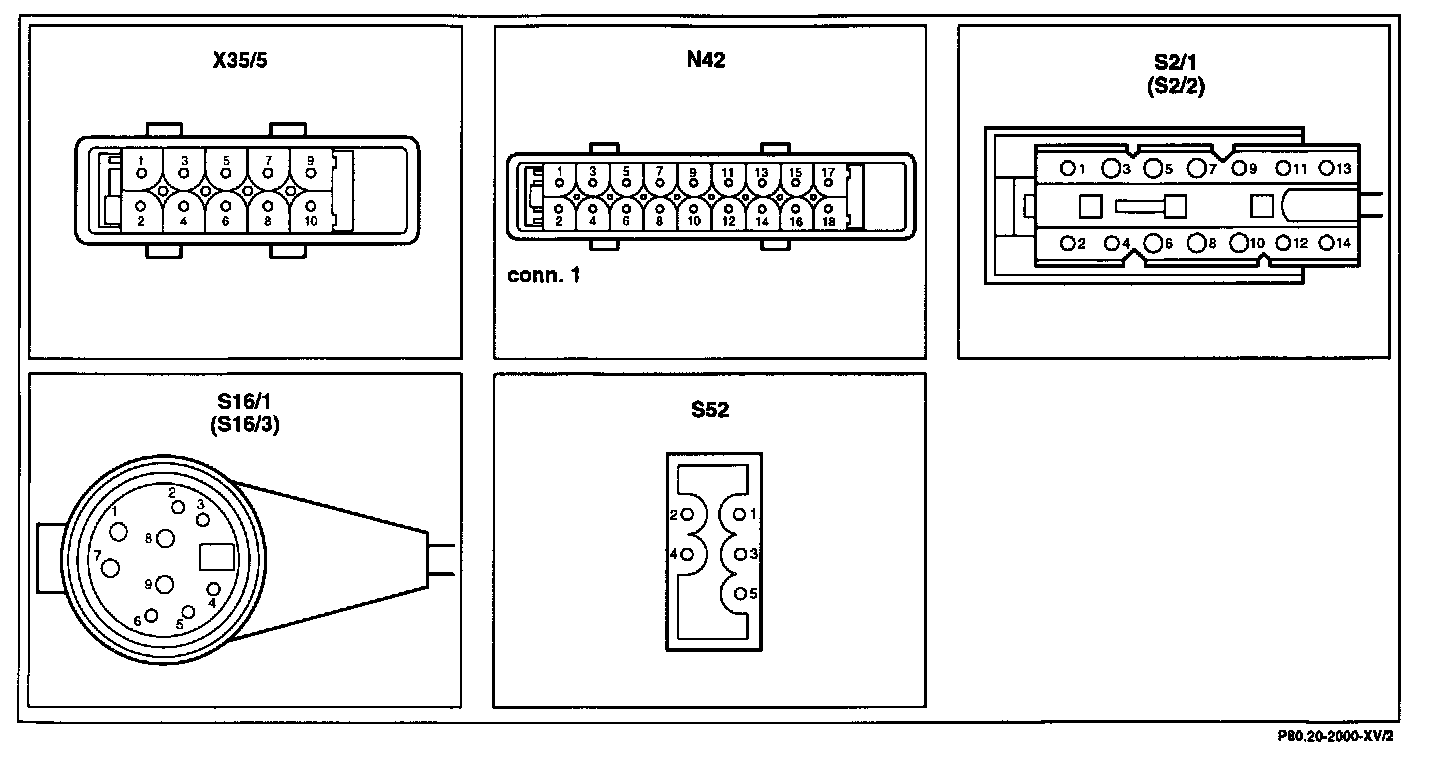

Connector Assignment:

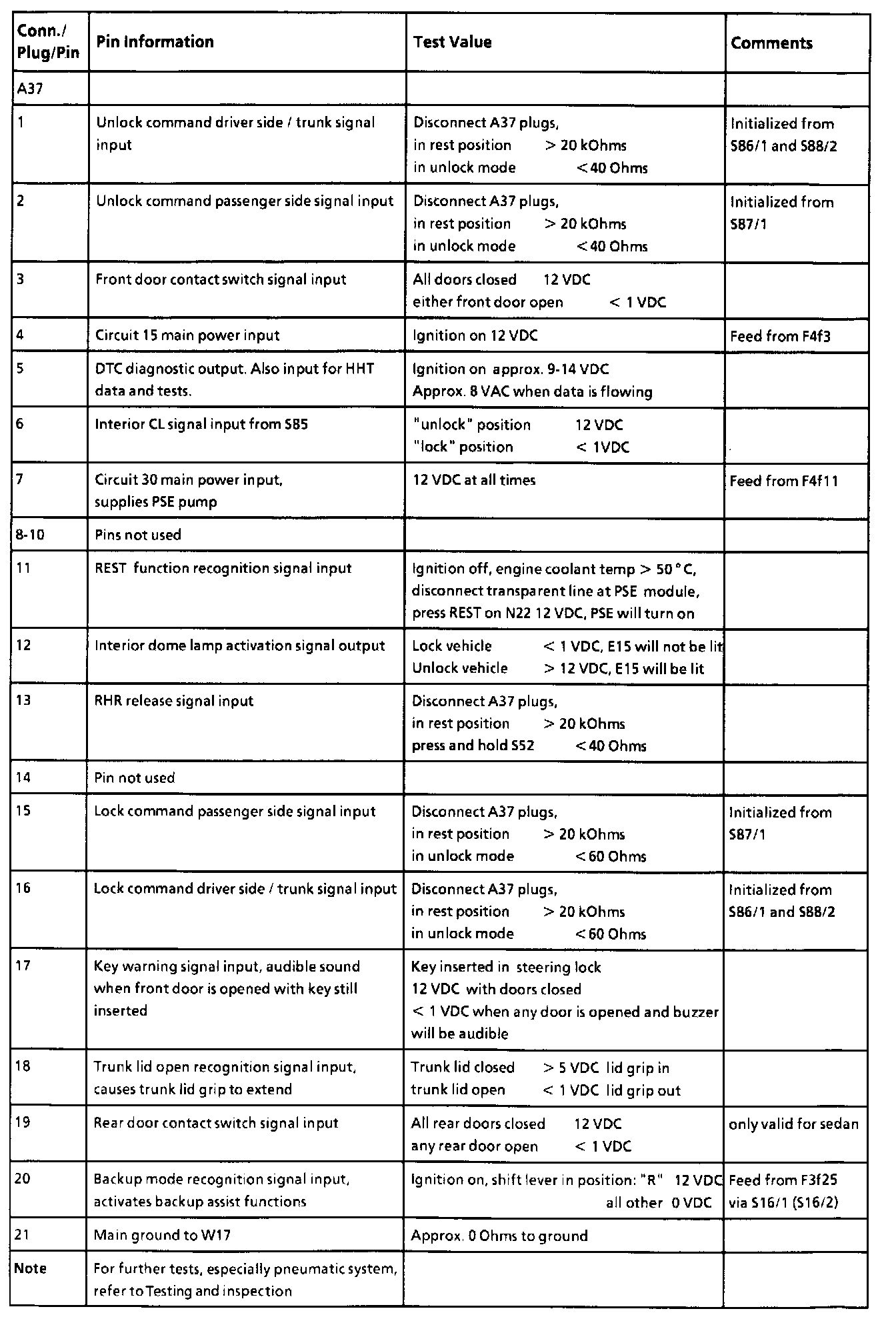

Pin Information:
All values measured to ground unless otherwise noted
