No On/Off Ratio Output, or Constant On/Off Ratio (0% or 100%)

/�:





INCORRECT VOLTAGE AT CIS-E CONTROL UNIT

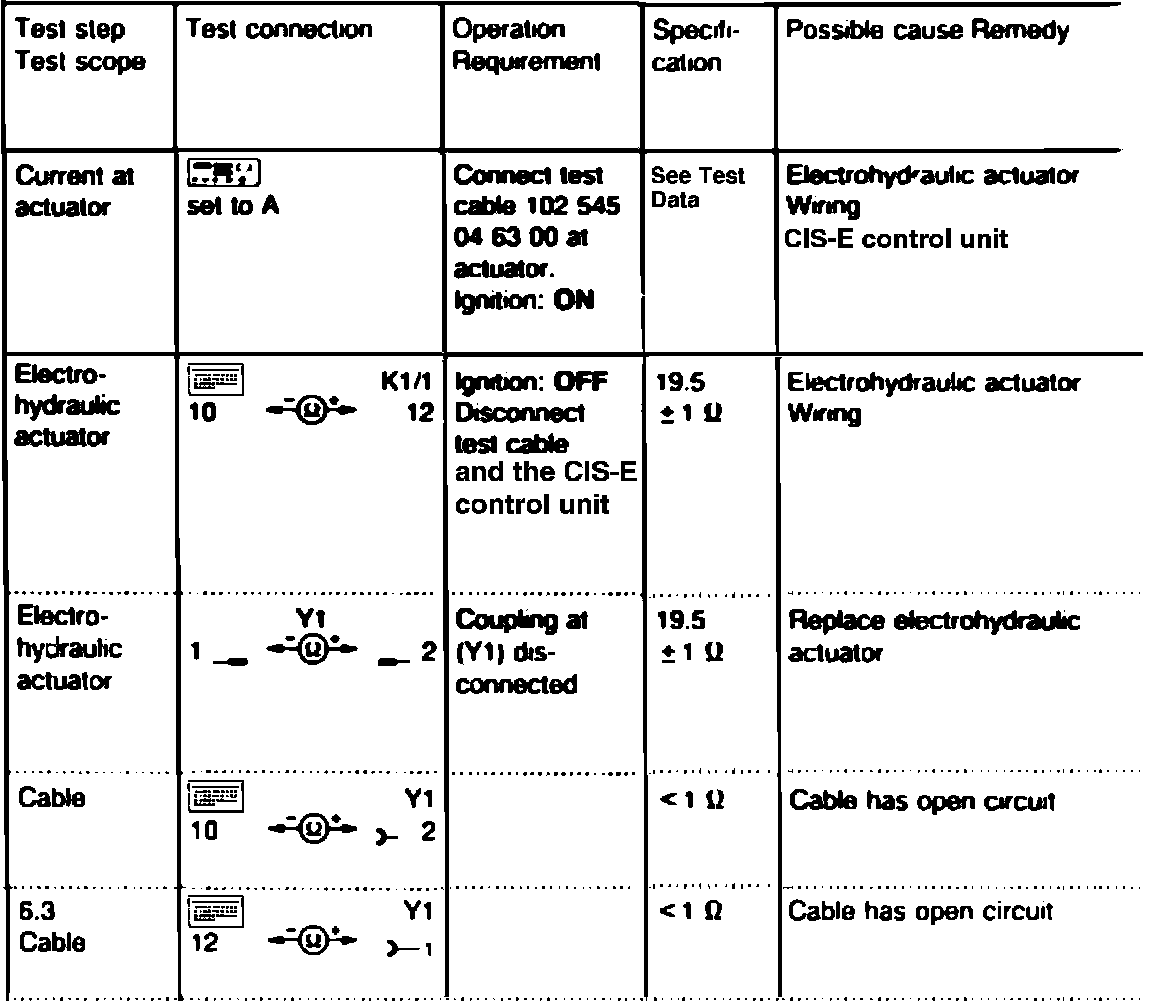

Electro-Hydraulic Actuator Testing:





UNEXPECTED CURRENT READING AT ELECTRO-HYDRAULIC ACTUATOR
