Instrument Cluster and Center Console Illumination
Instrument Cluster and Center Console Illumination

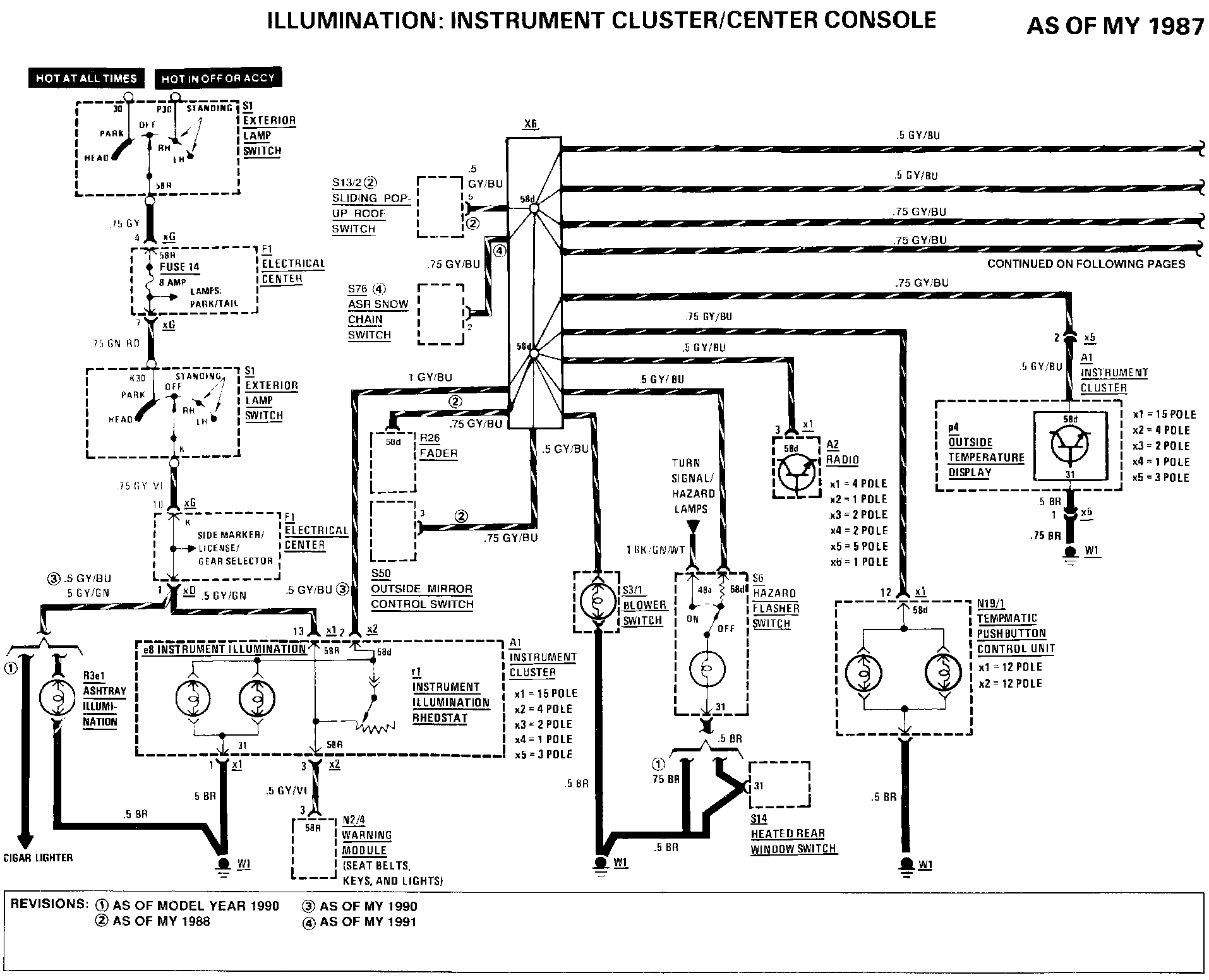

Instrument Cluster/Center Console Illumination:
Instrument Cluster/Center Console Illumination:
