Pressure Retention

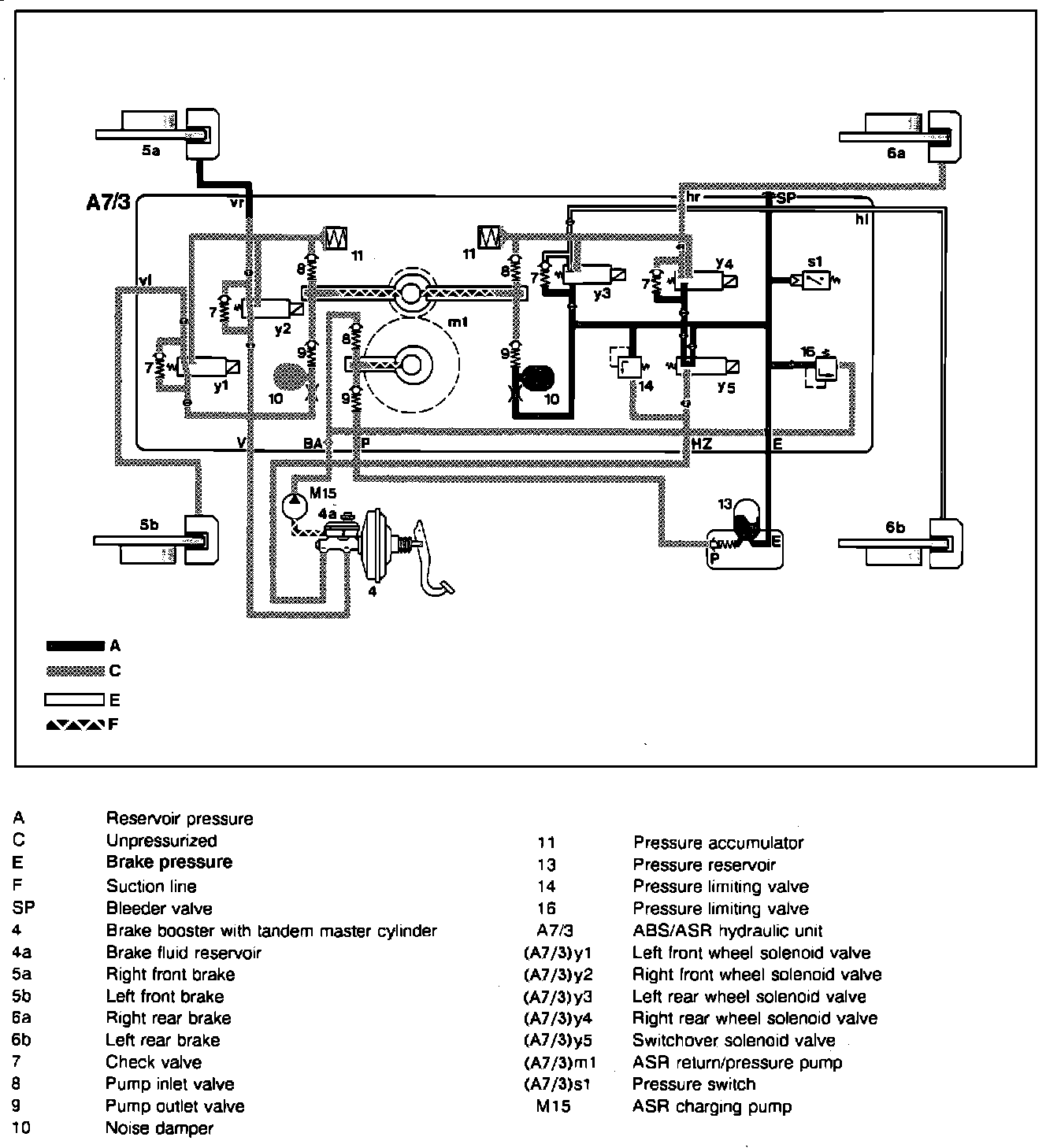

Presure Retention:
Left rear wheel solenoid valve (y3) switches to position "1." All connections at the solenoid valve are closed. Brake pressure remains constant in the
brake caliper
.
