Required Test Equipment

ABS/ASR Hydraulic Test Tools:

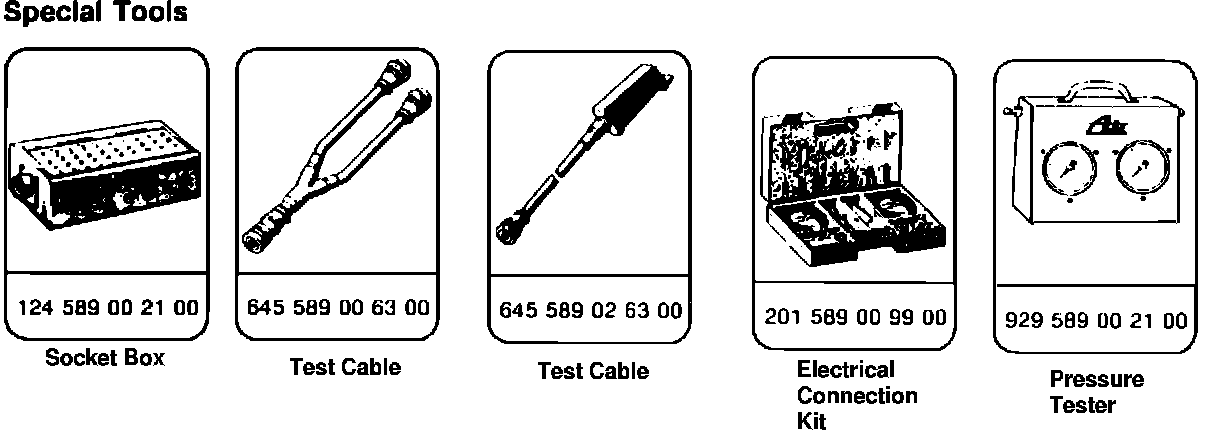

SPECIAL TOOLS

CAUTION: TEST STEP 1 only - unplug the ABS/ASR control unit with the ignition turned OFF.

Test Equipment Connection:

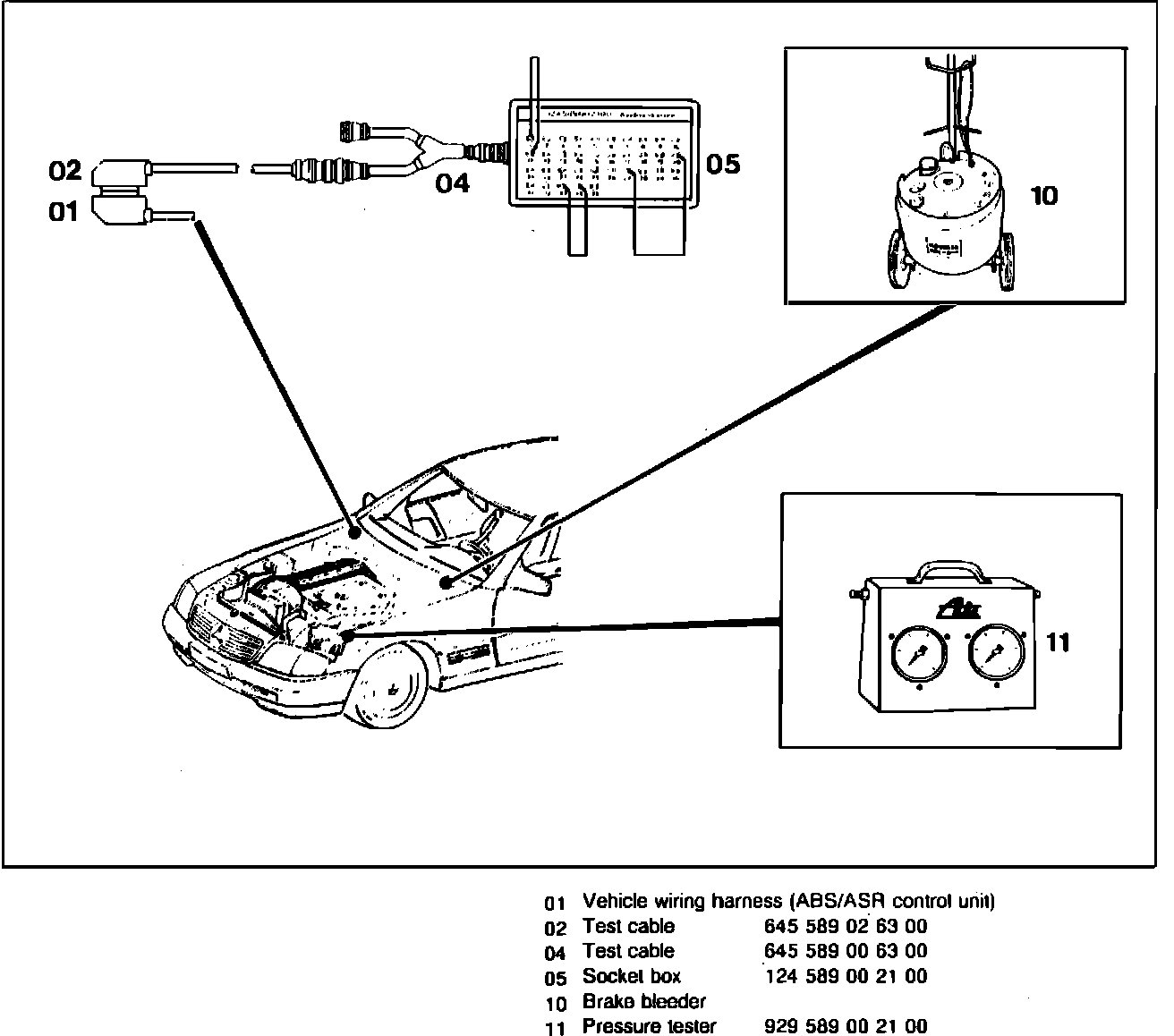

CONNECTING THE TEST EQUIPMENT

Pressure Test Conneciton:

TEST STEPS 1.0, 2.0 AND 3.0

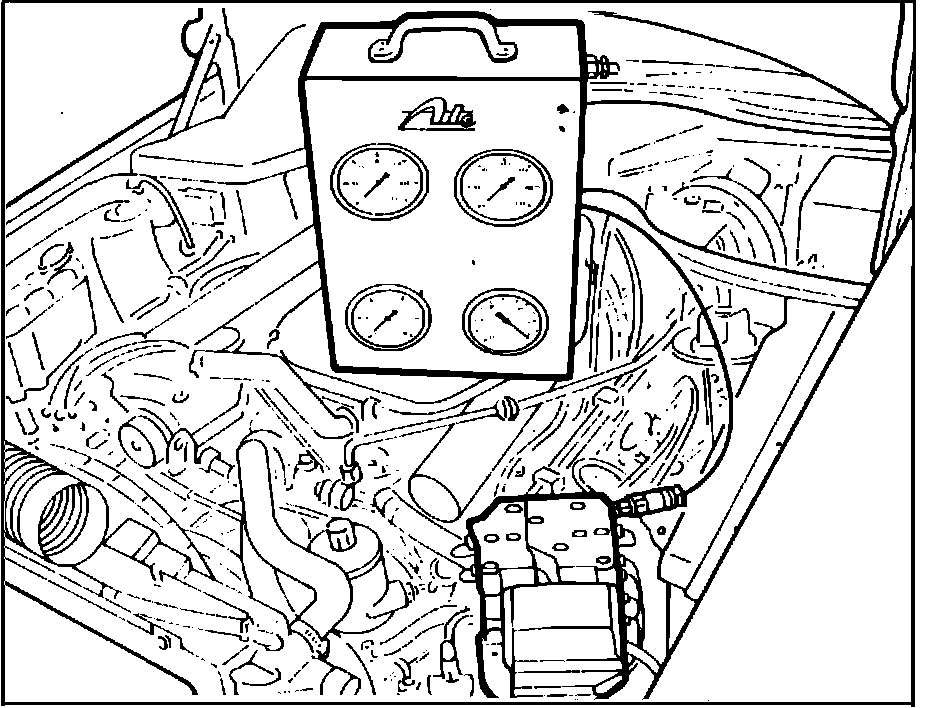

Connect pressure tester to the ABS/ASR hydraulic unit connection SP.

WARNING: Use only brake system pressure tester. Pressure testers for other systems may contaminate the brake fluid causing damage in the brake system.
