CIS-E Control Unit

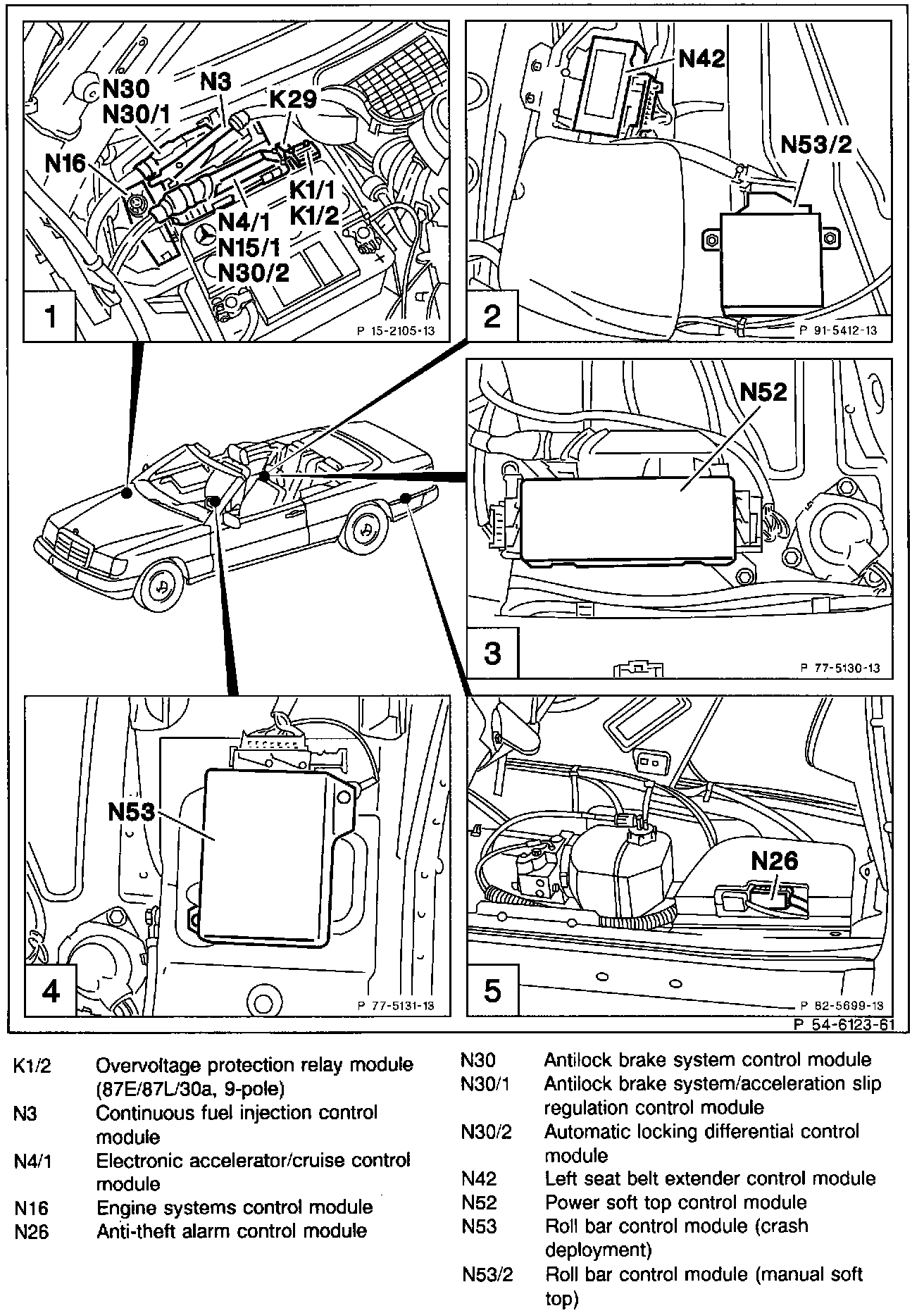

Relay And Control Unit Locations (Figure 1 To 5):
Figure
1
Component Name
Continuous fuel injection control module
Component ID
N3
