Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1993
>>
300SE (140.032) L6-3.2L (104.990)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>

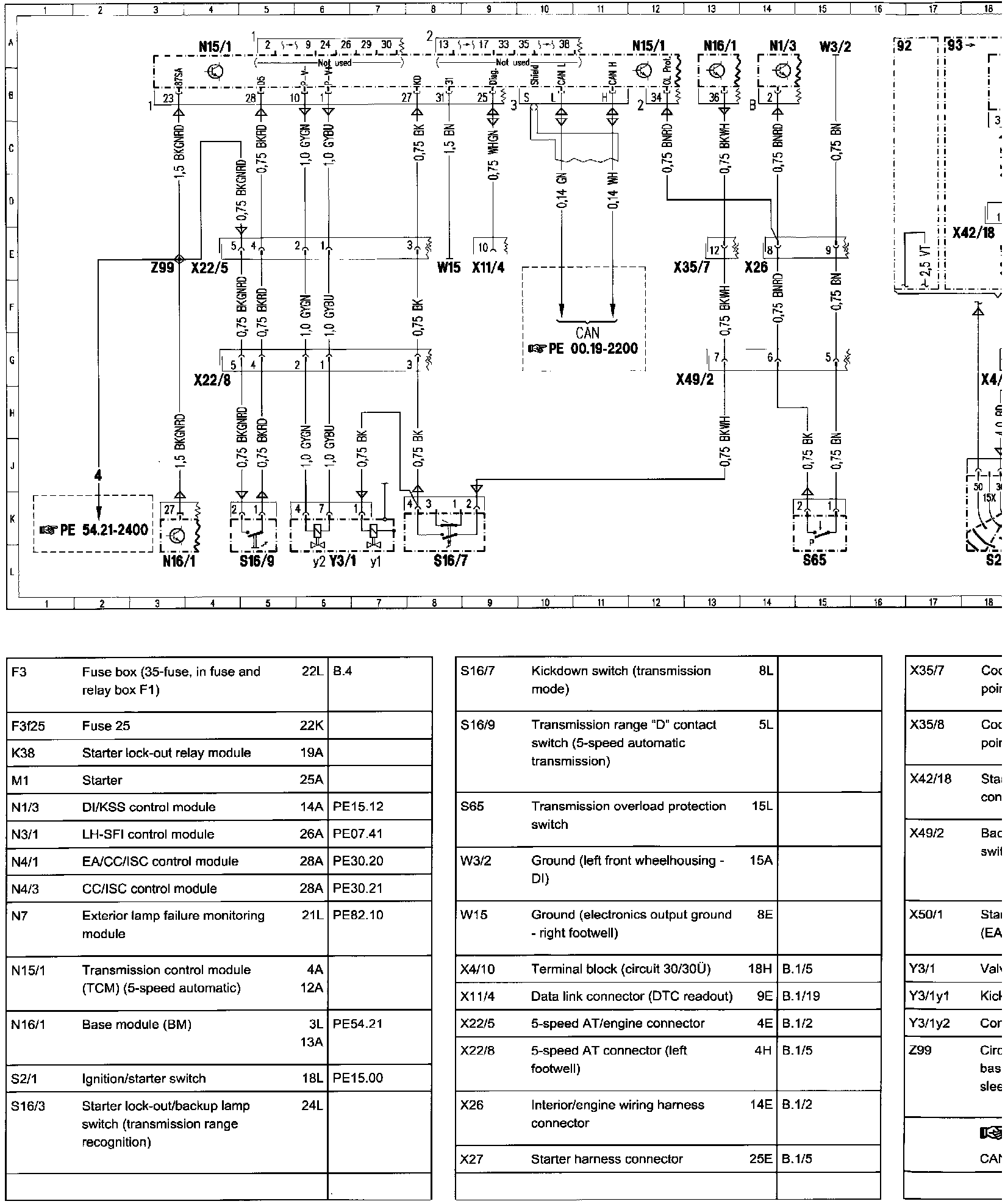

Automatic Transmission (AT) PE27.19-U-2000XW
Automatic Transmission (AT) PE27.19-U-2000XW
�:
