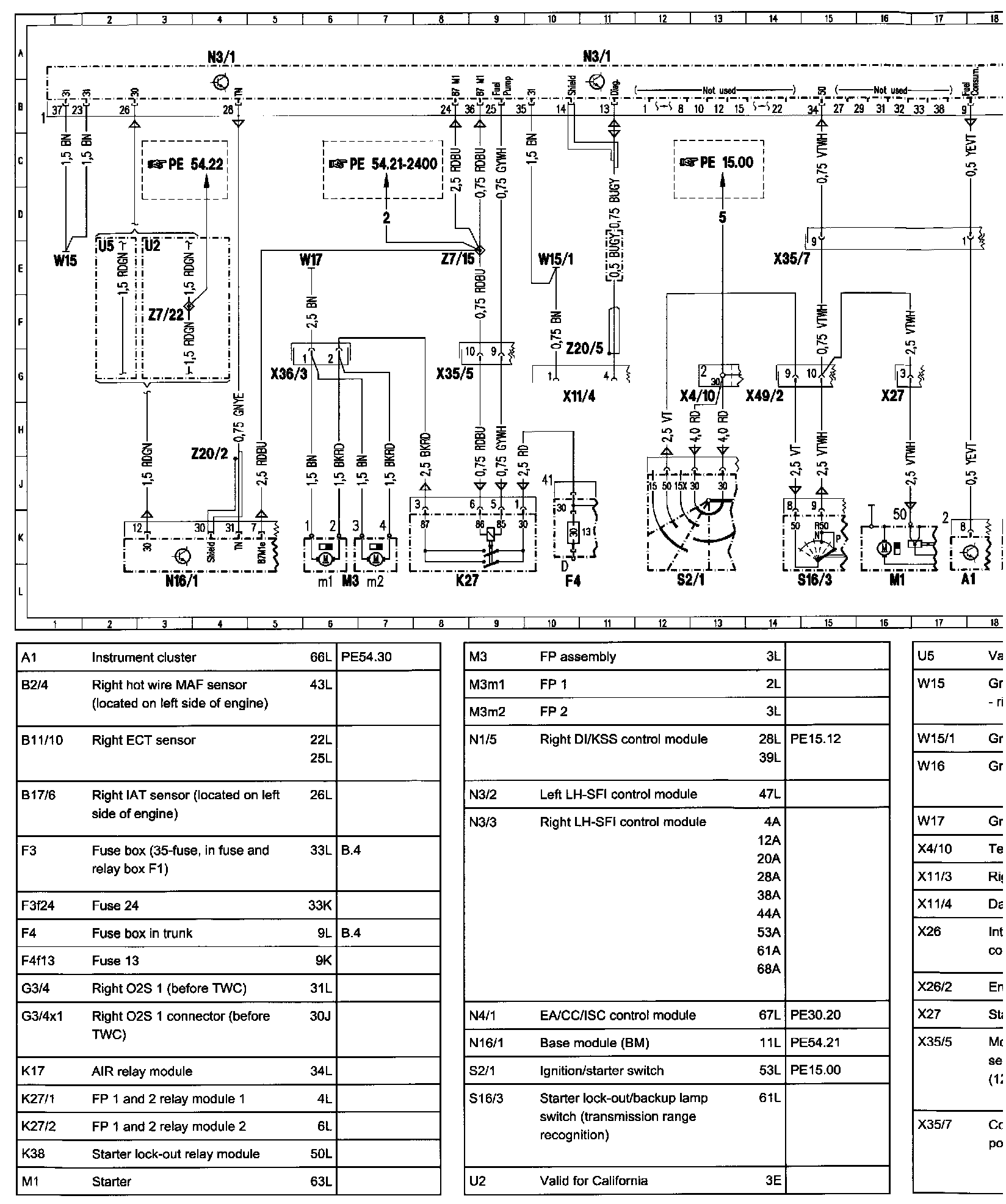

LH-SFI Fuel Injection/Ignition System PE07.41-U-2000XD
LH-SFI Fuel Injection/Ignition System PE07.41-U-2000XD
�R @� � PE07.41-U-2000XD - LH SFI:
