Air Cleaner Housing: Service and Repair

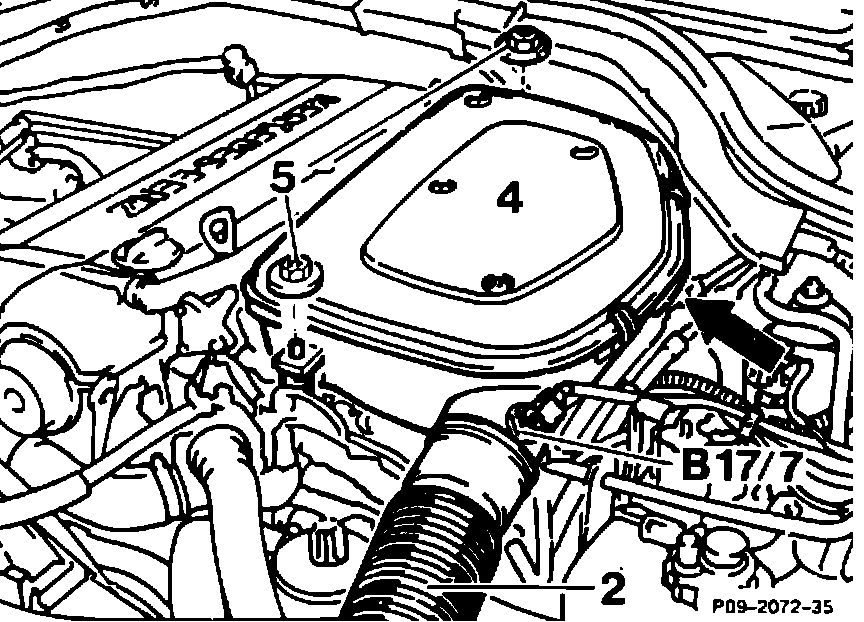

Air Filter Housing:

1. Remove the temperature sensor (B17/7) connector from the air filter housing (4).
2. Remove the intake air hose (2).
3. Remove air filter housing nuts (5).
4. Remove air filter housing.

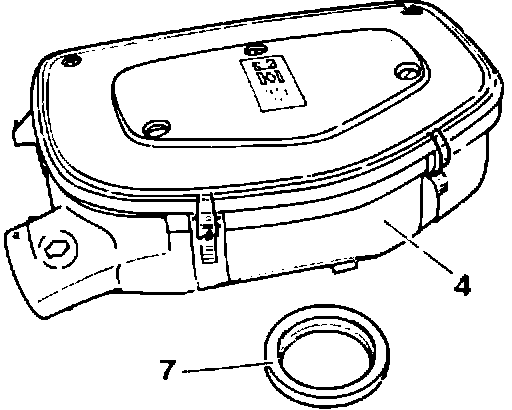

Air Filter Housing And Gasket:

5. Install in reverse order. Ensure rubber seal (7) between air filter housing (4) and air mass meter is in good condition and correctly installed.
