All LH SFI Engines

Applicable to Engine:
104.990 starting 01/91

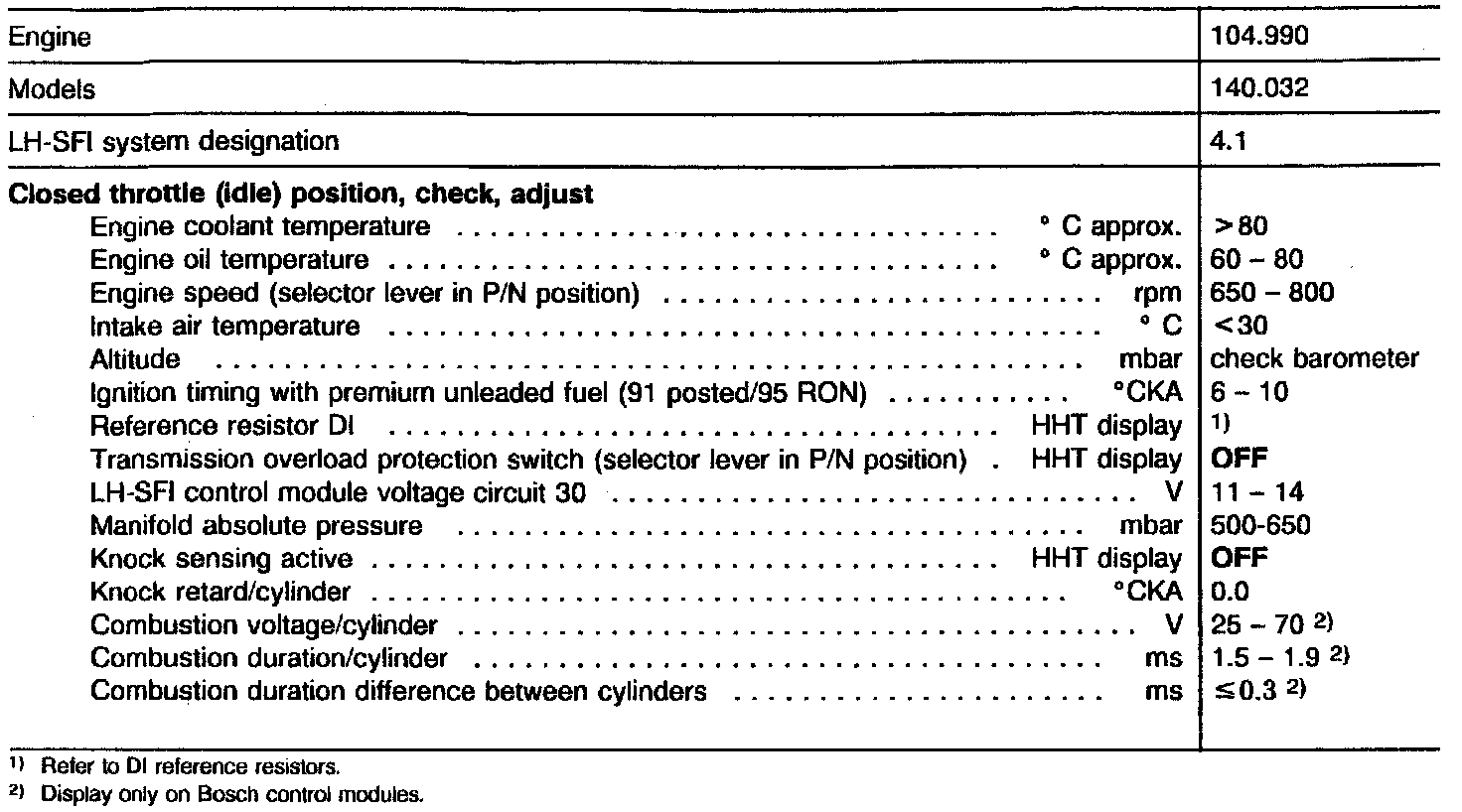

Closed Throttle Position (CTP), Chart 1 of 3

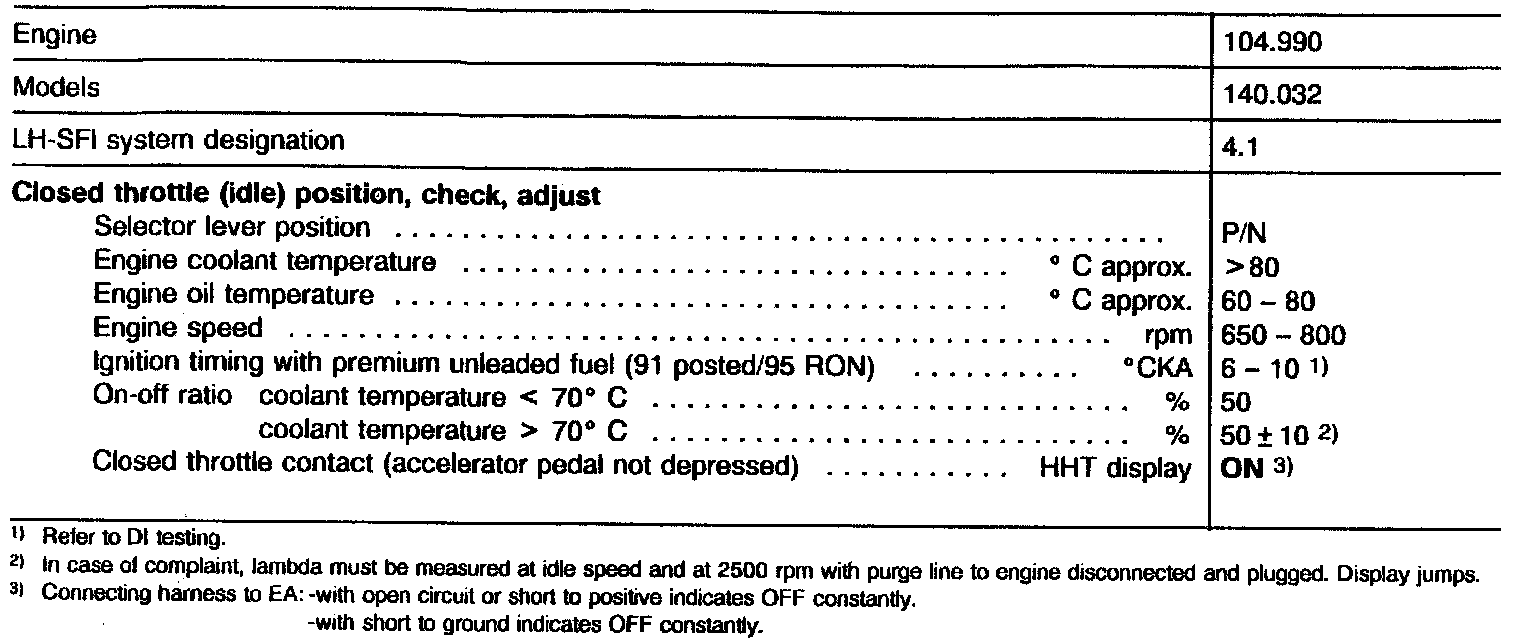

Closed Throttle Position (CTP), Chart 2 of 3

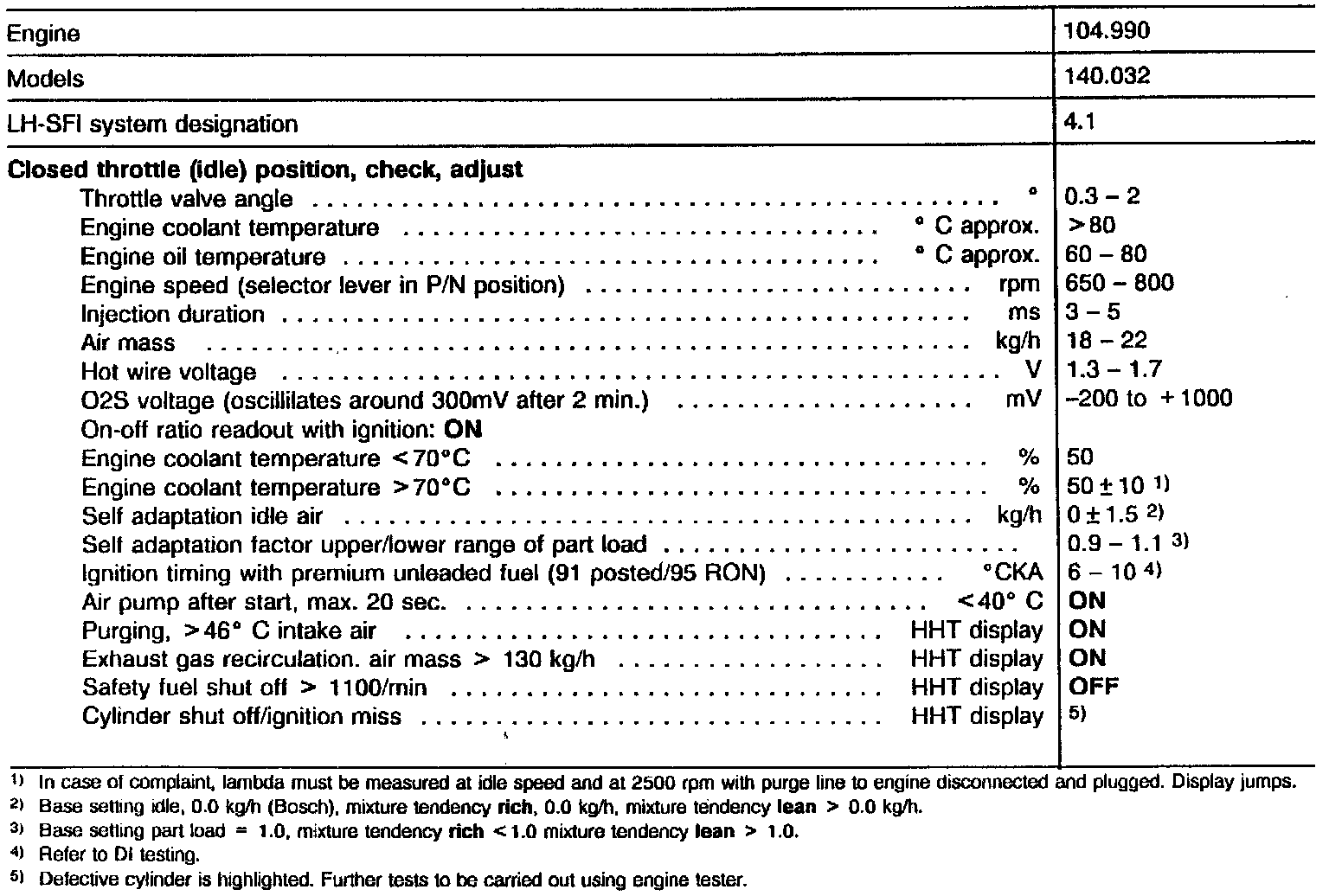

Closed Throttle Position (CTP), Chart 3 of 3

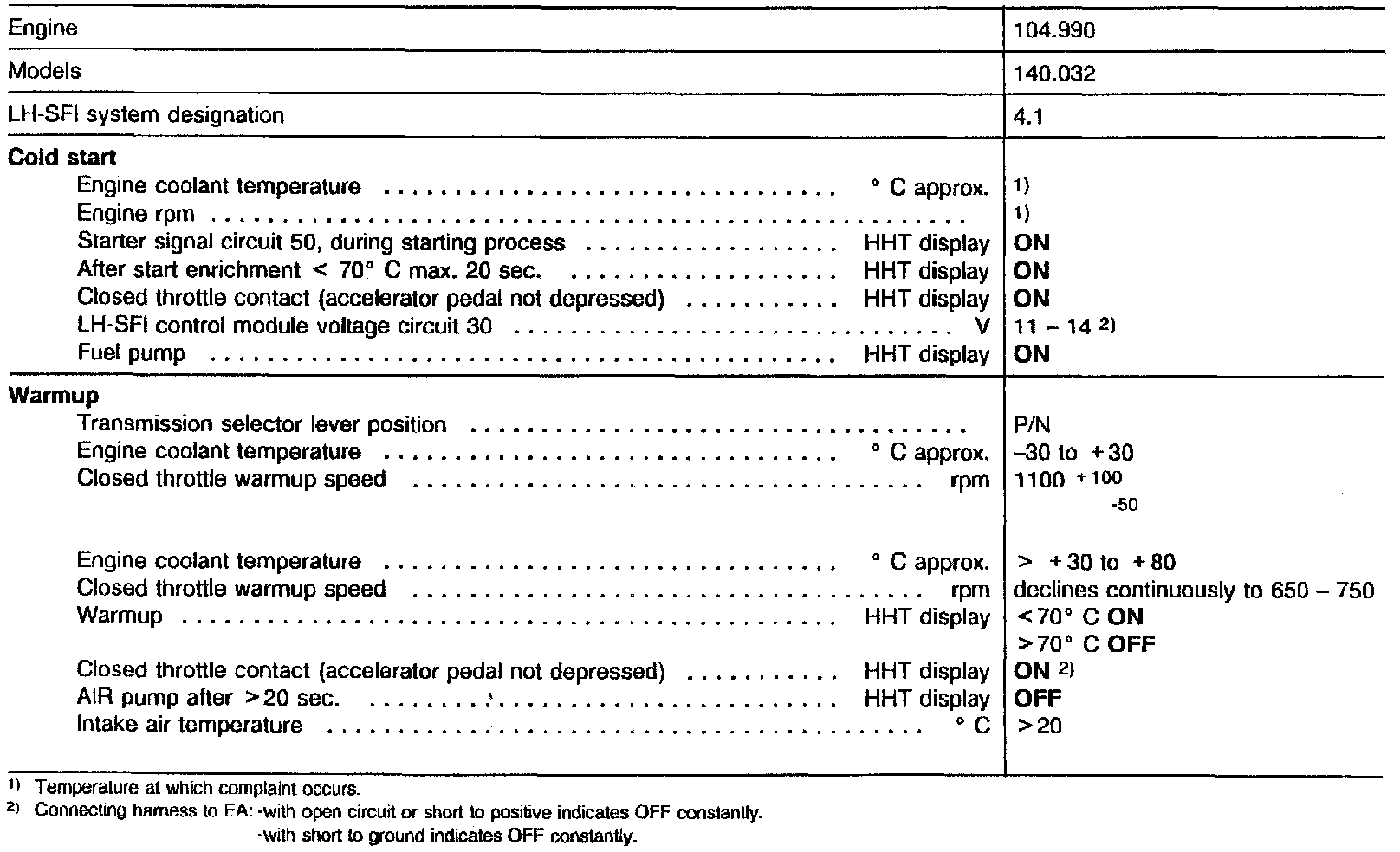

Cold Start, Warm Up





Engine Performance





Reference Resister (DI)
