Engine 119 LH With AT 4, ASR

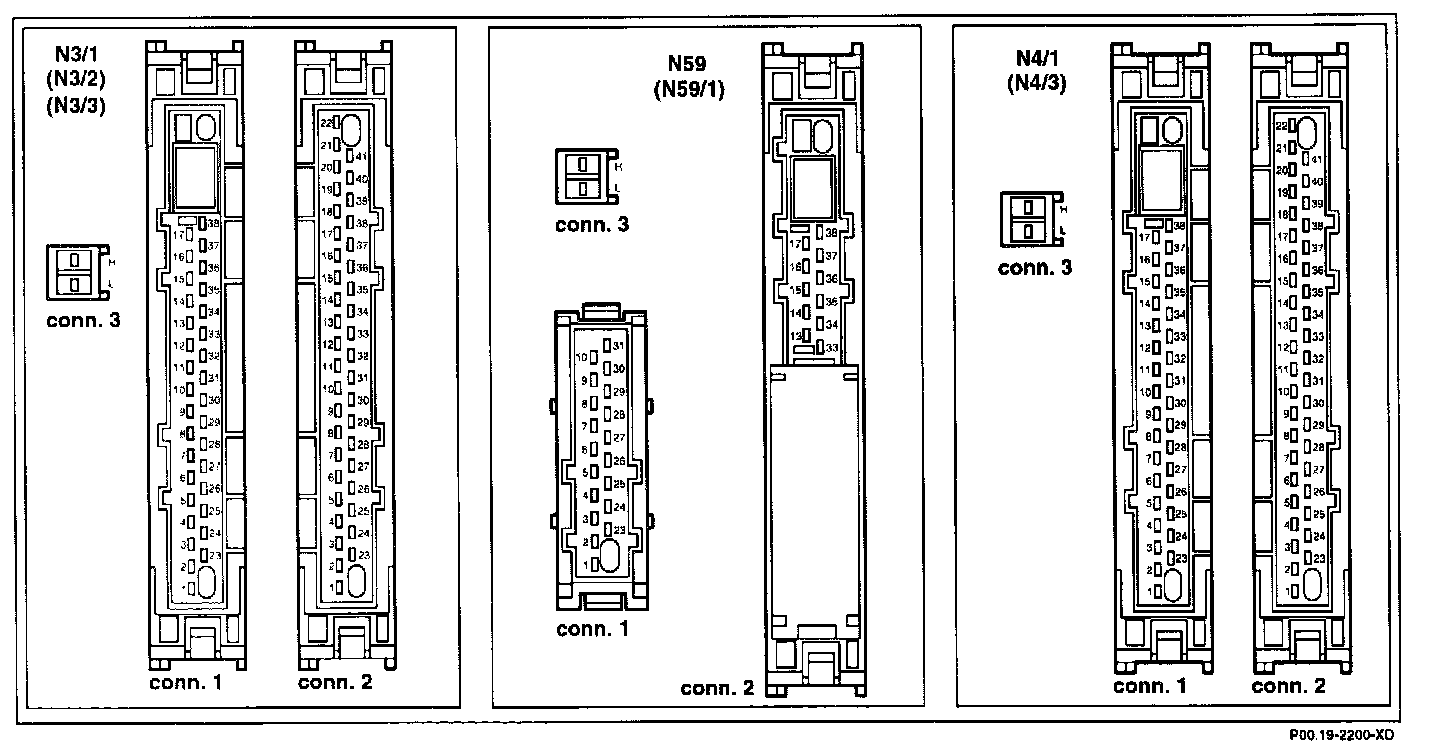

Connector Assignment:

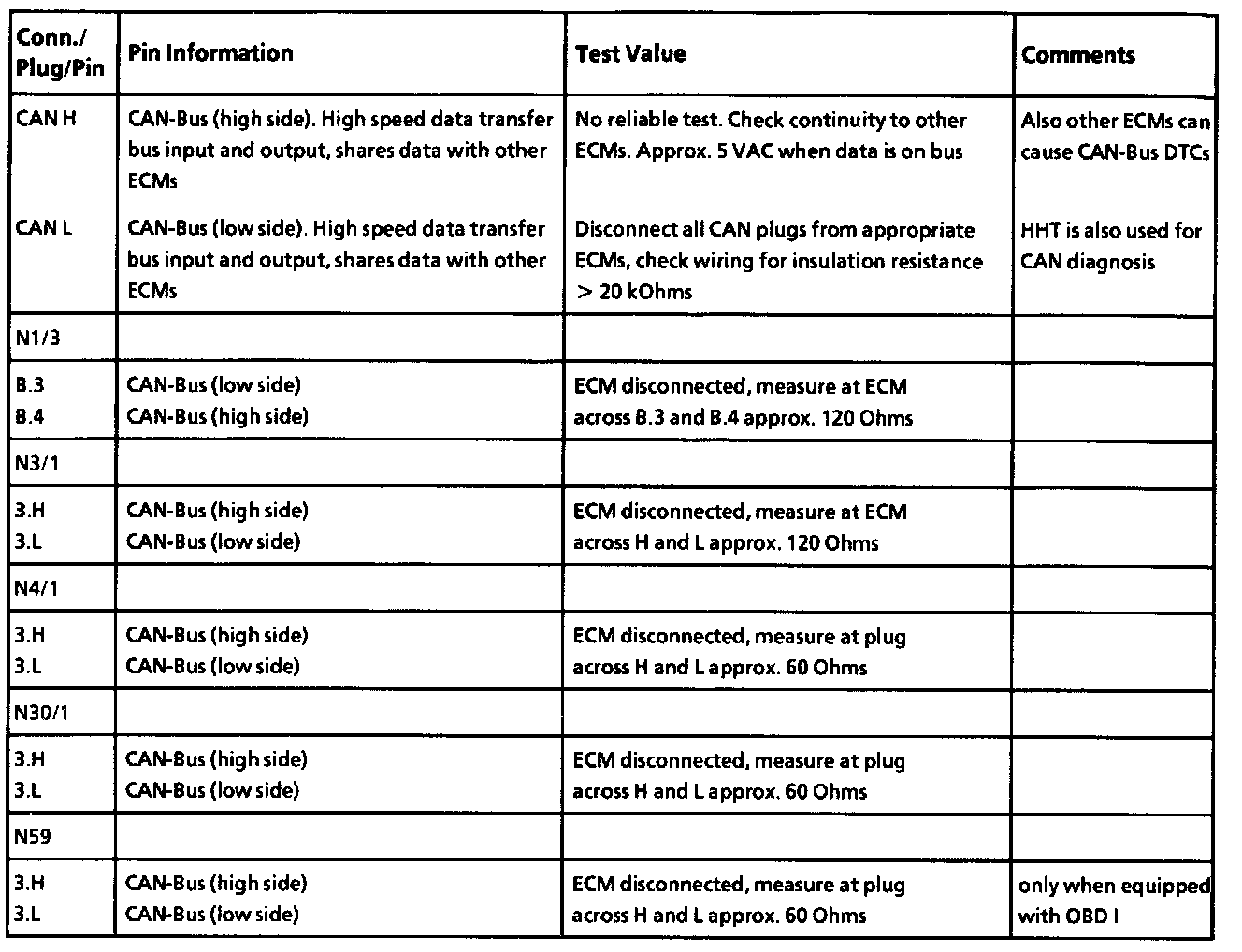

Pin Information:






All values measured to ground unless otherwise noted
