Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1993
>>
400SEL (140.043) V8-4.2L (119.971)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>

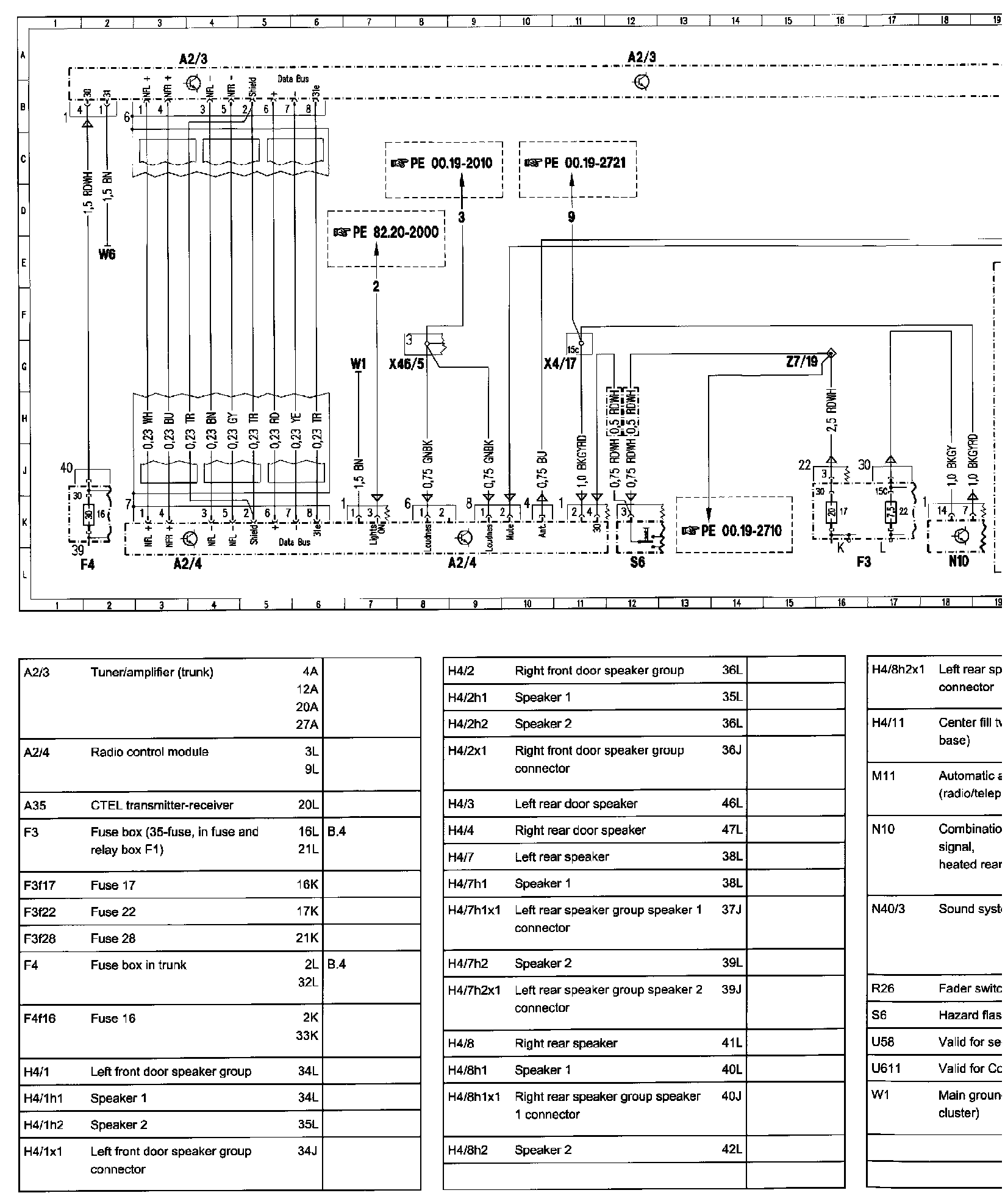

Two Piece Radio W/Bose Beta Sound System - PE82.60-U-2000-XX
Two Piece Radio W/Bose Beta Sound System - PE82.60-U-2000-XX
Q �<��<��<PE82.60-U-2000-XX:
