Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1993
>>
400SEL (140.043) V8-4.2L (119.971)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>
Exterior Lights PE82.10-U-2000XS
Exterior Lights PE82.10-U-2000XS

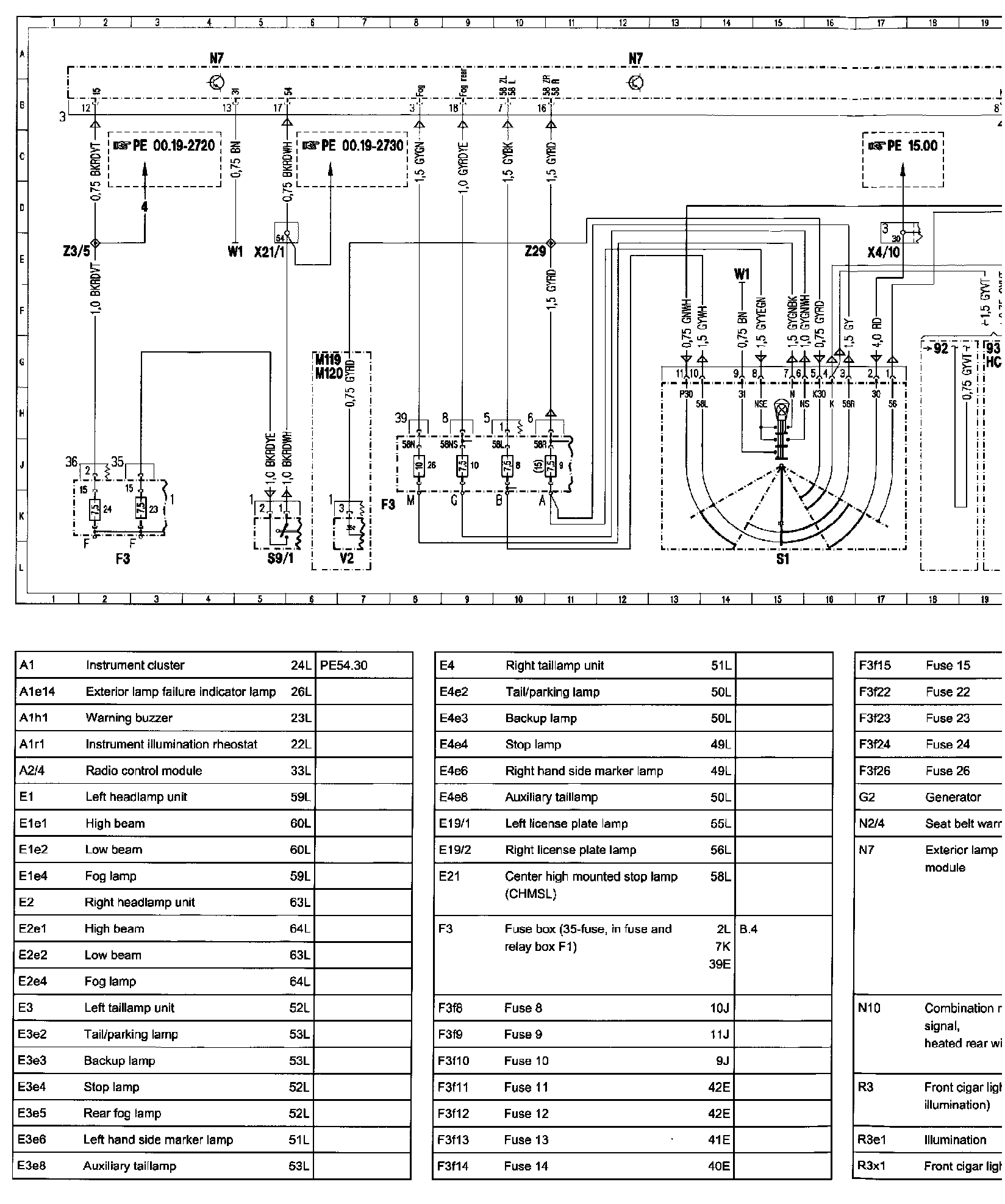

Q$�P���P��PPE82.10-U-2000-XS - Sedan - Without Daytime Running Lamps (USA):
