Home >> Mercedes Benz >> 1993 >> 400SEL (140.043) V8-4.2L (119.971) >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> F3 - Fuse Box (35 Fuse, In Fuse and Relay Box F1) >> Connection Survey of Consumers

Connection Survey of Consumers




Fuses 7 - 15:






Fuses 16 - 22:

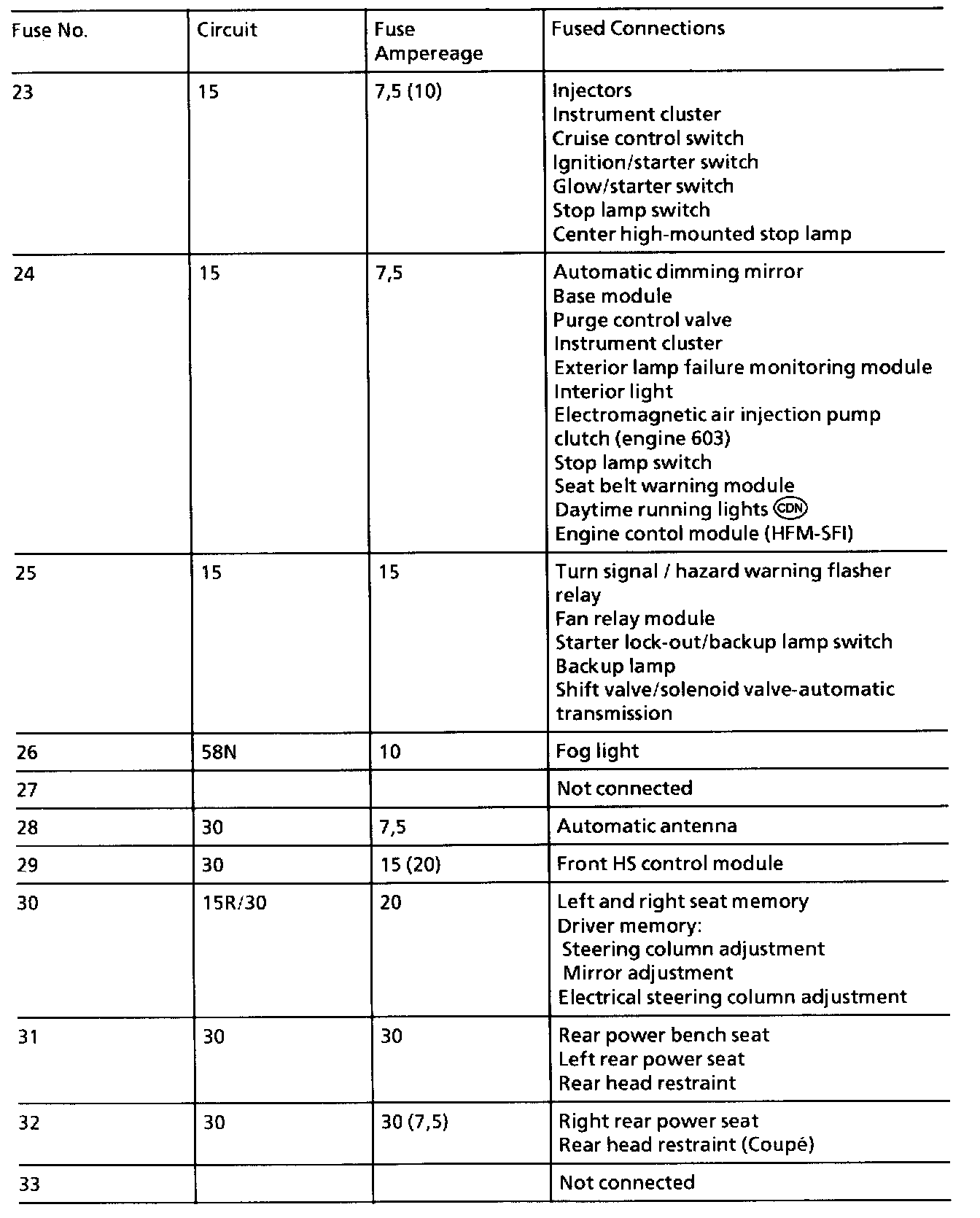

Fuses 23 - 33:






Fuses 34 - 41:
