System Diagram

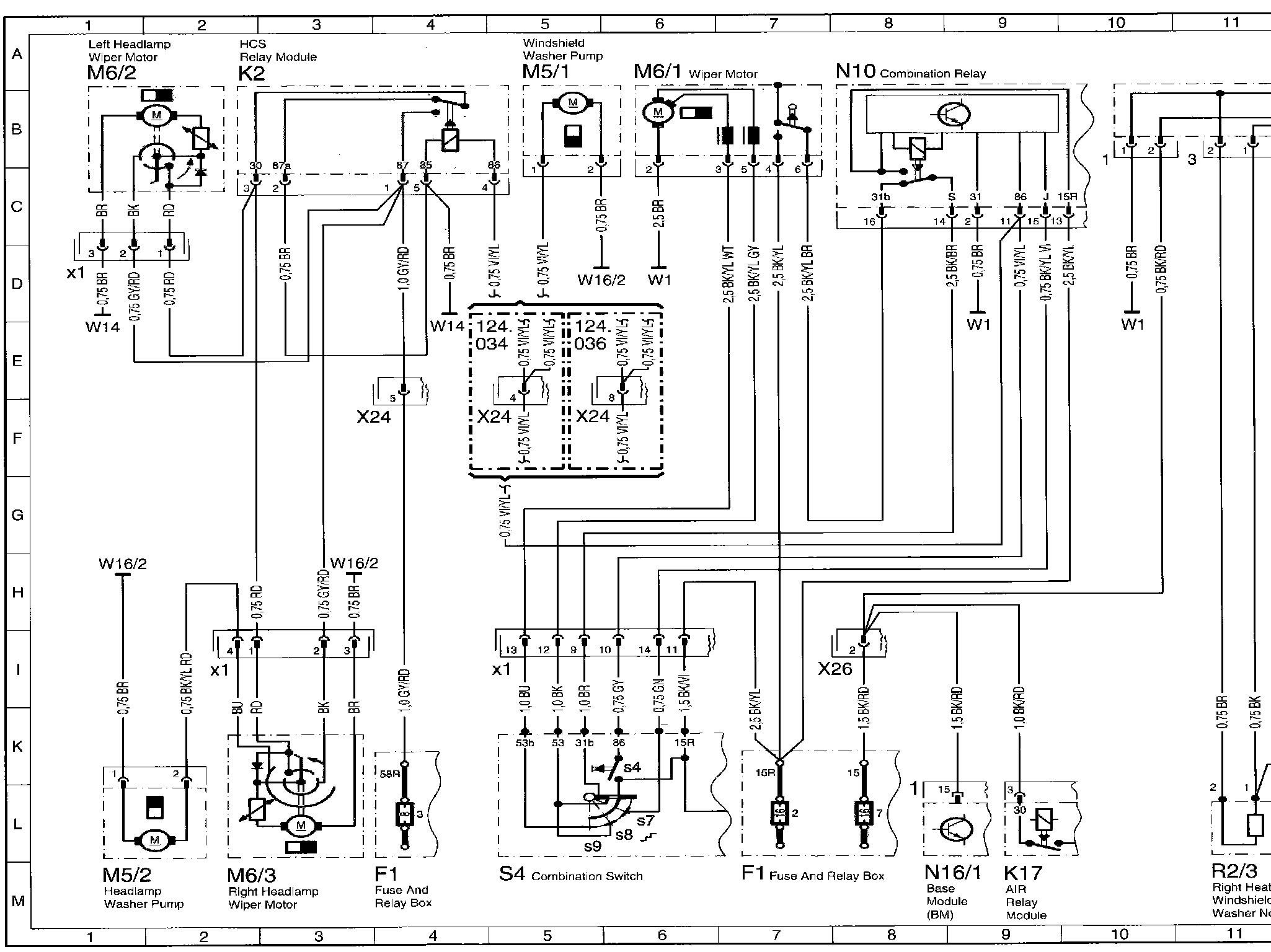

�ůQWindshield/Headlamp Cleaning System:

Wiring Diagram

Windshield/Headlamp Cleaning System - Component Index:

Component Index
