Removing and Installing Exhaust System Downstream of Flange

Model 124.036 illustrated

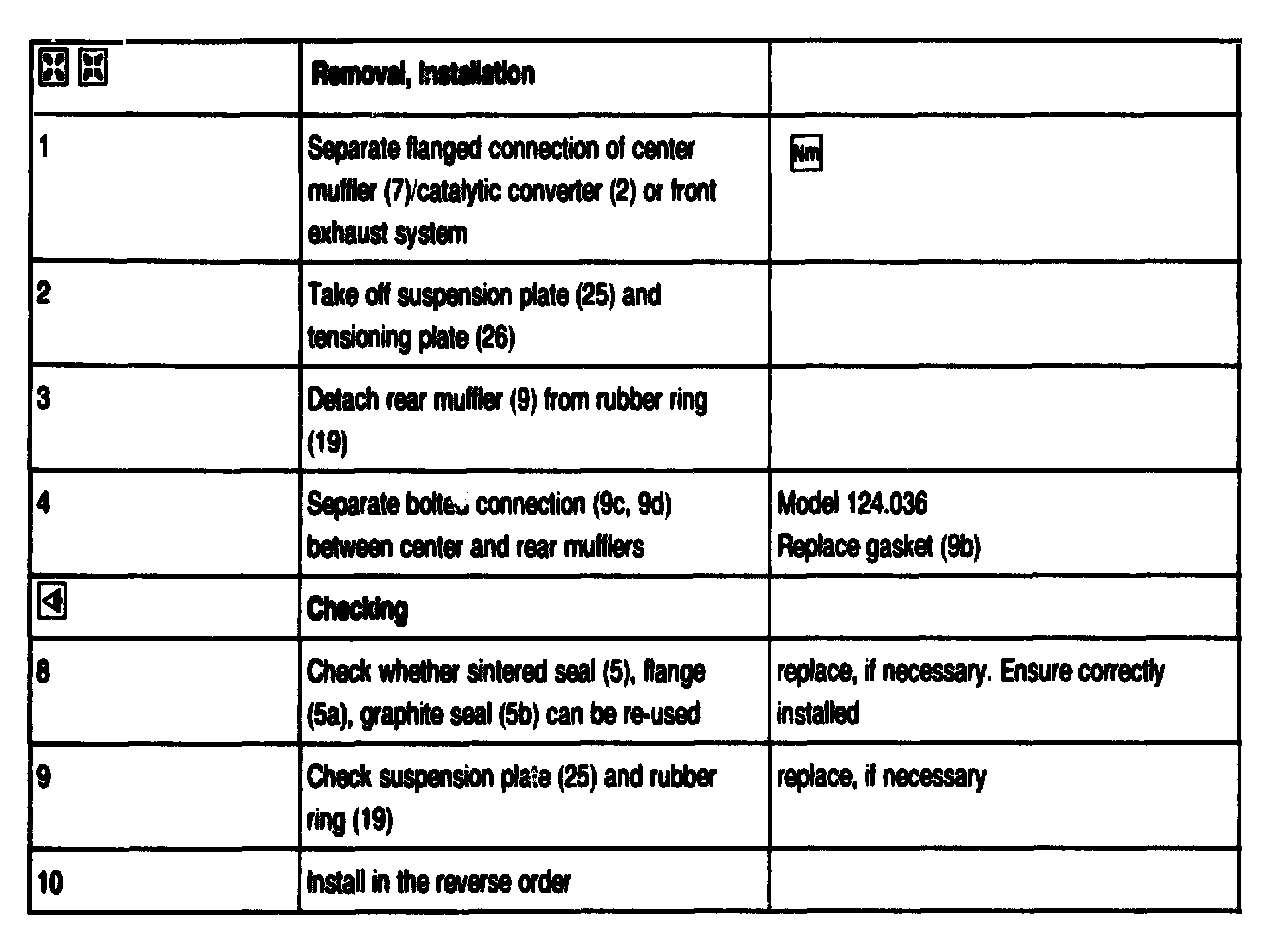

Removal, Installation

References (BA), Exhaust system

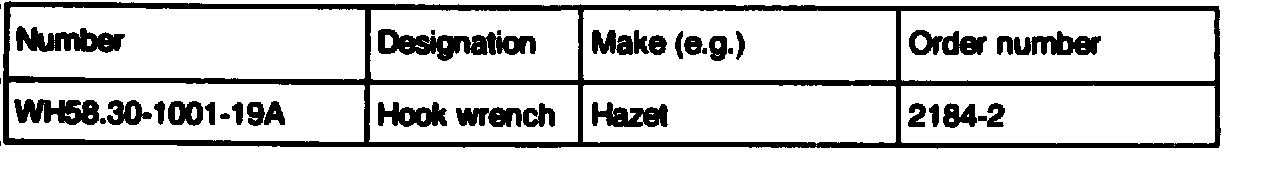

References (WH), Commercially available tools
