Instrument Cluster Part 1 of 2

Wiring Diagram

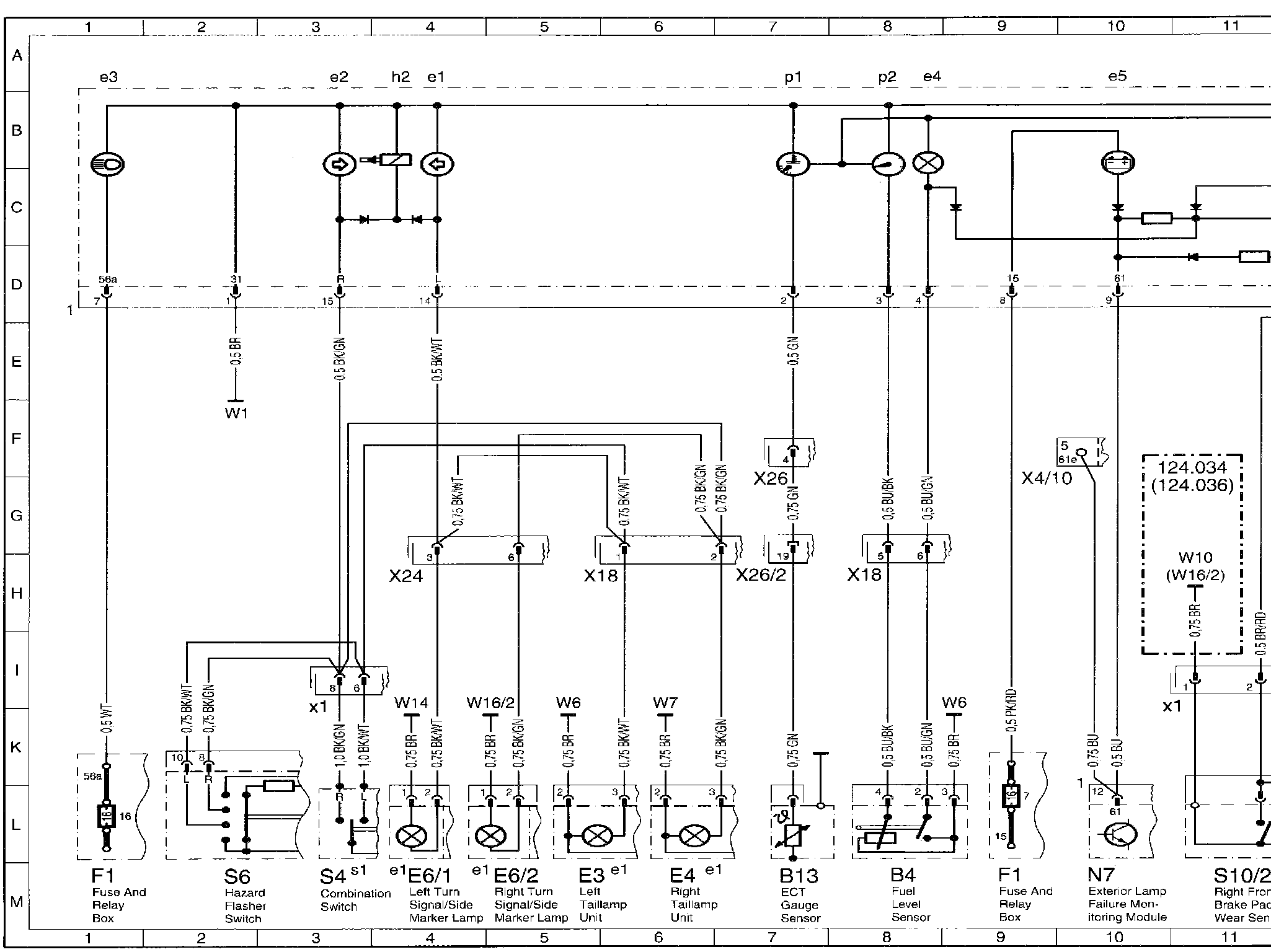

,��O,��OQT�OInstrument Cluster (Part 1 Of 2):

Component Index

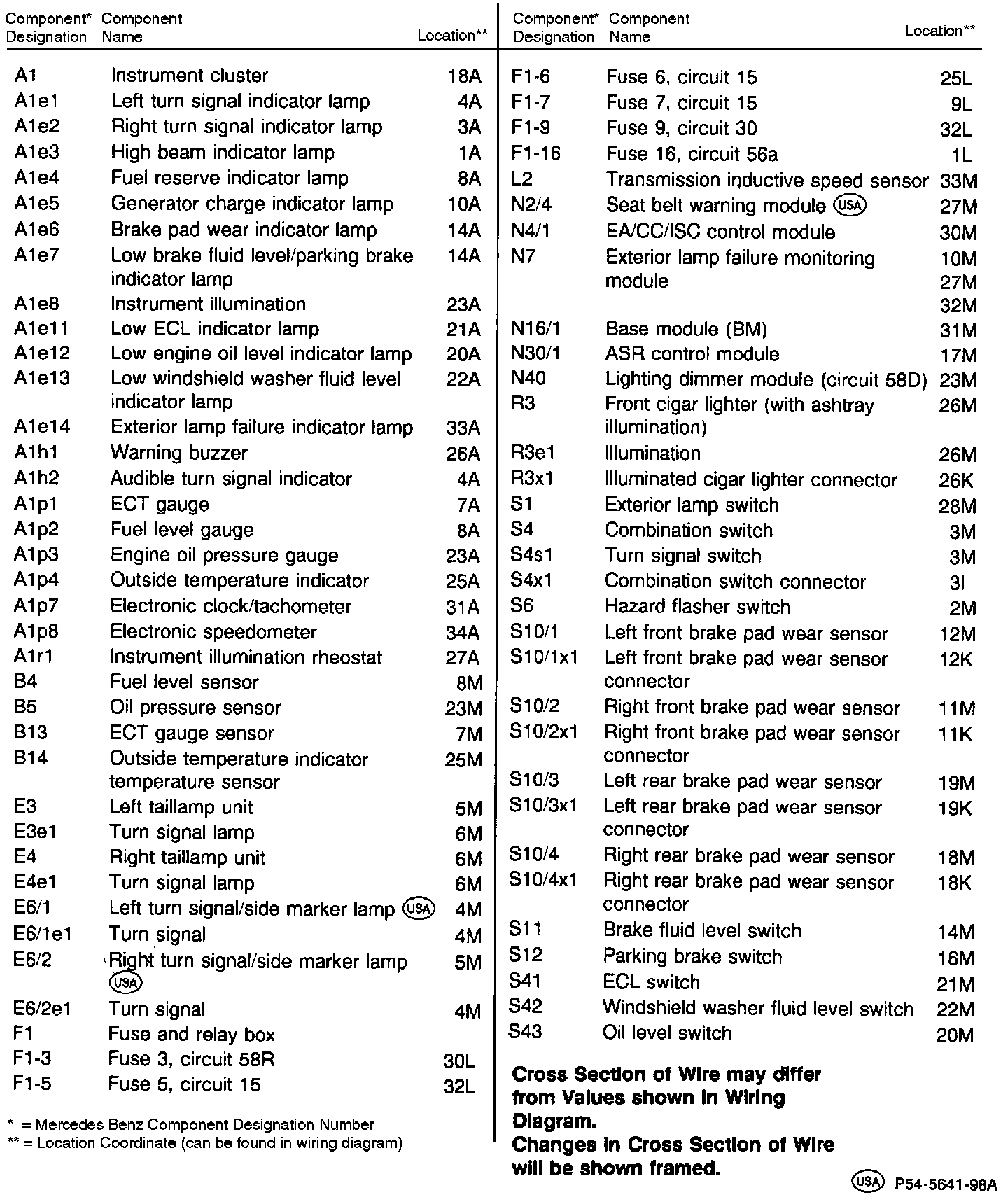

Instrument Cluster - Component Index (Part 1 Of 2):

Instrument Cluster - Component Index (Part 2 Of 2):
