Home >> Mercedes Benz >> 1993 >> 500E (124.036) V8-5.0L (119.974) >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Diagnostic Module

Diagnostic Module

Diagnostic Module (OBD I):

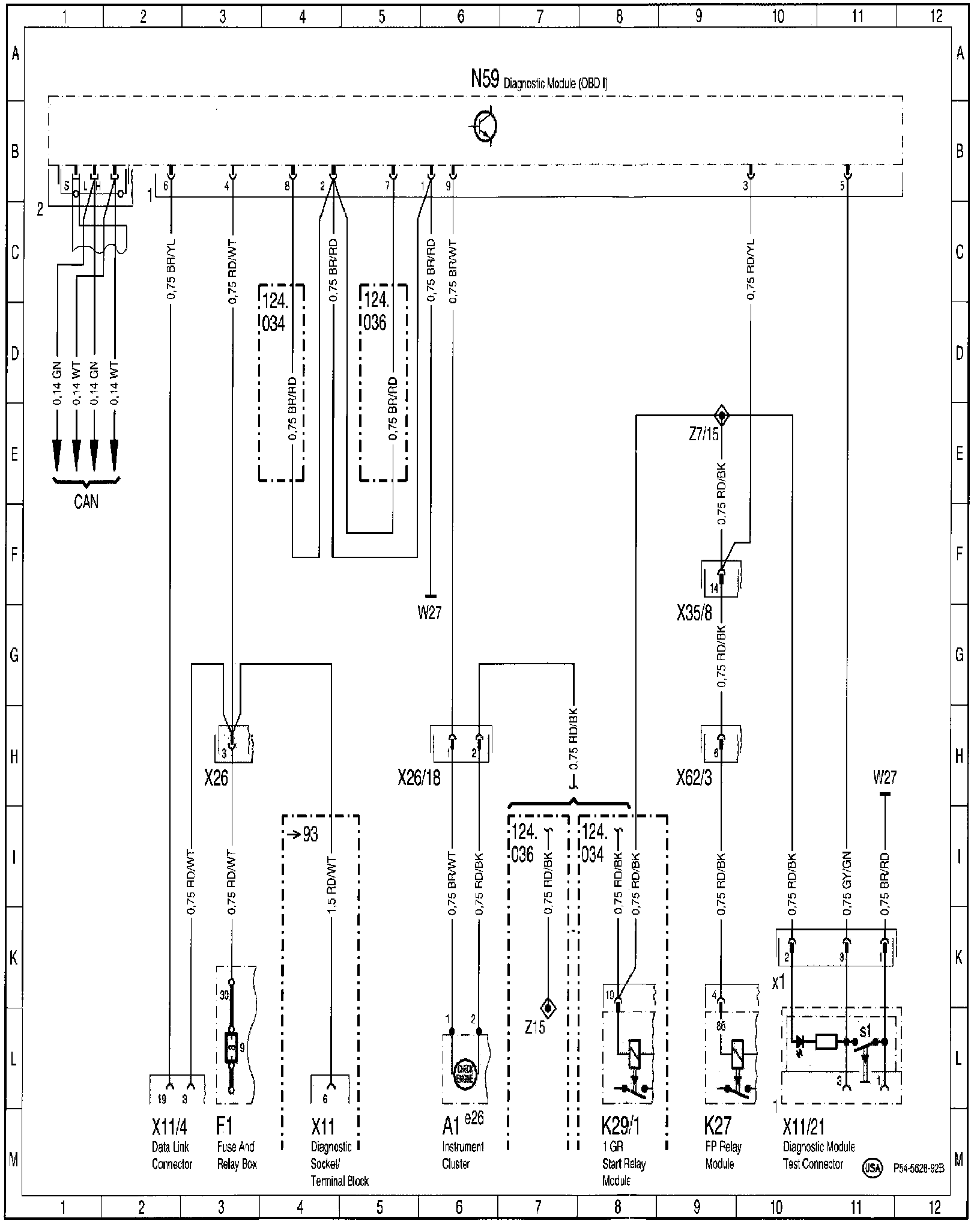

Wiring Diagram

Diagnostic Module (OBD I) - Component Index:




Component Index
