Exhaust Gas Recirculation: Service and Repair

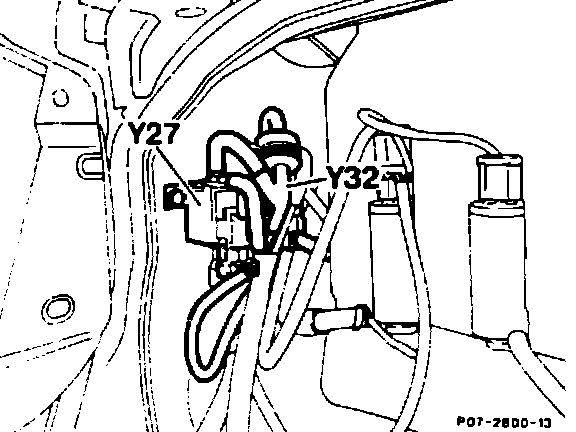

Rear Exhaust System Replacement:
When removing/installing, note the following:
a.
Pay attention to the color coding on the vacuum hoses.
b.
When removing switchover valve, pay attention to washers.
