Air Temperature Sensor ( Ambient / Intake )
Air Temperature Sensor ( Ambient / Intake )

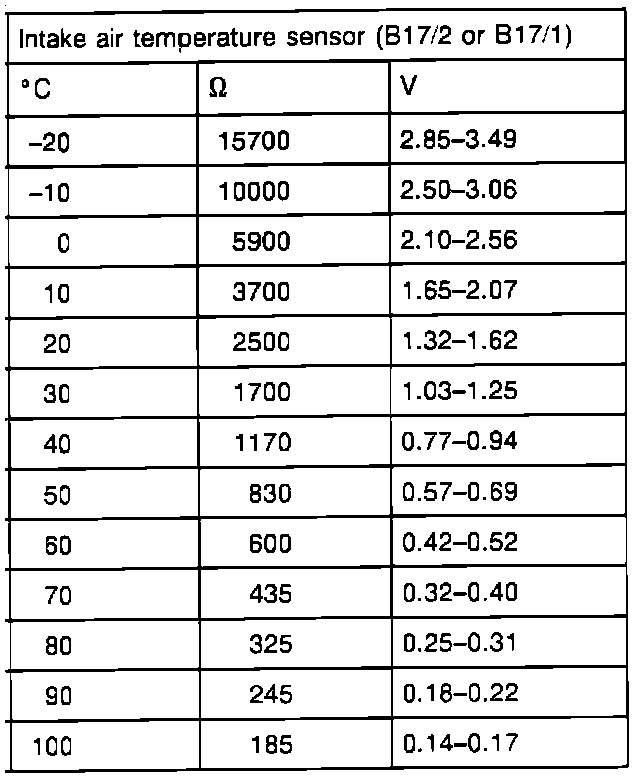

Intake Air Temperature Sensor Specifications:
