Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1993
>>
600SEC (140.076) V12-6.0L (120.980)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

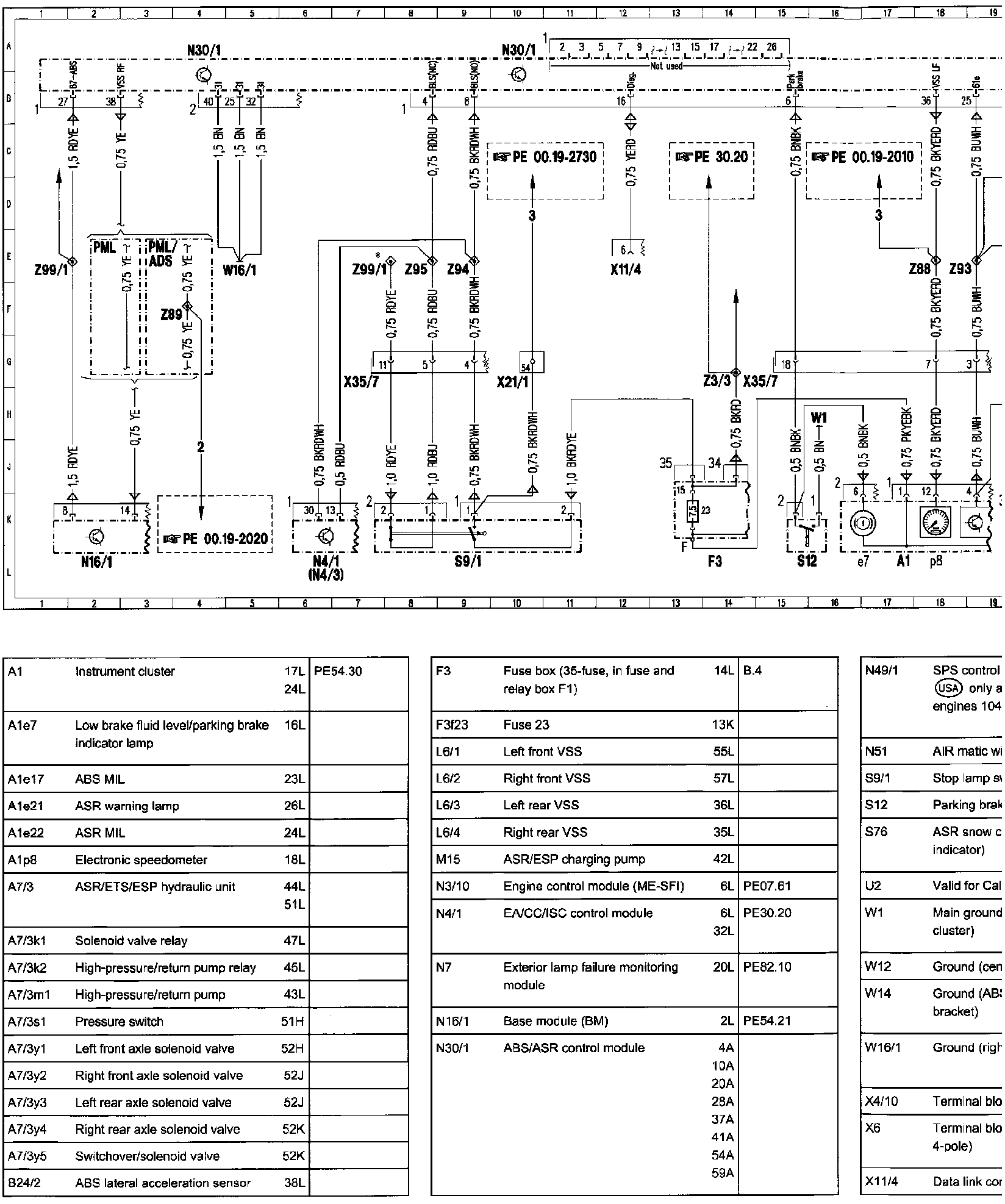

B�M%2(N%��N%PE42.40-U-2000XR - Acceleration Slip Regulation (ASR):
