Component Tests and General Diagnostics

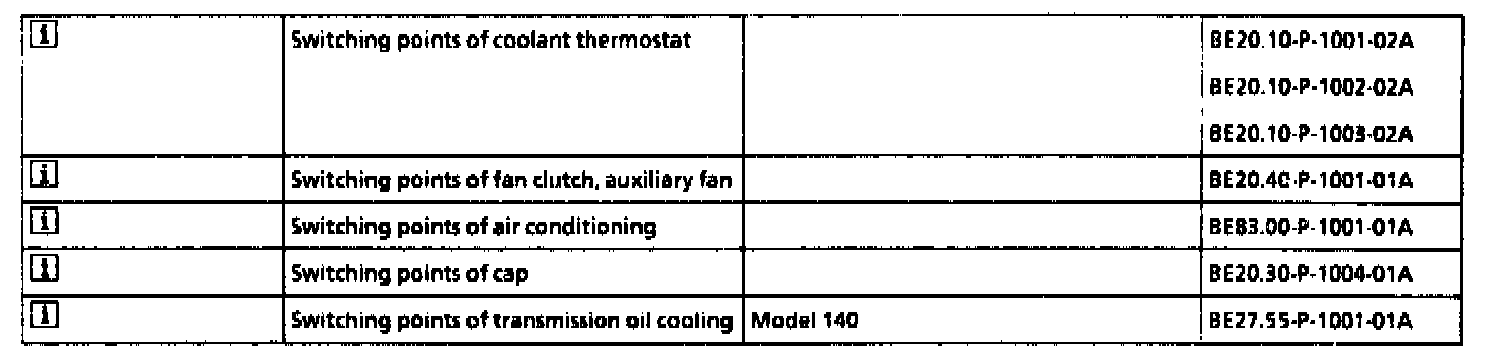

OVERVIEW






COOLANT THERMOSTAT

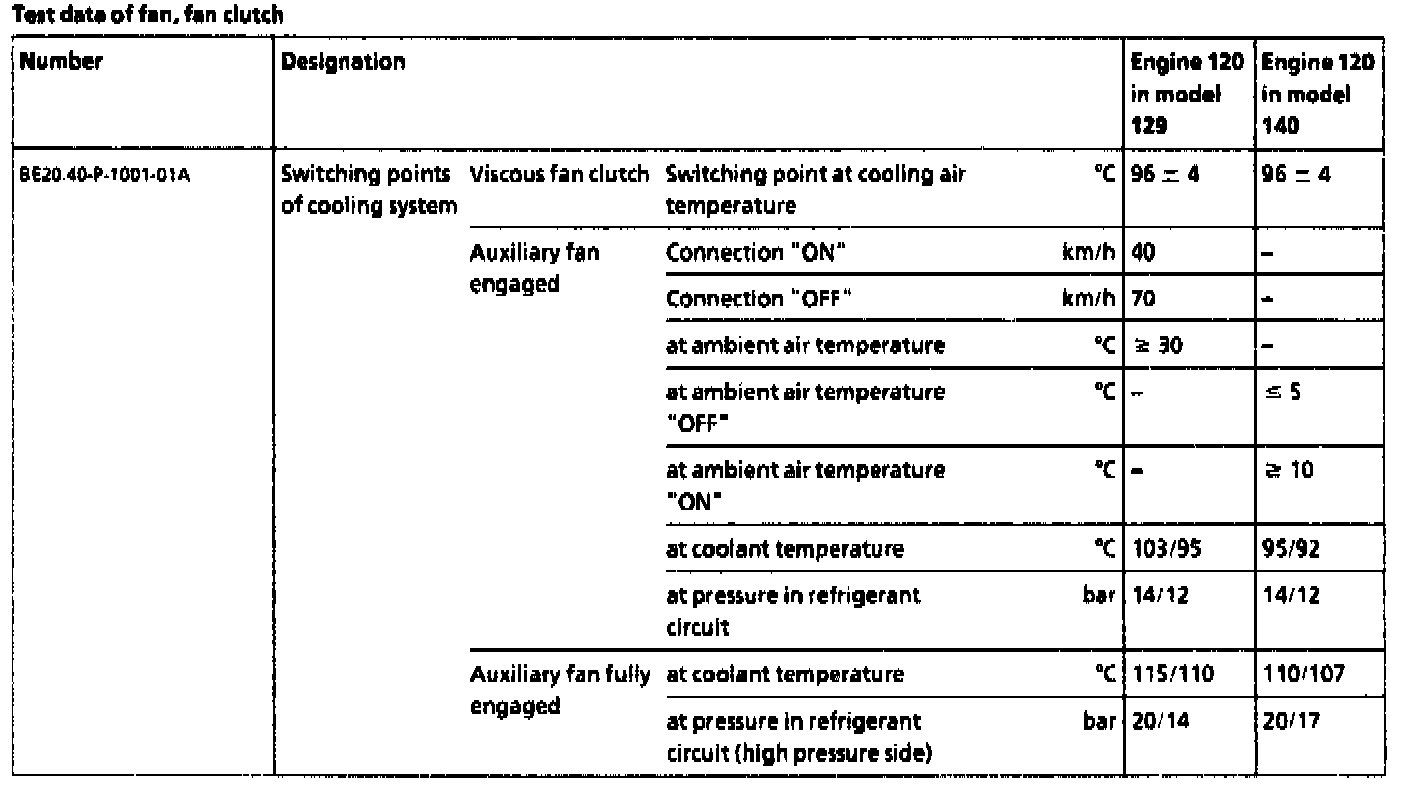

TEST DATA OF FAN, FAN CLUTCH






TEST DATA OF SWITCHING POINTS OF AIR CONDITIONS

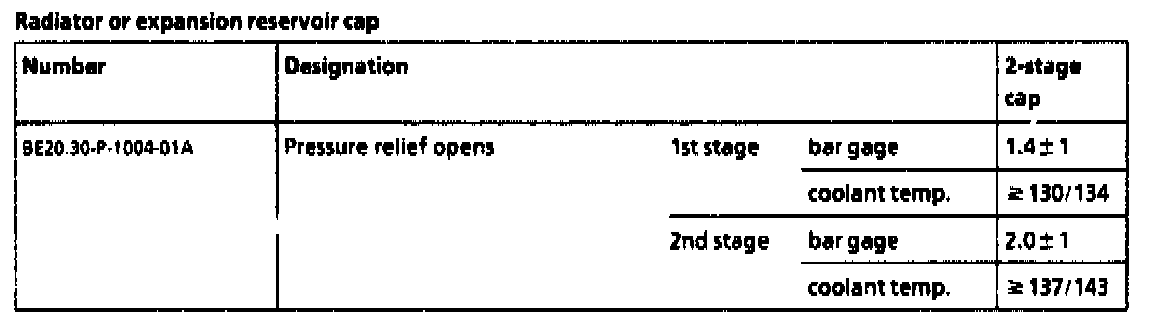

RADIATOR OR EXPANSION RESERVOIR CAP






TEST DATA OF TRANSMISSION OIL COOLING
