Pinout Values and Diagnostic Parameters
The following tests and component activations are possible using the Hand-Held Tester (HHT).

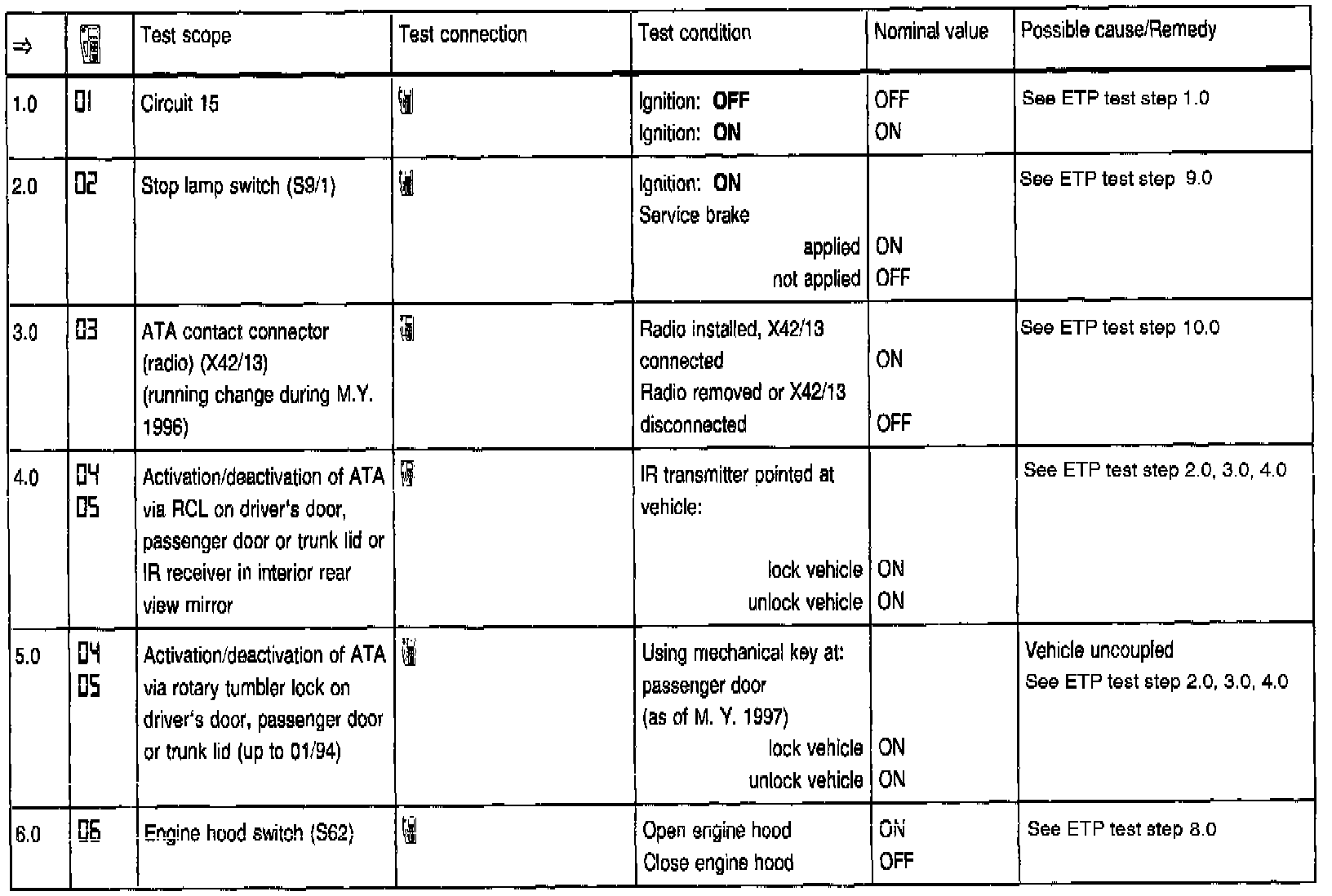

Nominal Values (Function Status):
- All door contacts including engine hood and trunk lid.
- Left front door lock switch (S86/1), right front door lock switch (S87/1), and trunk lid lock switch (S88/2) (arm/disarm ATA) (up to 01/94).
- Ignition.
- Service brake.
- Radio contact (running change during M.Y. 1996).
- Left front door actuator (S47).
