Electrical Diagrams

Outside Mirrors PE88.79-U-2000WA

Wiring Diagram, Part 1:

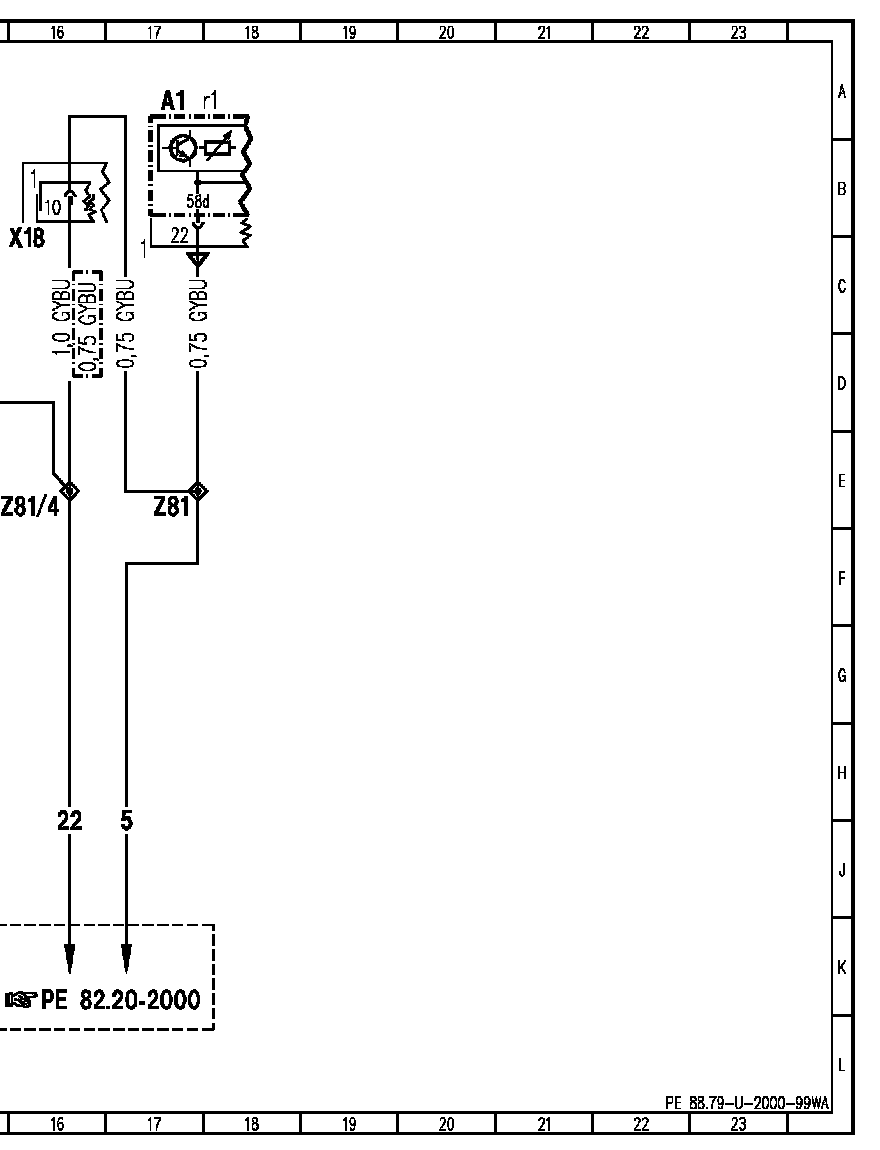

Wiring Diagram, Part 2:

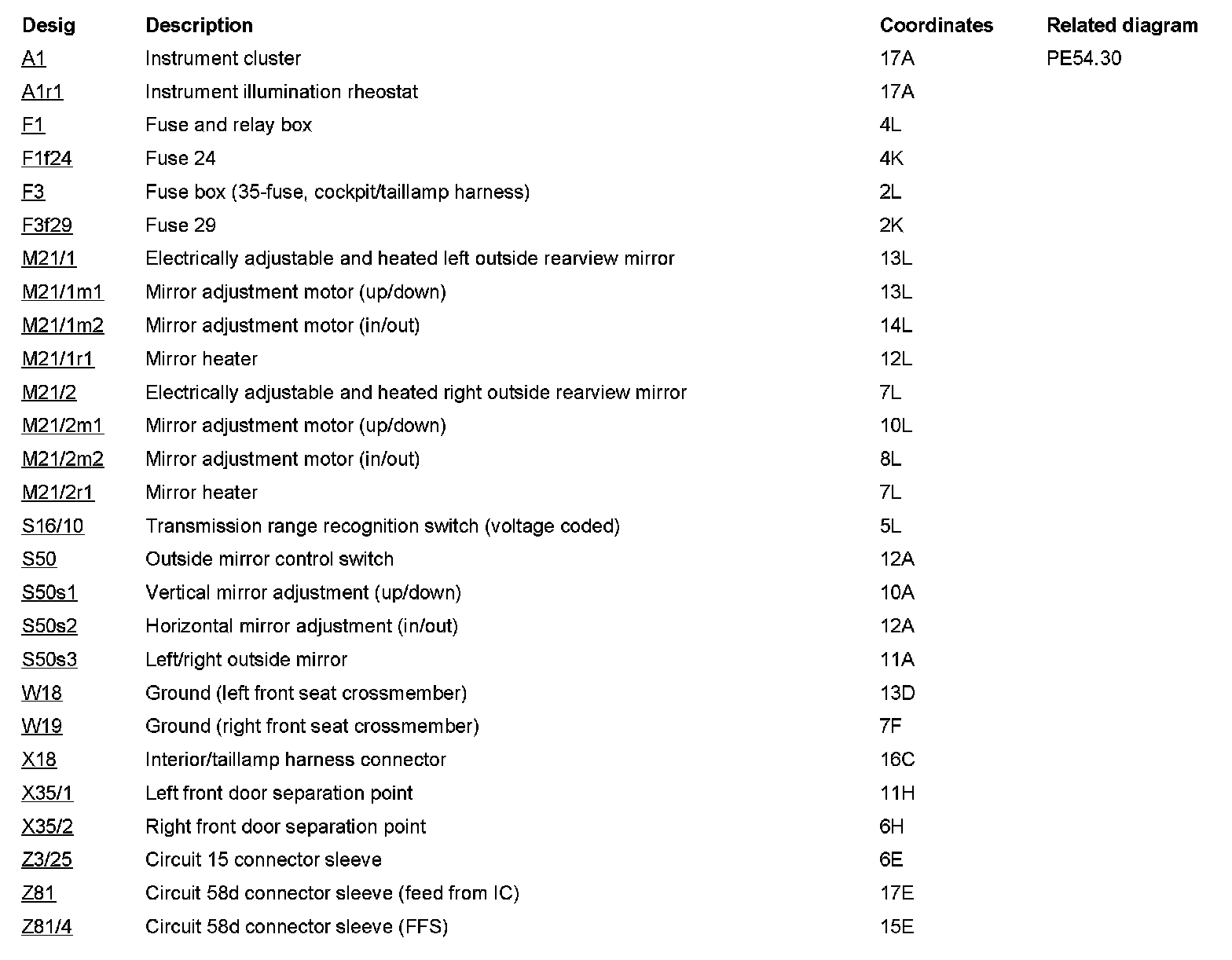

Component Description/Coordinates, A1 To Z81/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
