Antitheft and Alarm Systems

Anti-theft Alarm System (ATA) PE80.50-U-2000WA

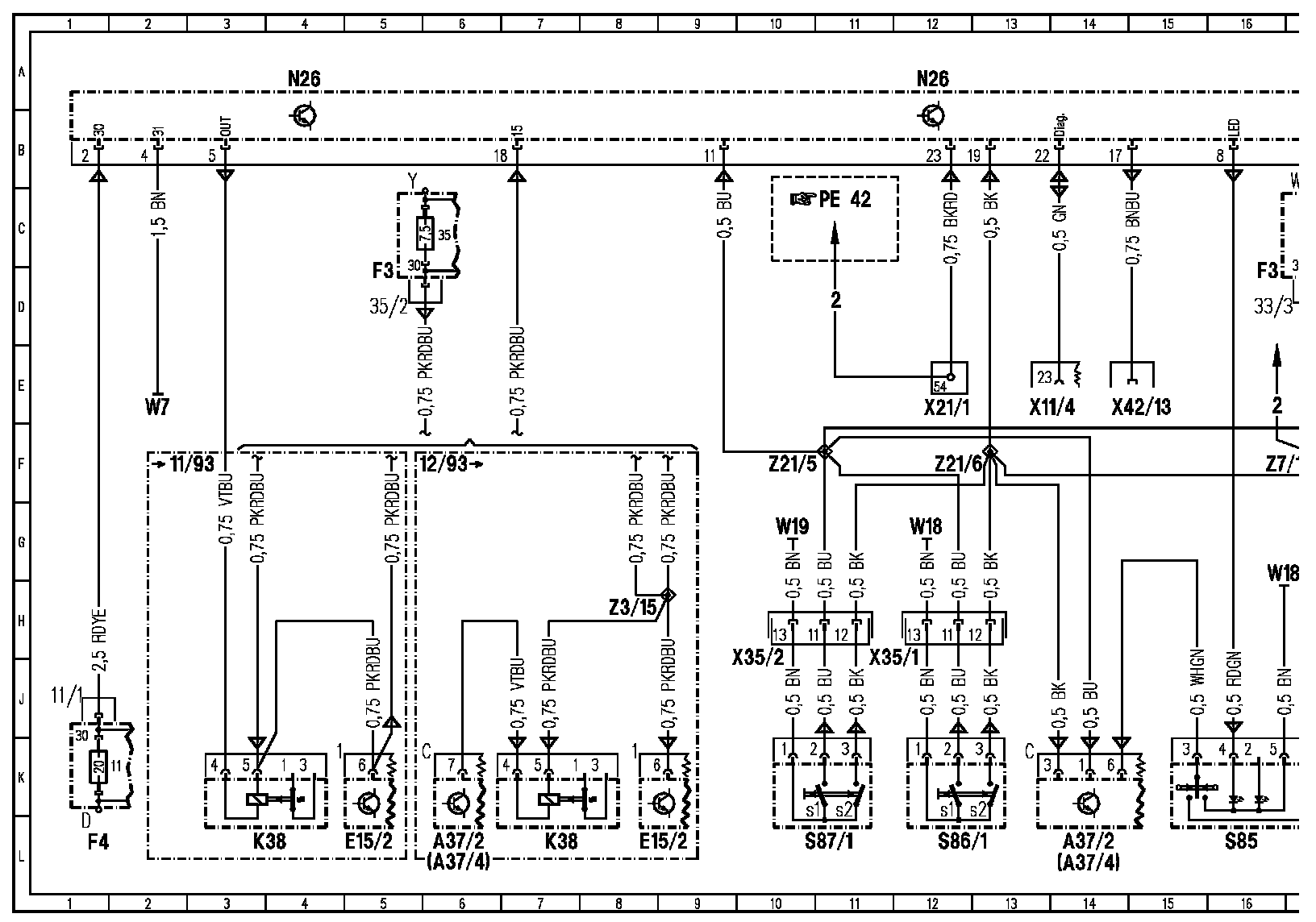

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

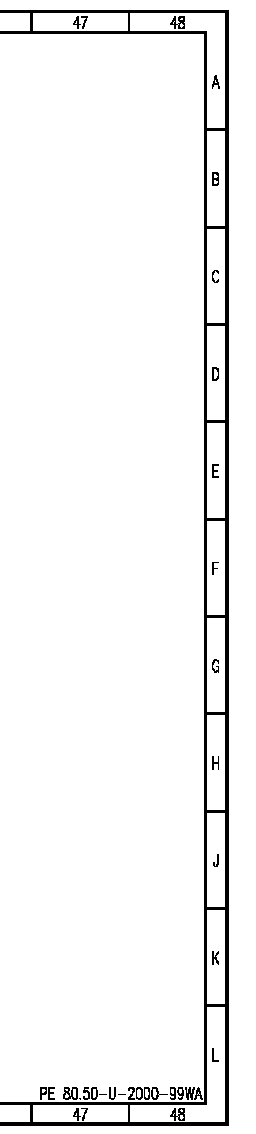

Wiring Diagram, Part 4:

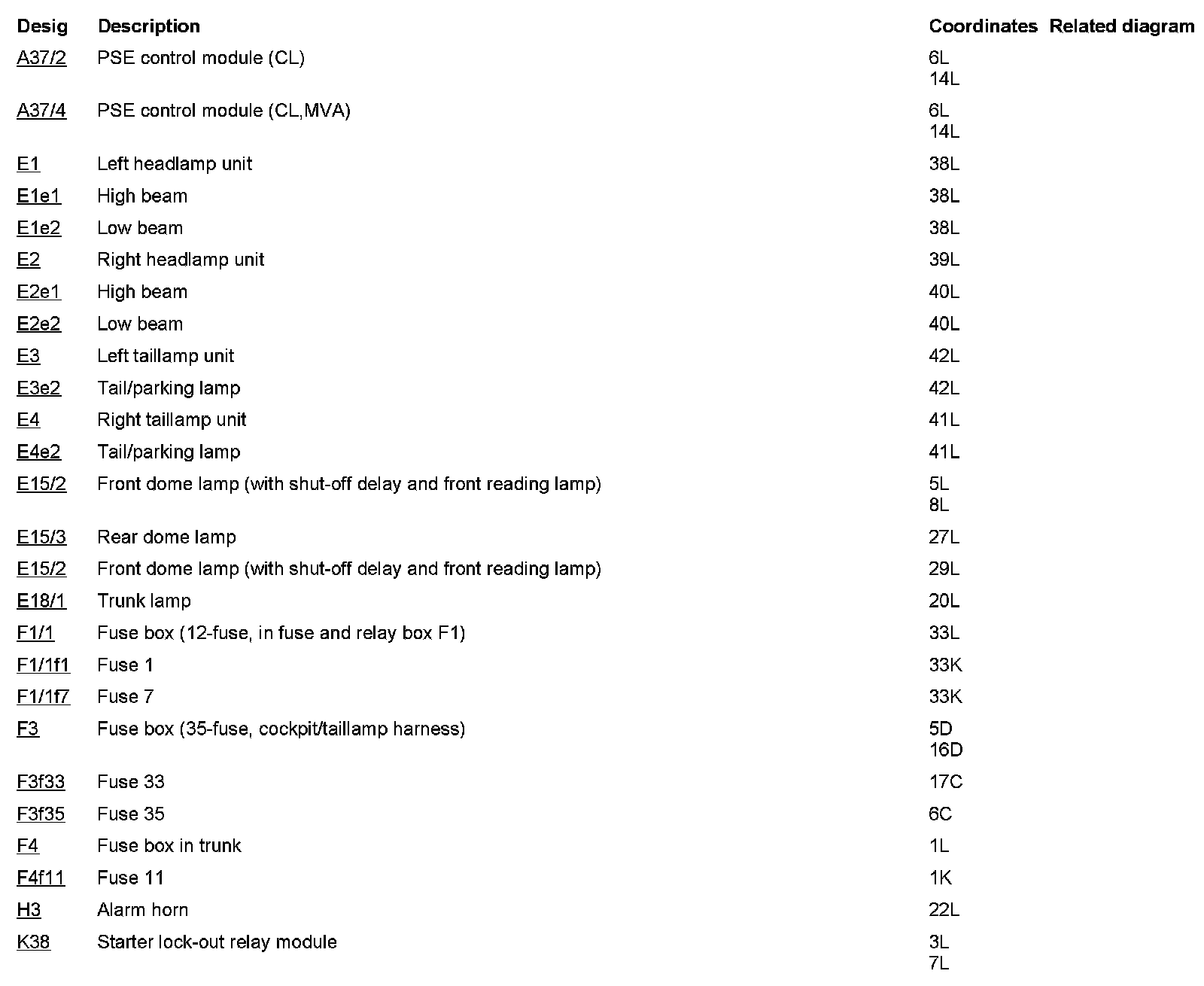

Component Description/Coordinates, A37/2 To K38:

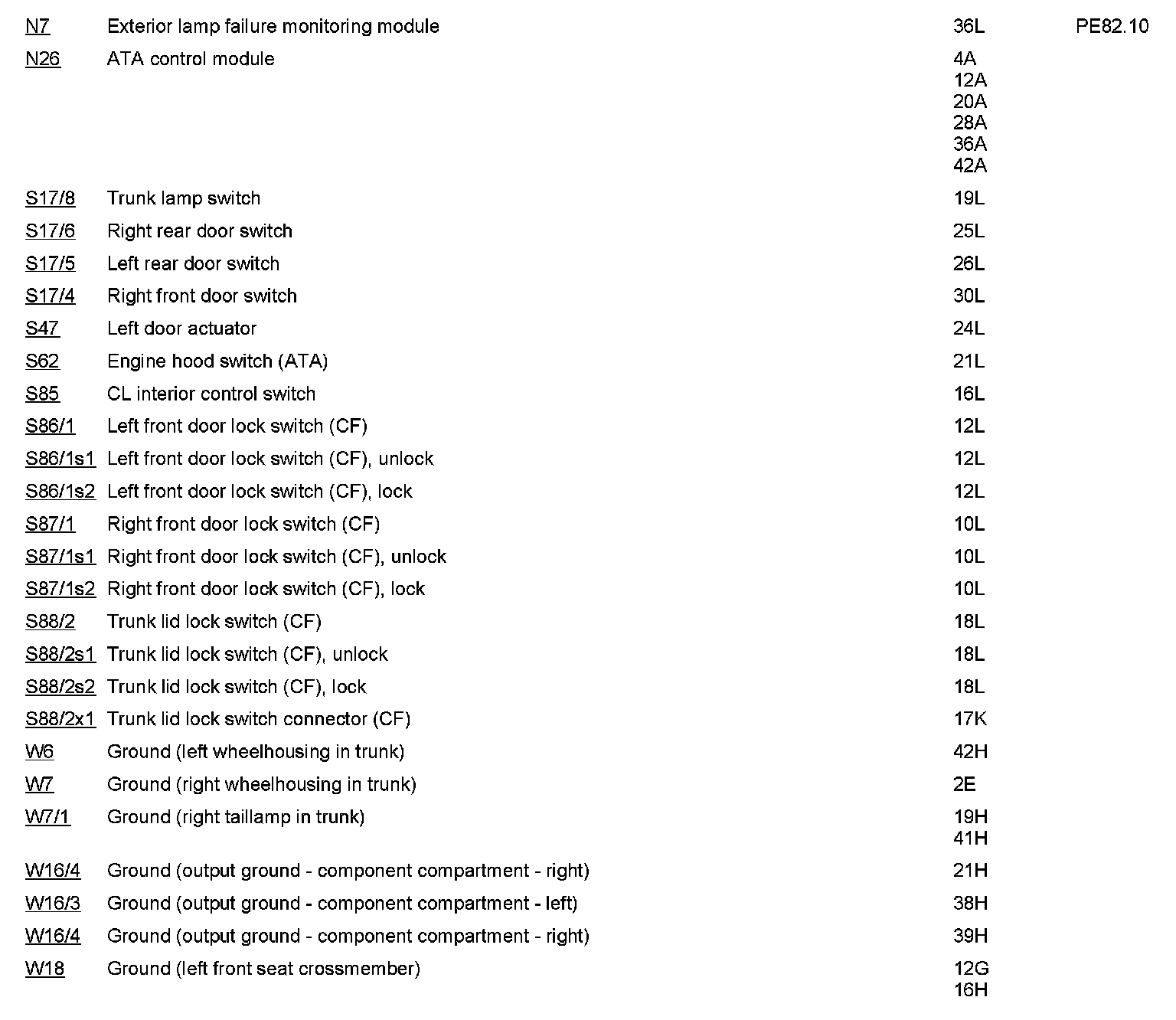

Component Description/Coordinates, N7 To W18:

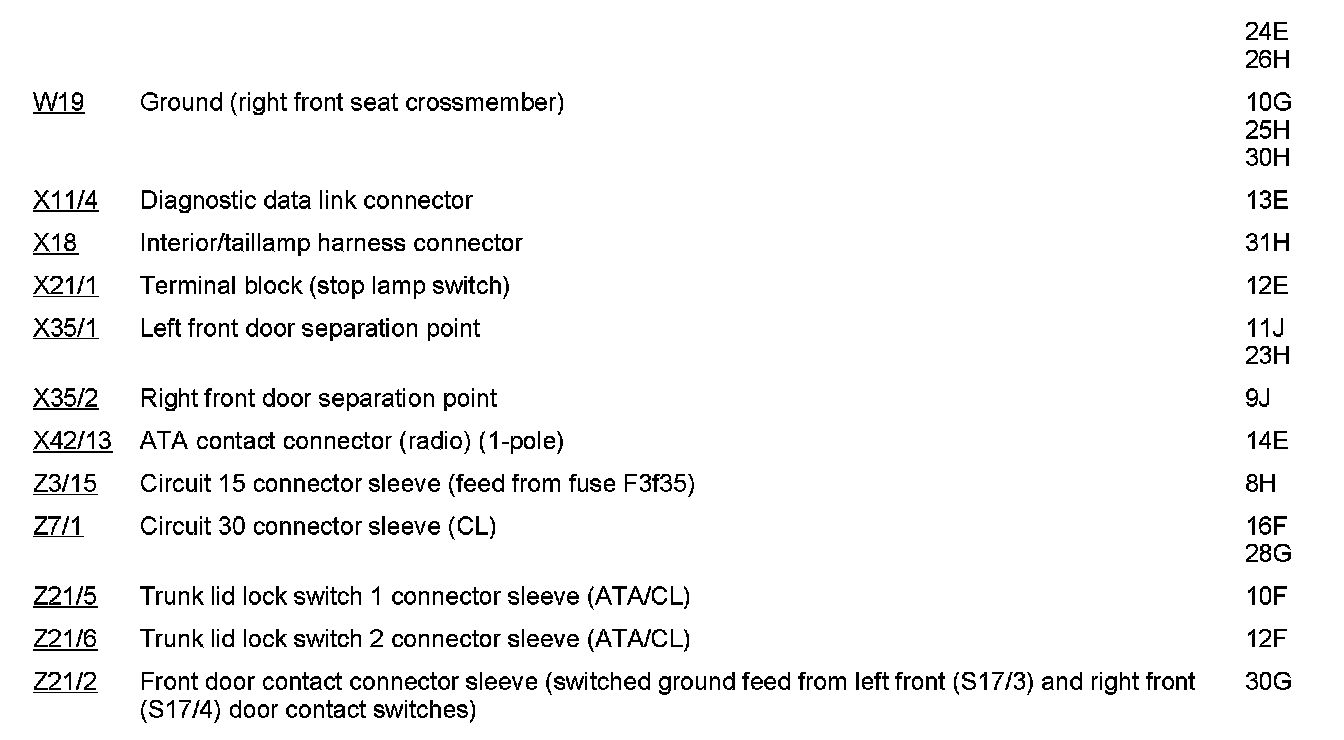

Component Description/Coordinates, W19 To Z21/2:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
