System Diagram

Instrument Cluster (CLUS)/display Instruments/warning Devices PE54.30-U-2000WA

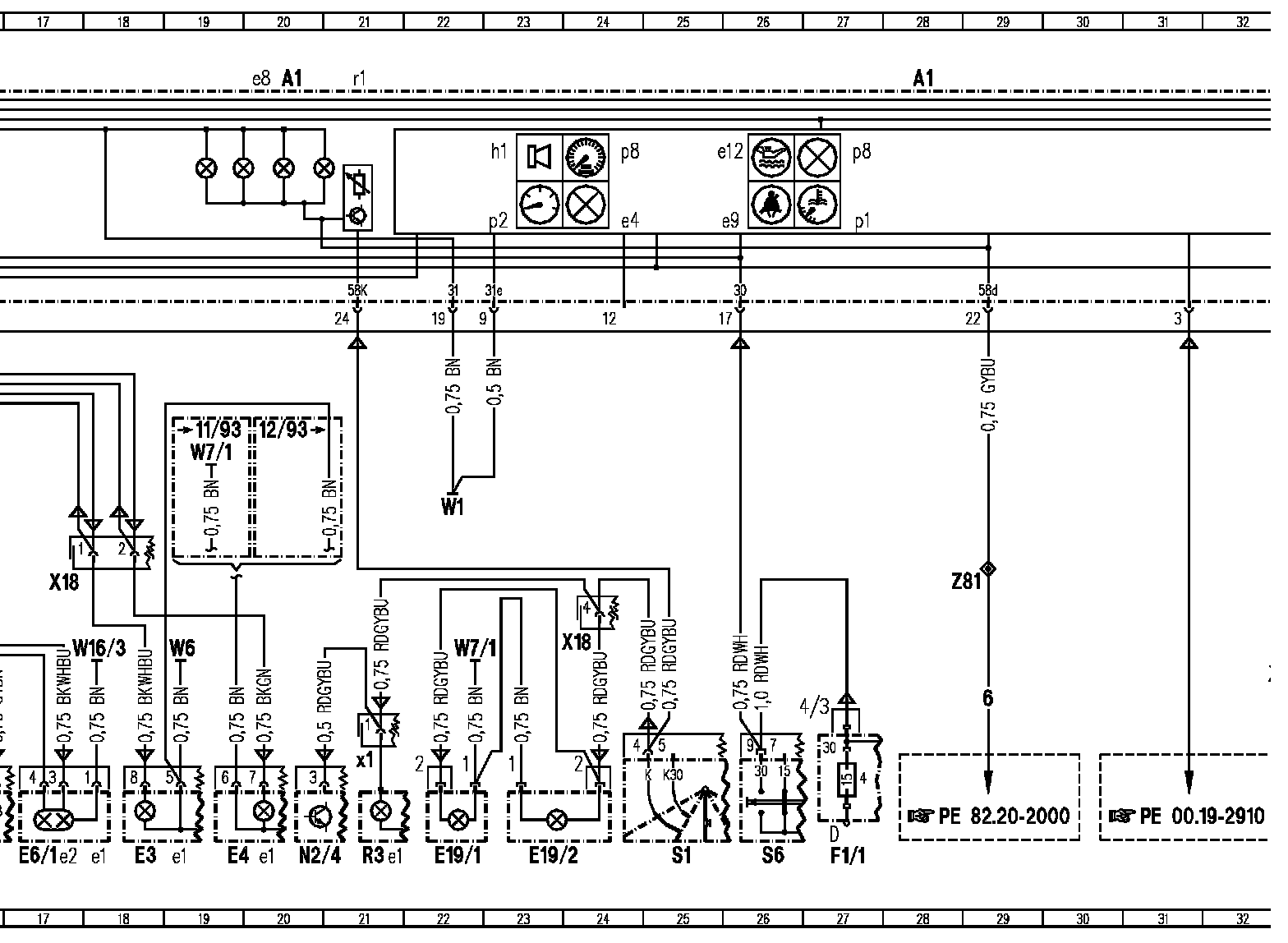

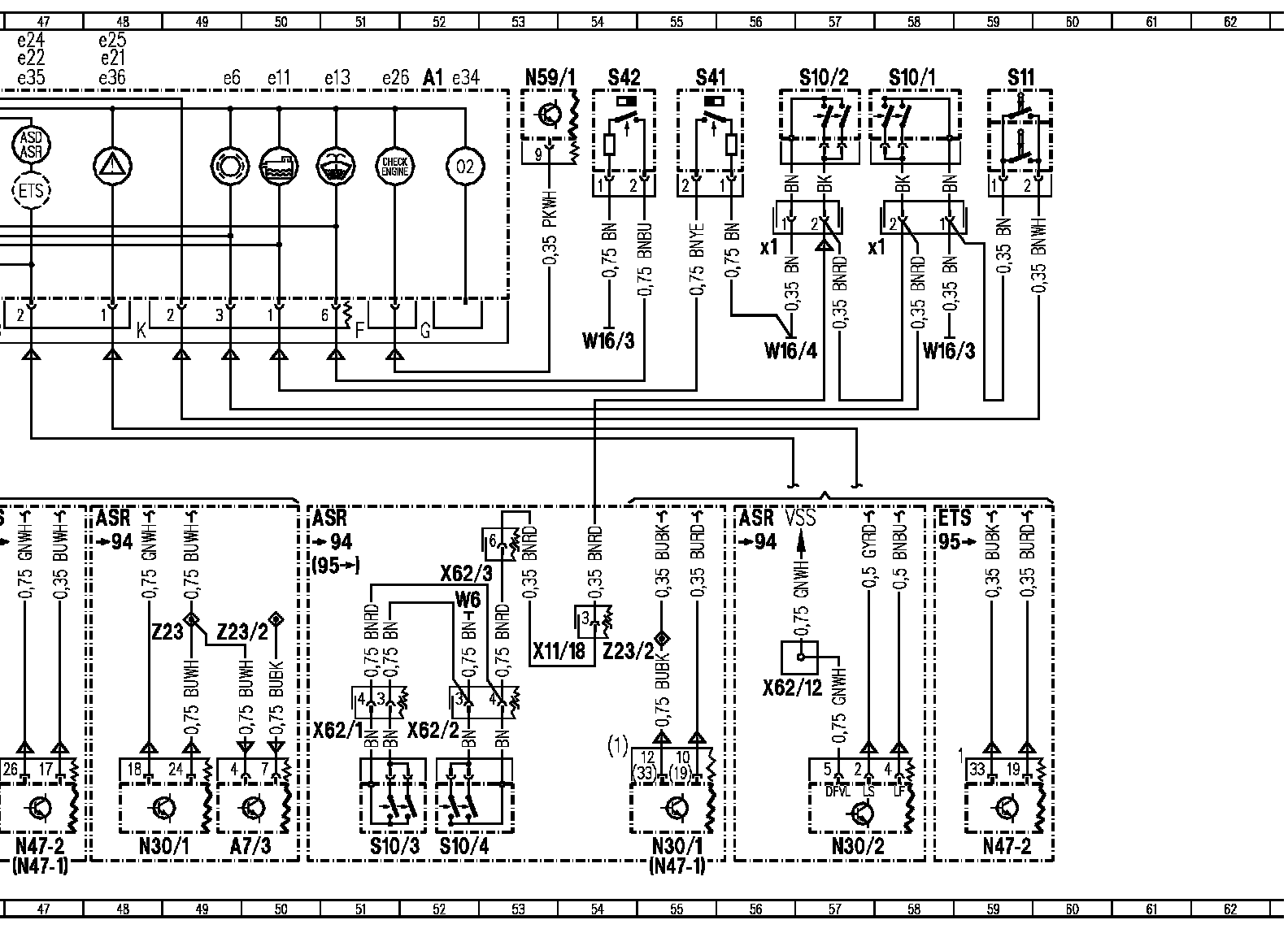

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

Wiring Diagram, Part 5:

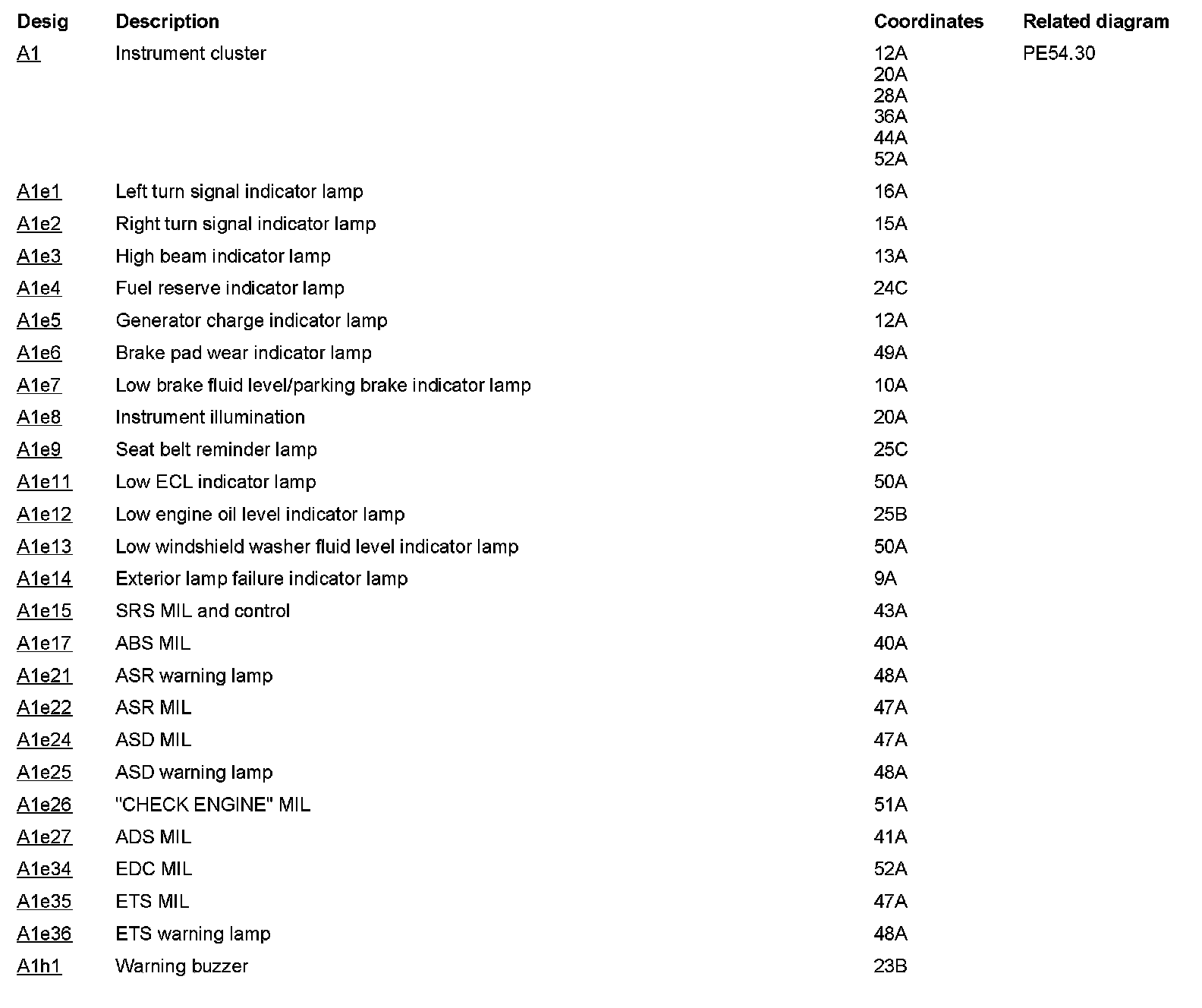

Component Description/Coordinates, A1 To A1h1:

Component Description/Coordinates, A1h2 To F1/1f6:

Component Description/Coordinates, F1/1f12 To S4:

Component Description/Coordinates, S4s1 To X18:

Component Description/Coordinates, X20/2 To Z81:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
