Central Locking (CL) PE80.20-U-2000WA

Central Locking (CL) PE80.20-U-2000WA

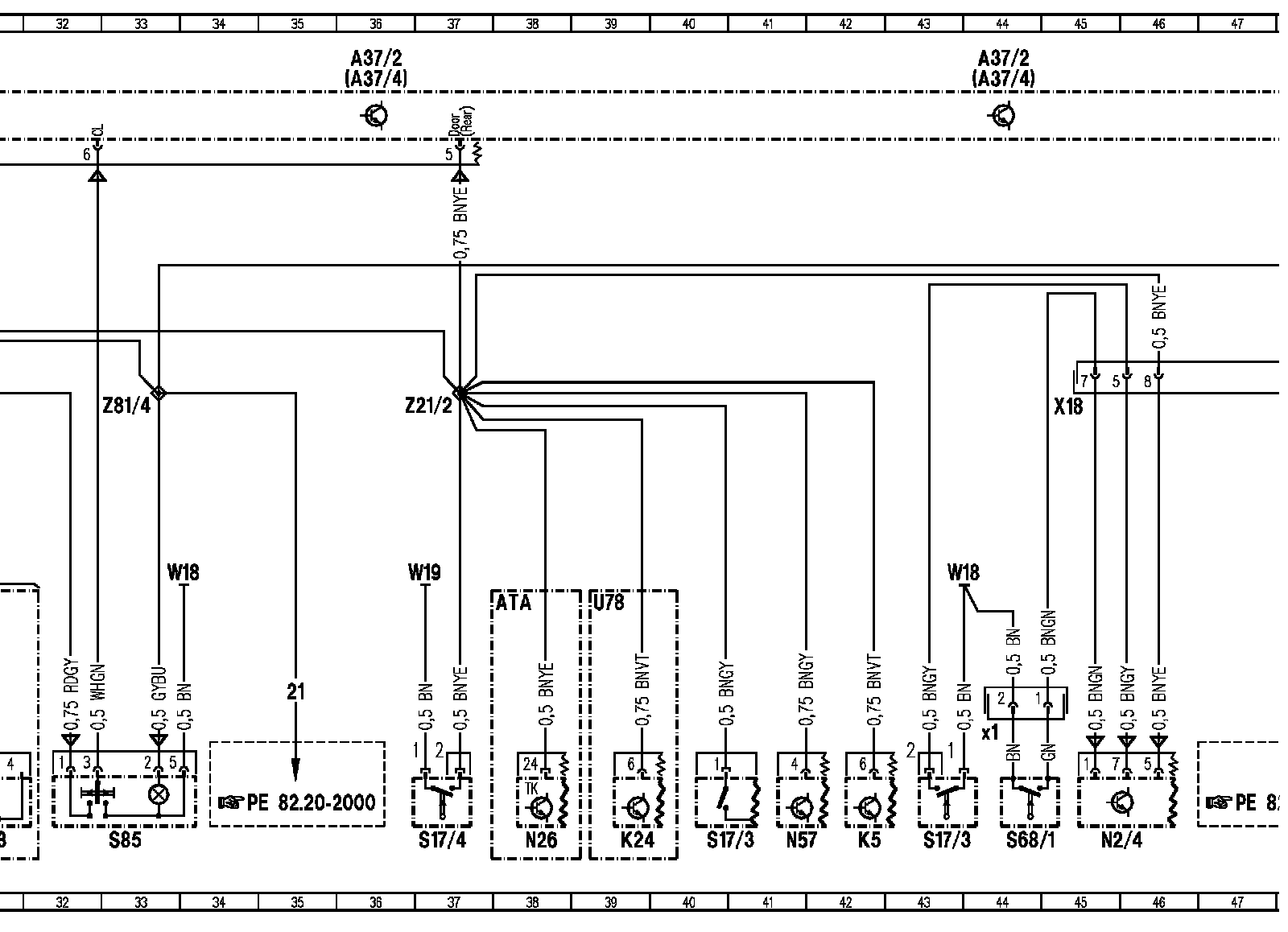

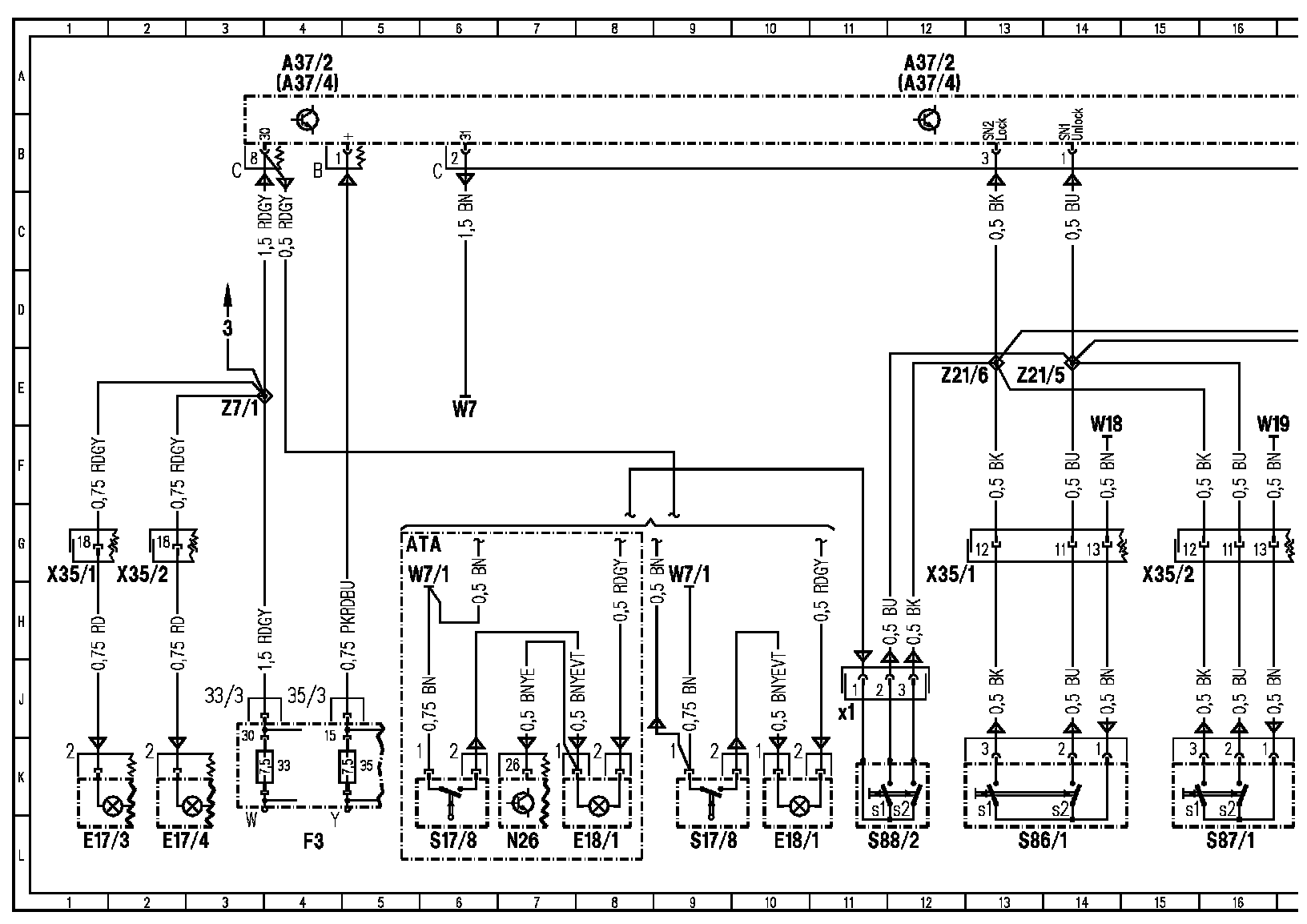

Wiring Diagram, Part 1:

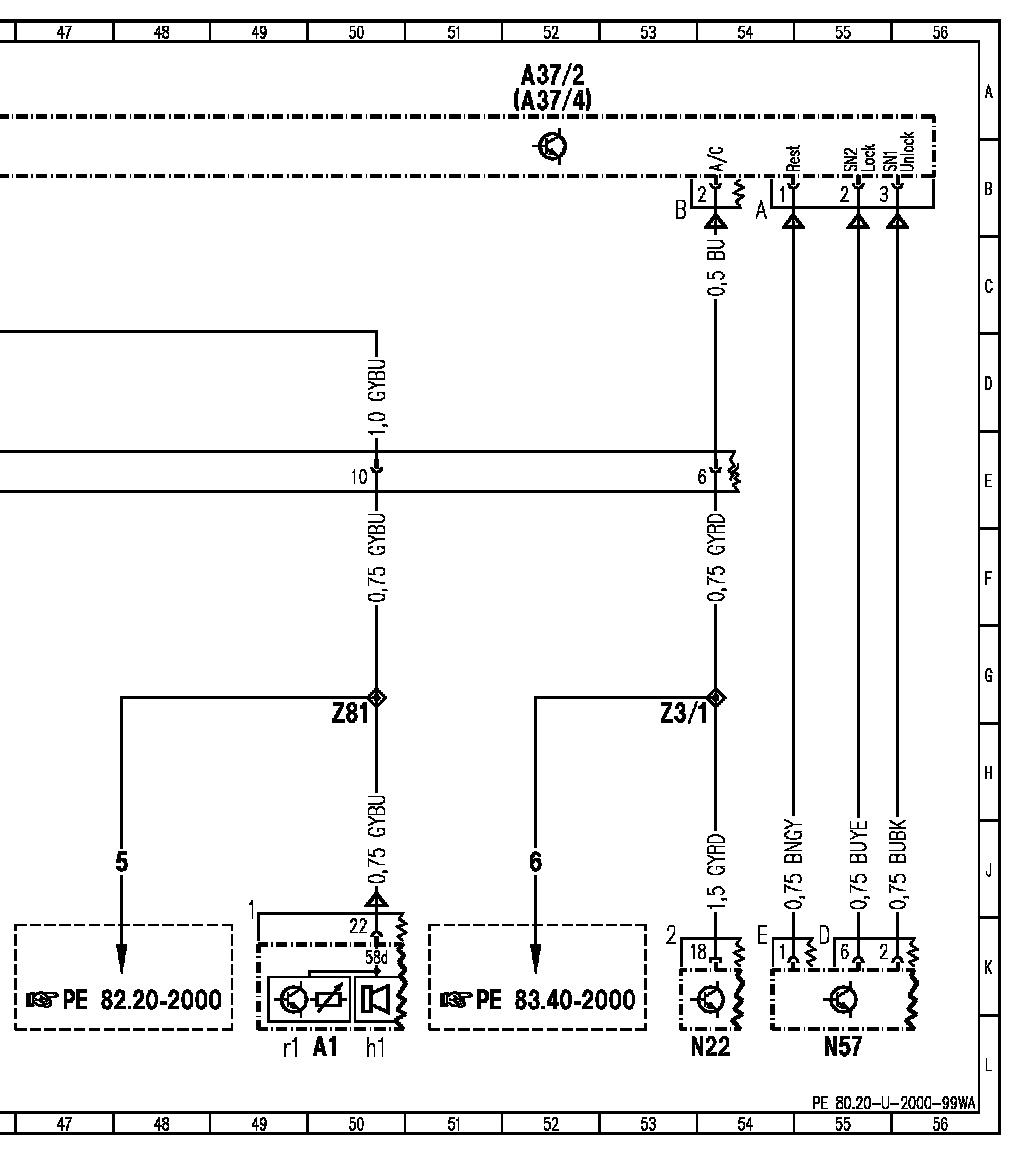

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

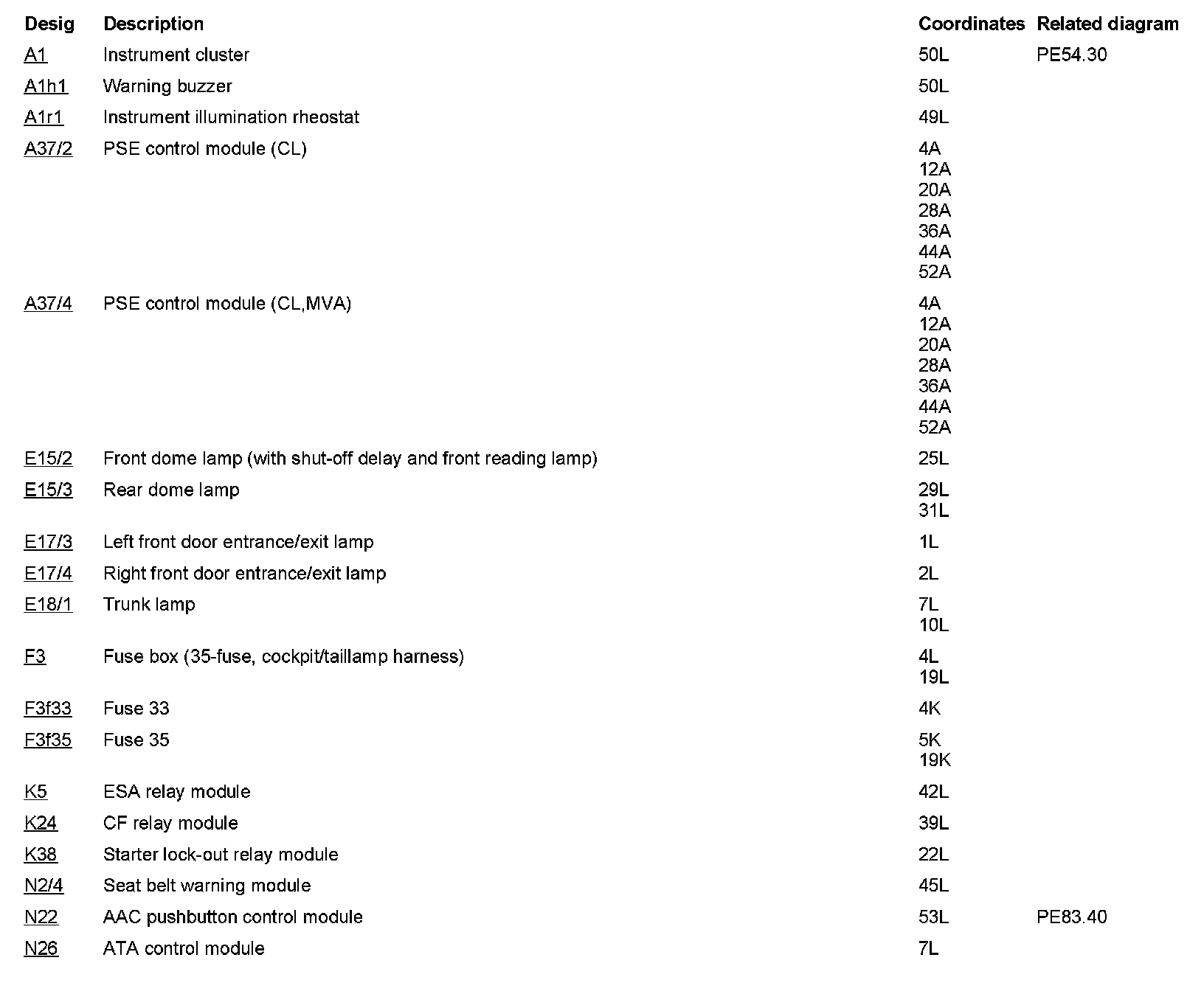

Component Description/Coordinates, A1 To N26:

Component Description/Coordinates, N57 To W19:

Component Description/Coordinates, X18 To Z81/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
