Comfort Lock System PE80.45-U-2000WA

Comfort Lock System PE80.45-U-2000WA

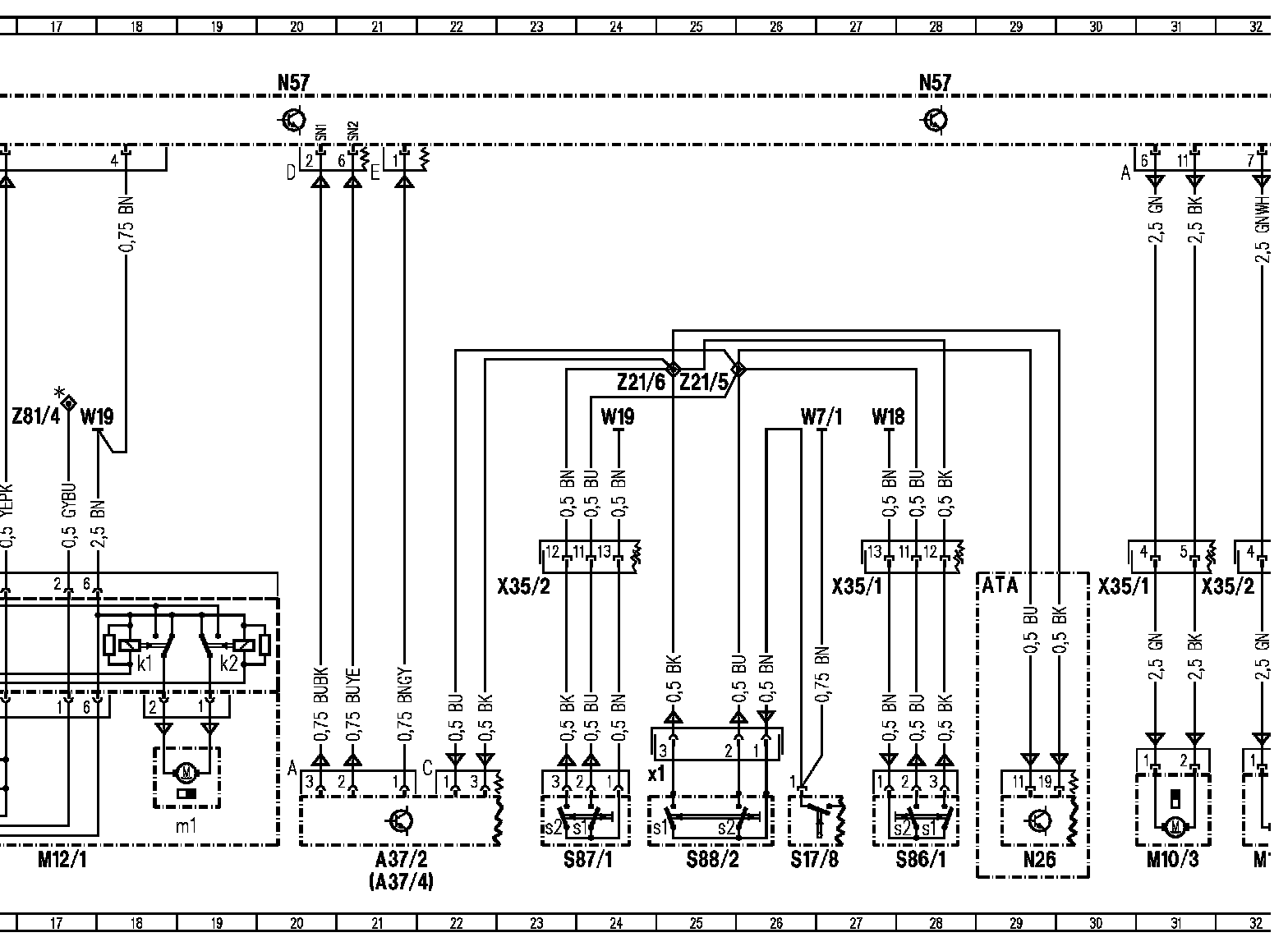

Wiring Diagram, Part 1:

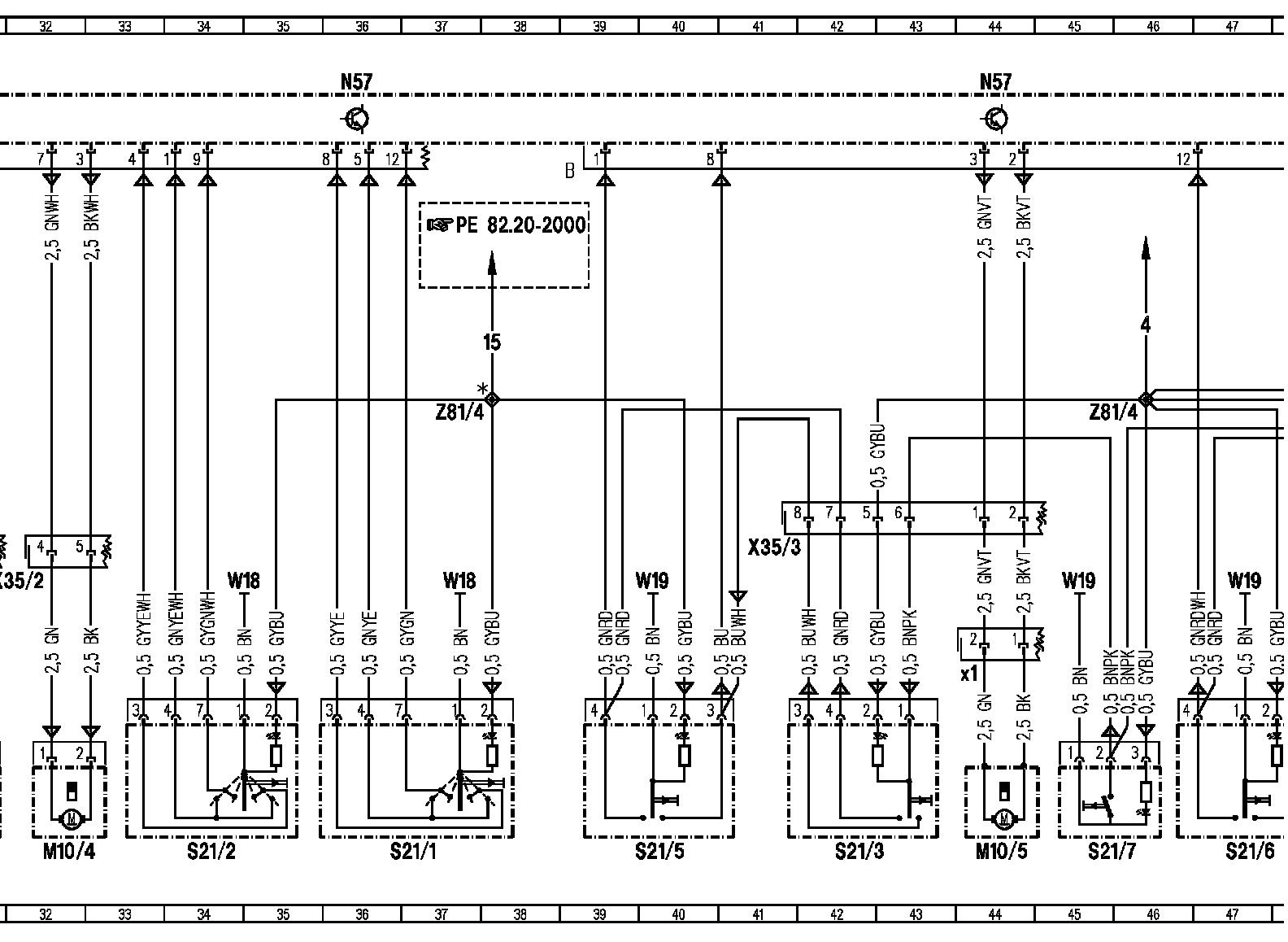

Wiring Diagram, Part 2:

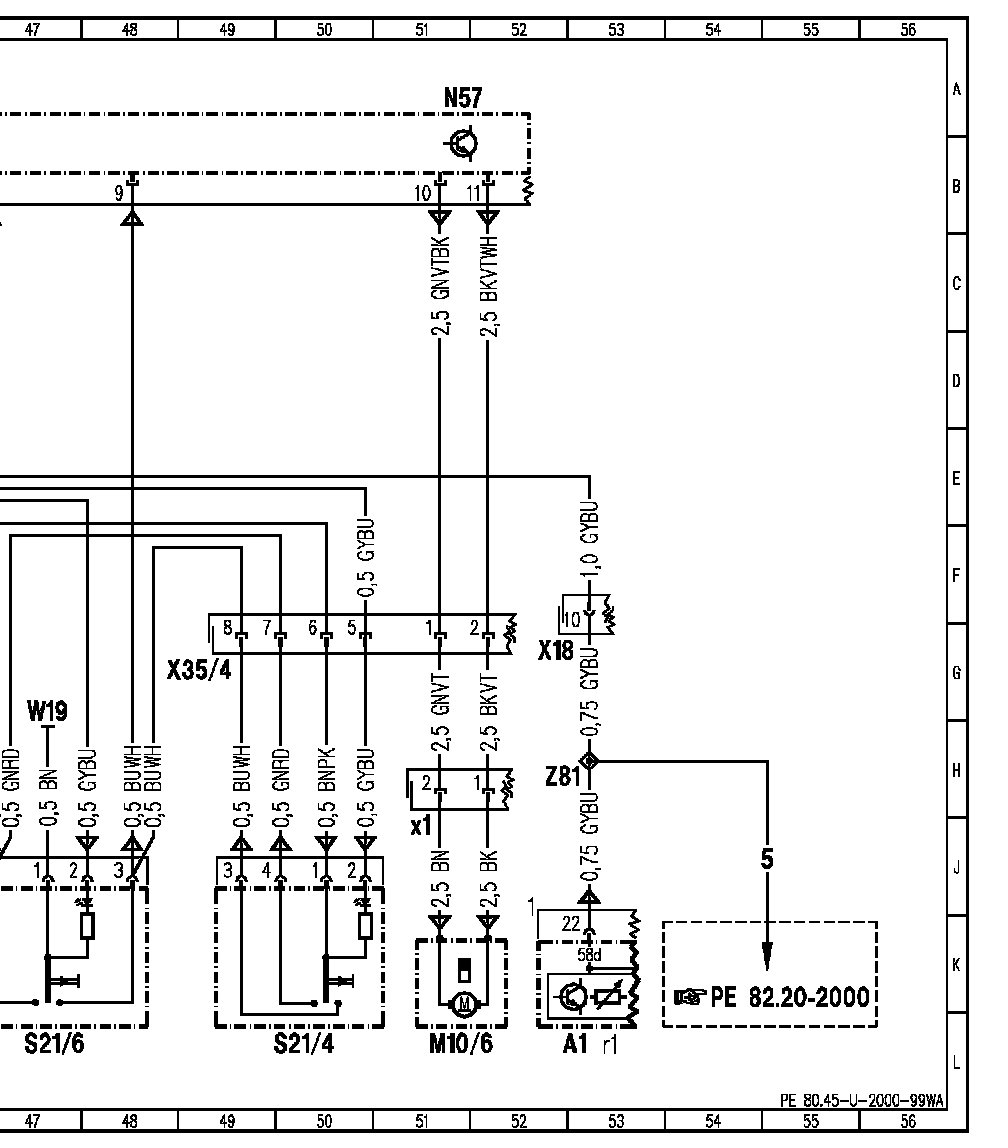

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

Component Description/Coordinates, A1 To N26:

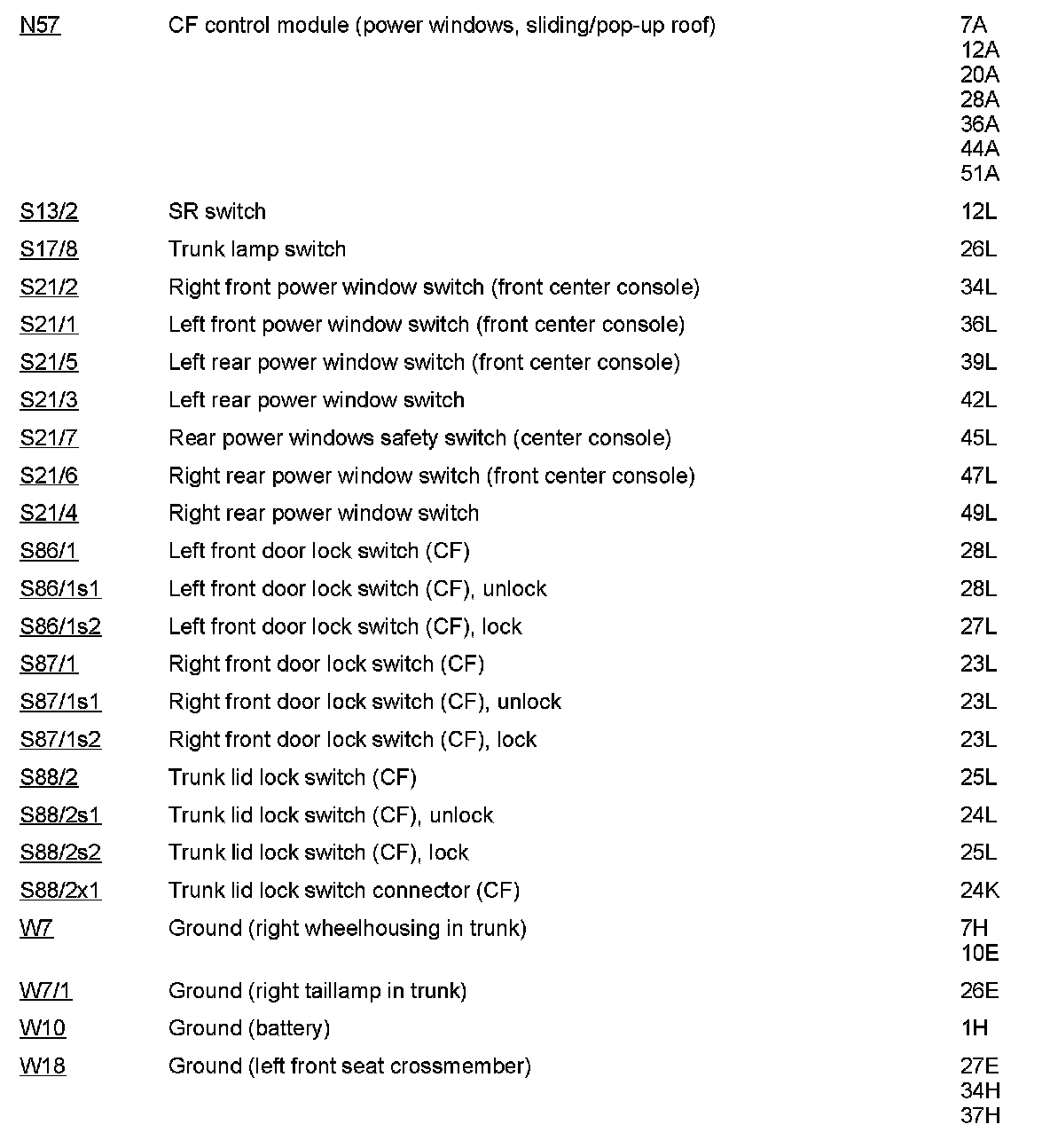

Component Description/Coordinates, N57 To W18:

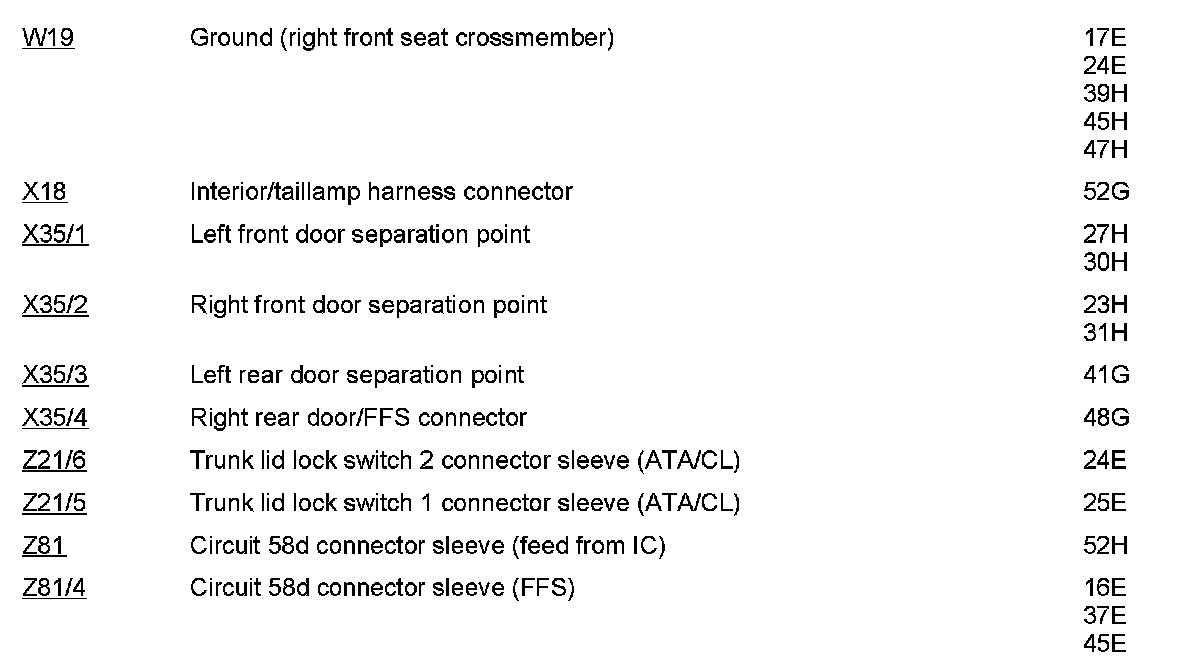

Component Description/Coordinates, W19 To Z81/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
