Home >> Mercedes Benz >> 1994 >> C 220 (202.022) L4-2.2L (111.961) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Restraints and Safety Systems >> System Diagram >> Seatbelt Warning Device PE91.40-U-2100WA

Seatbelt Warning Device PE91.40-U-2100WA



Seatbelt Warning Device PE91.40-U-2100WA

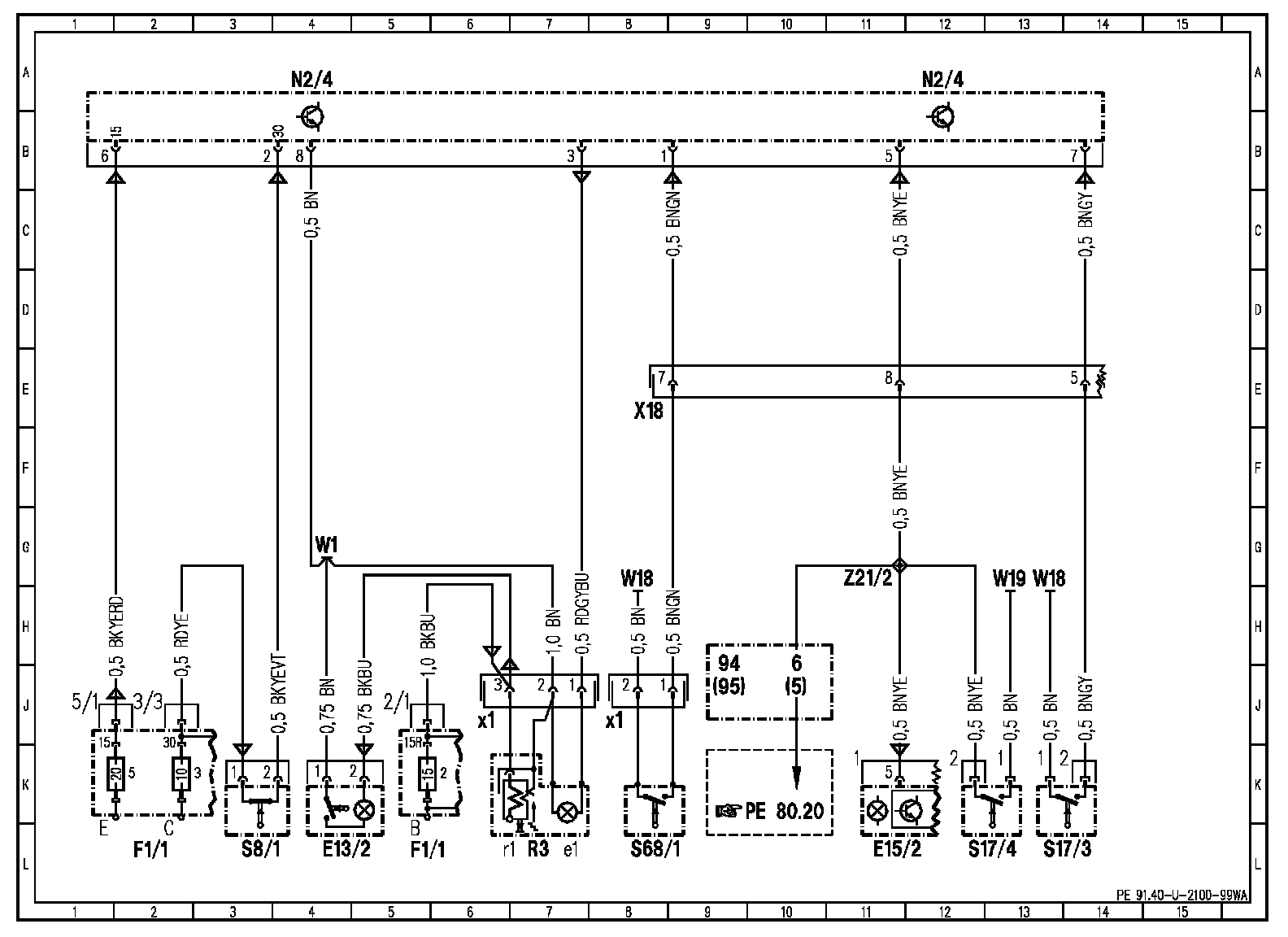

Wiring Diagram:

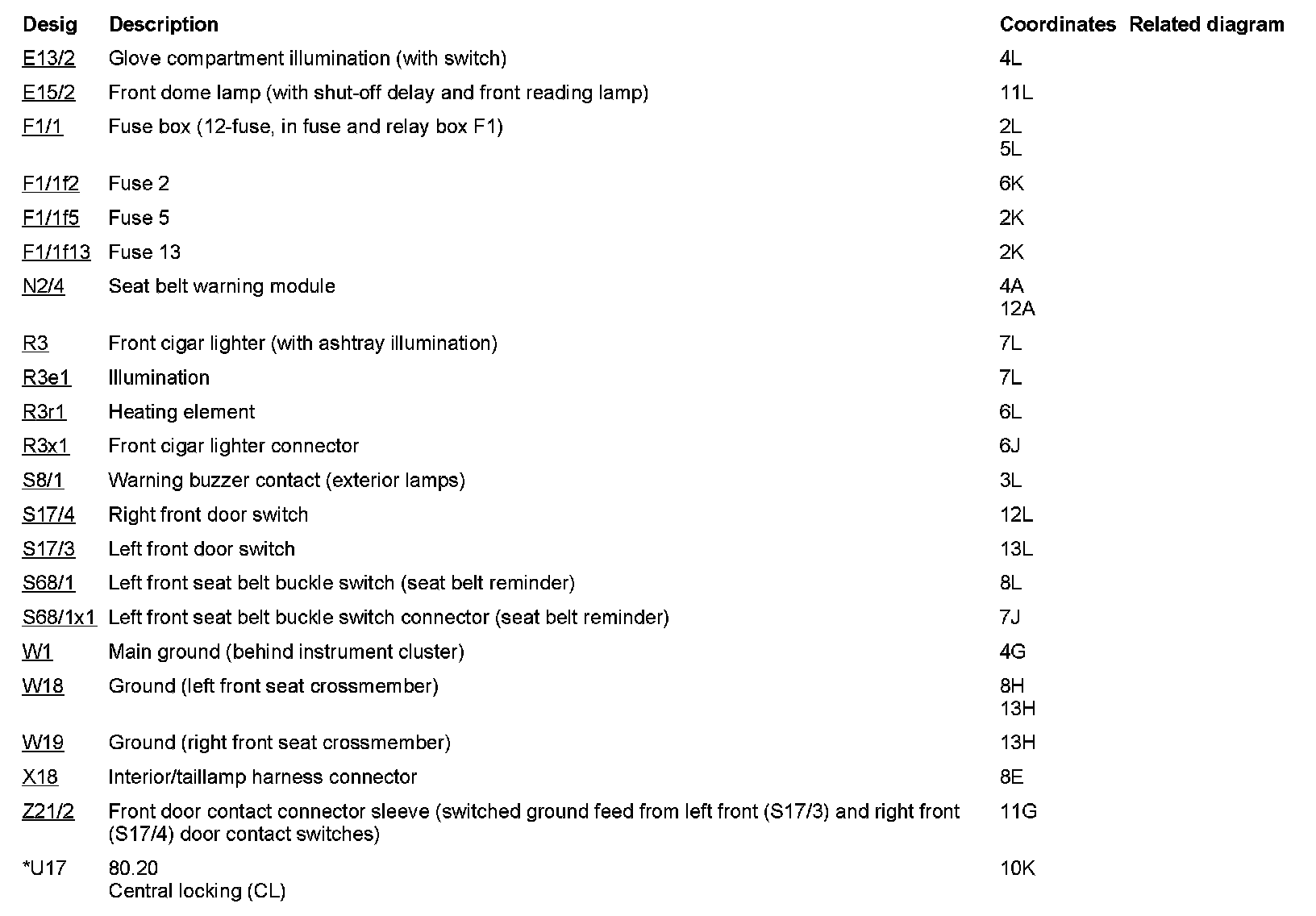

Component Description/Coordinates, E13/2 To U17:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
