System Diagram

Starter, Generator PE15.00-U-2000WB

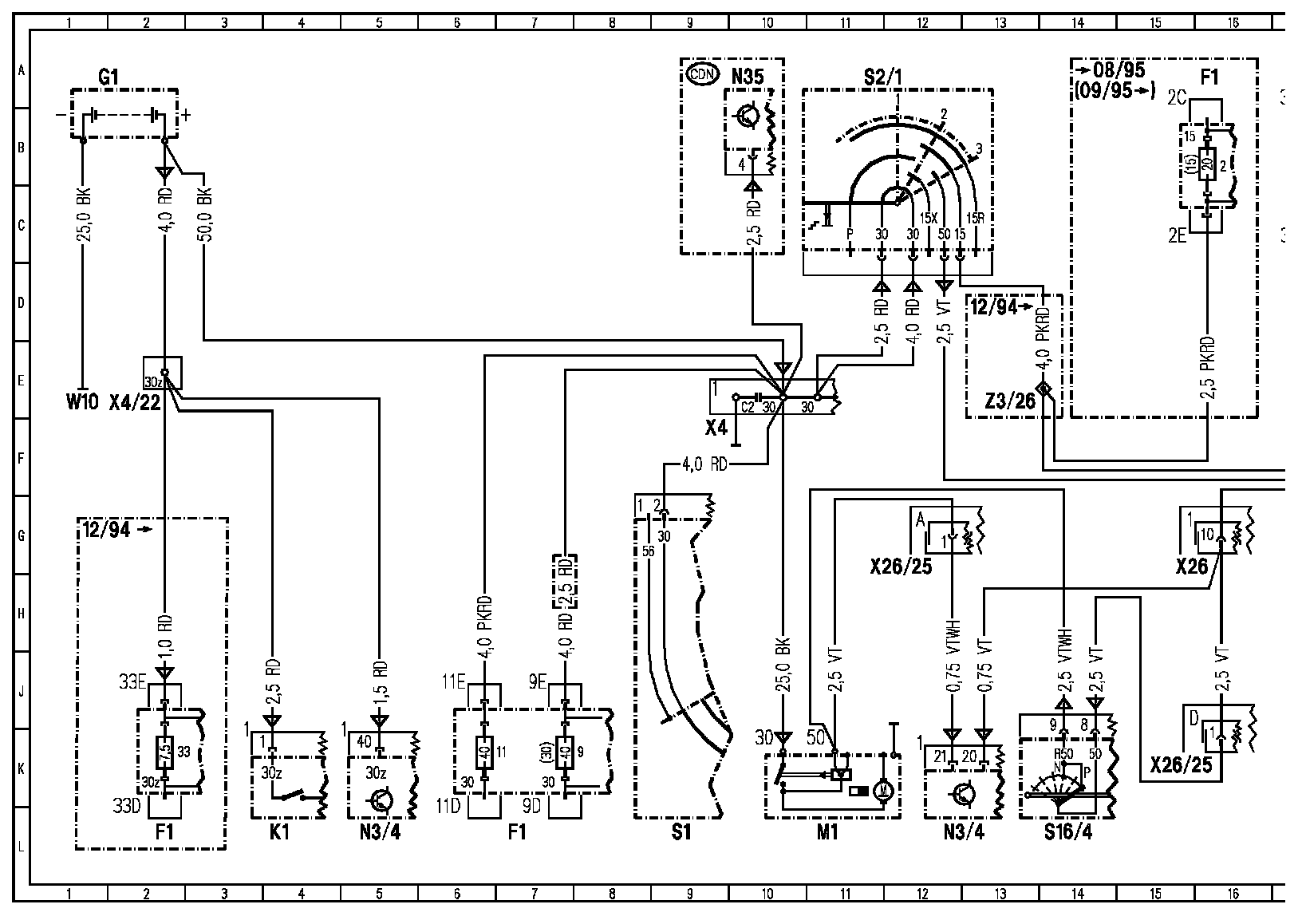

Wiring Diagram, Part 1:

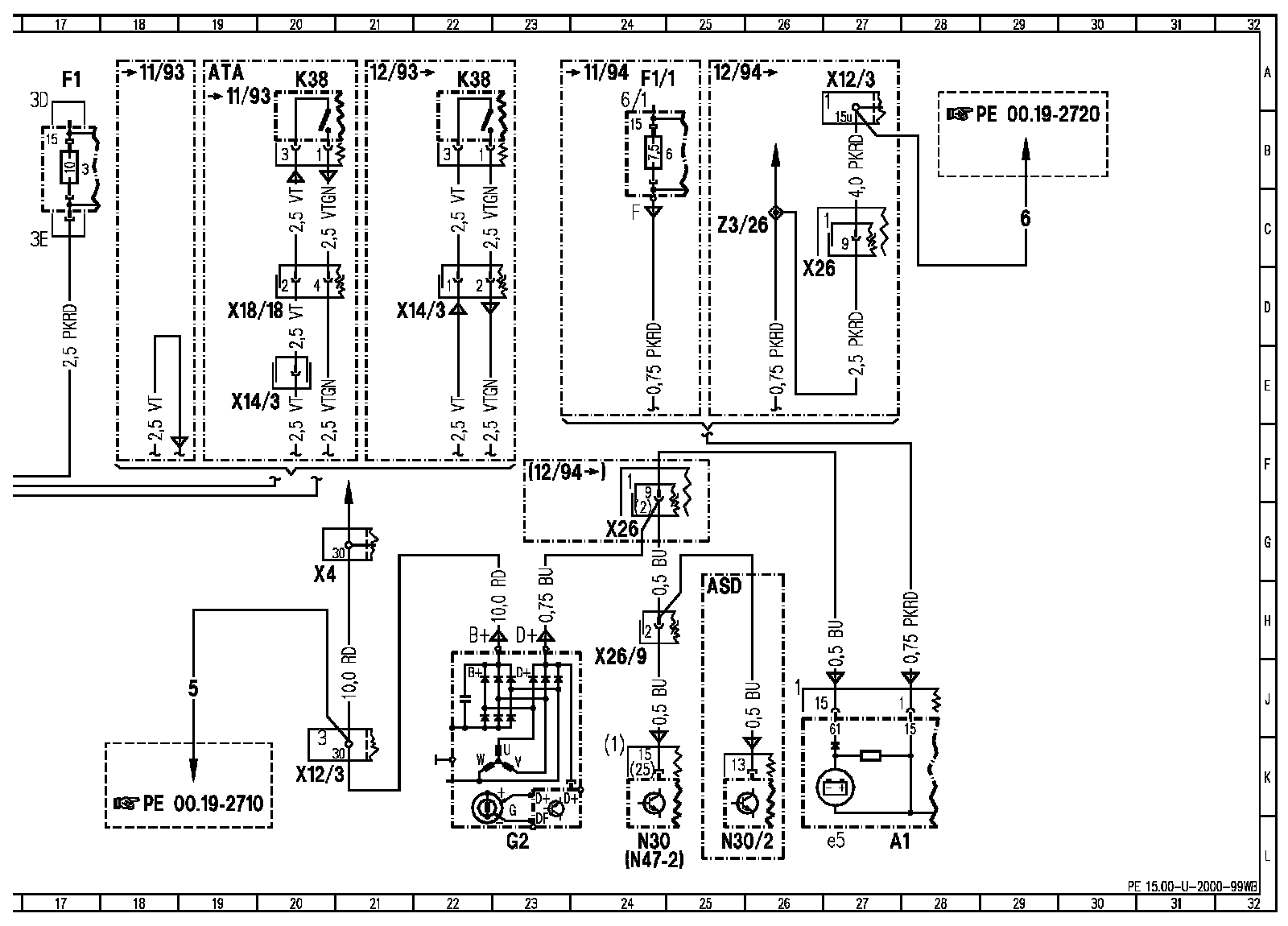

Wiring Diagram, Part 2:

Component Description/Coordinates, A1 To X4:

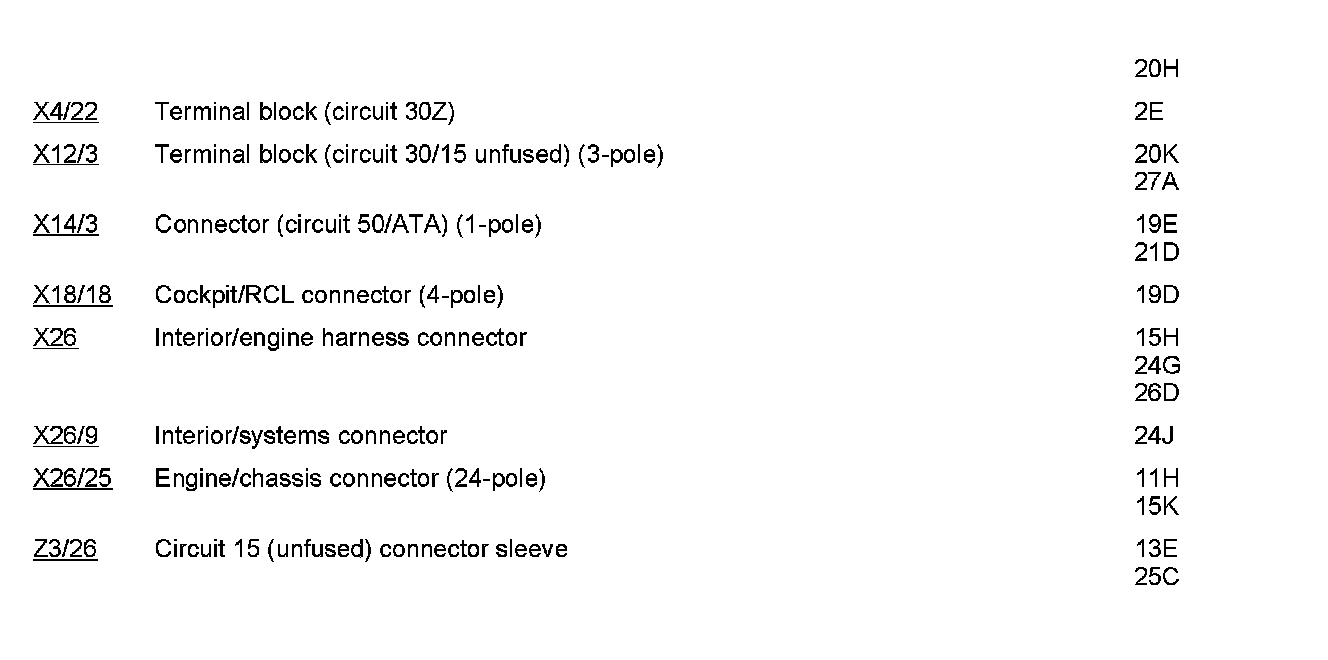

Component Description/Coordinates, X4/22 To Z3/26:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
