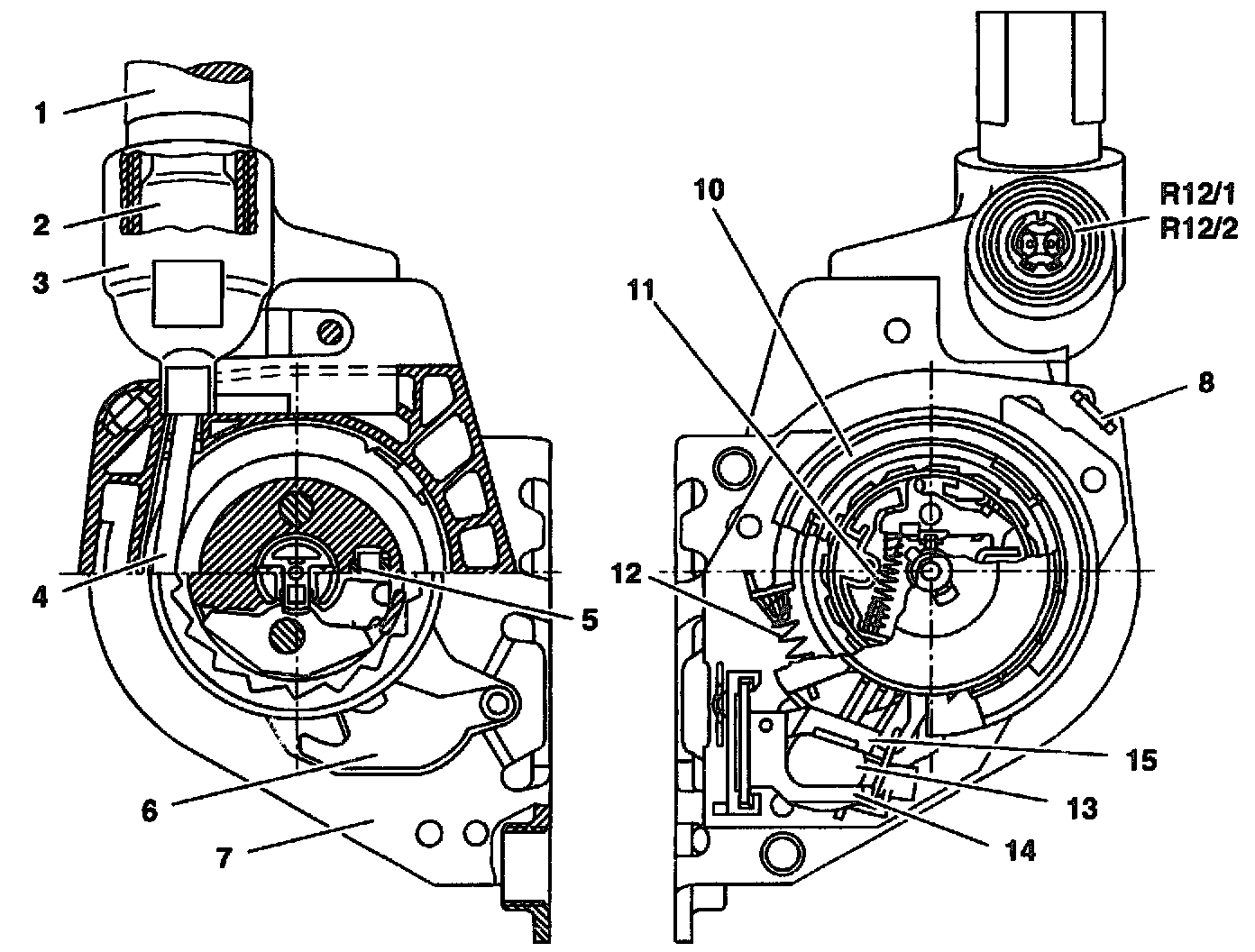

Seat Belt Tensioner

Model 202 up to 31.5.97






1 Housing
2 Piston
3 Cylinder
4 Pull cable
5 Locking pawl
6 Lever
7 Housing
8 Viewing window
10 Tension spring
11 Spring
12 Return spring
13 Pressure spring
14 Comfort pawl
15 Locking lever
R12/1 Front left ETR squib
R12/2 Front right ETR squib
