Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1994
>>
C 220 (202.022) L4-2.2L (111.961)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Locations
>>
Component Locations
>>

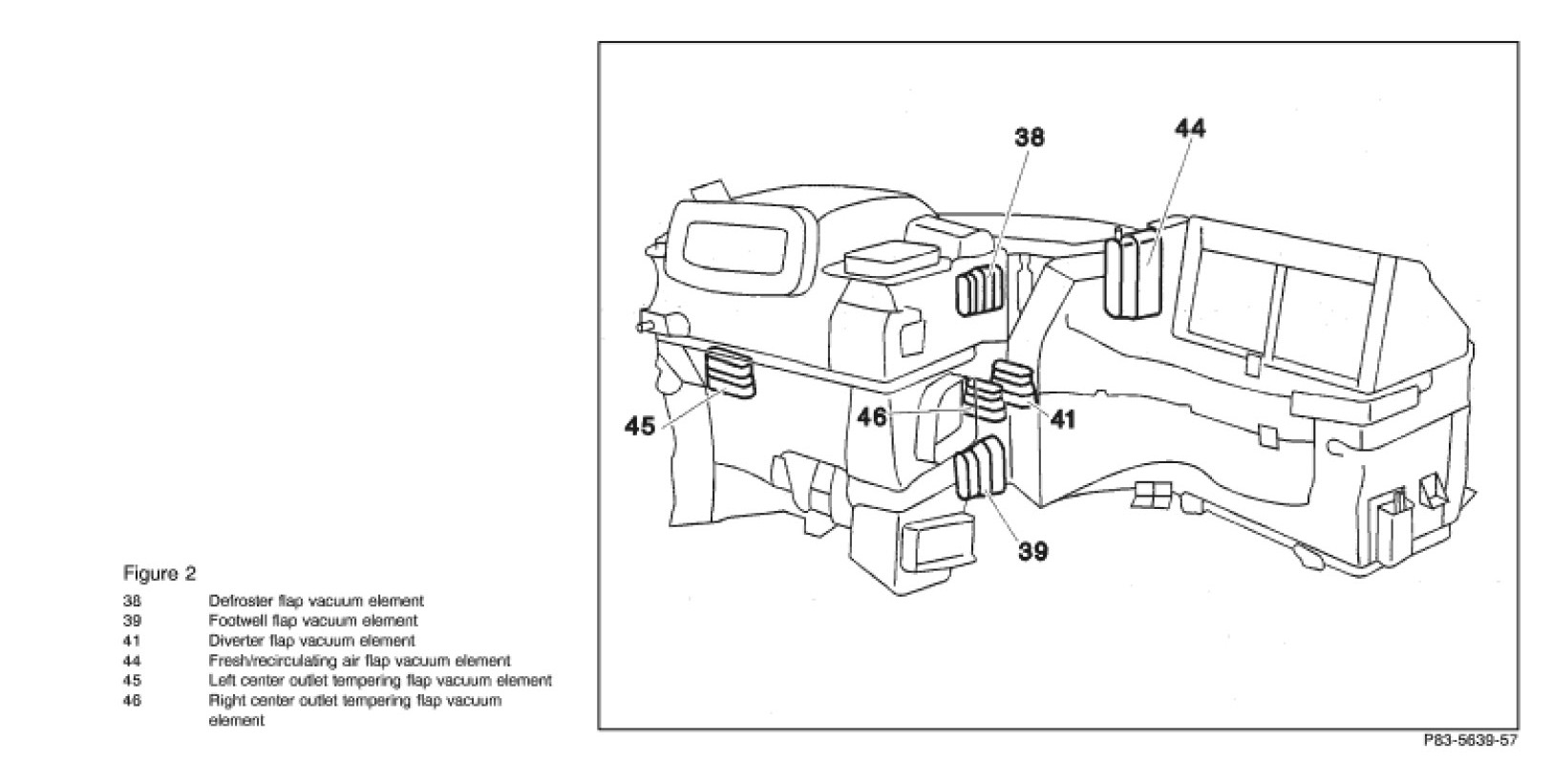

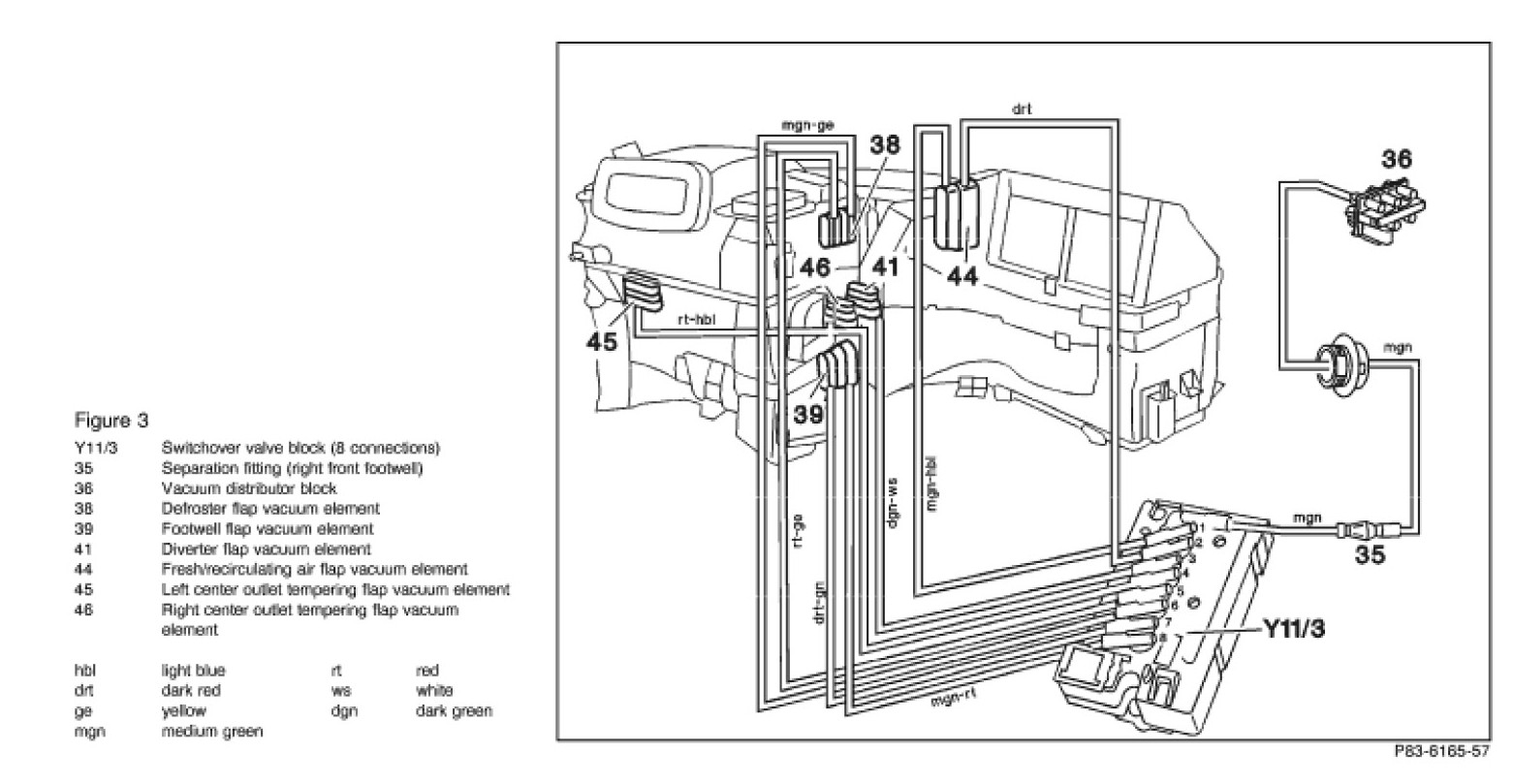

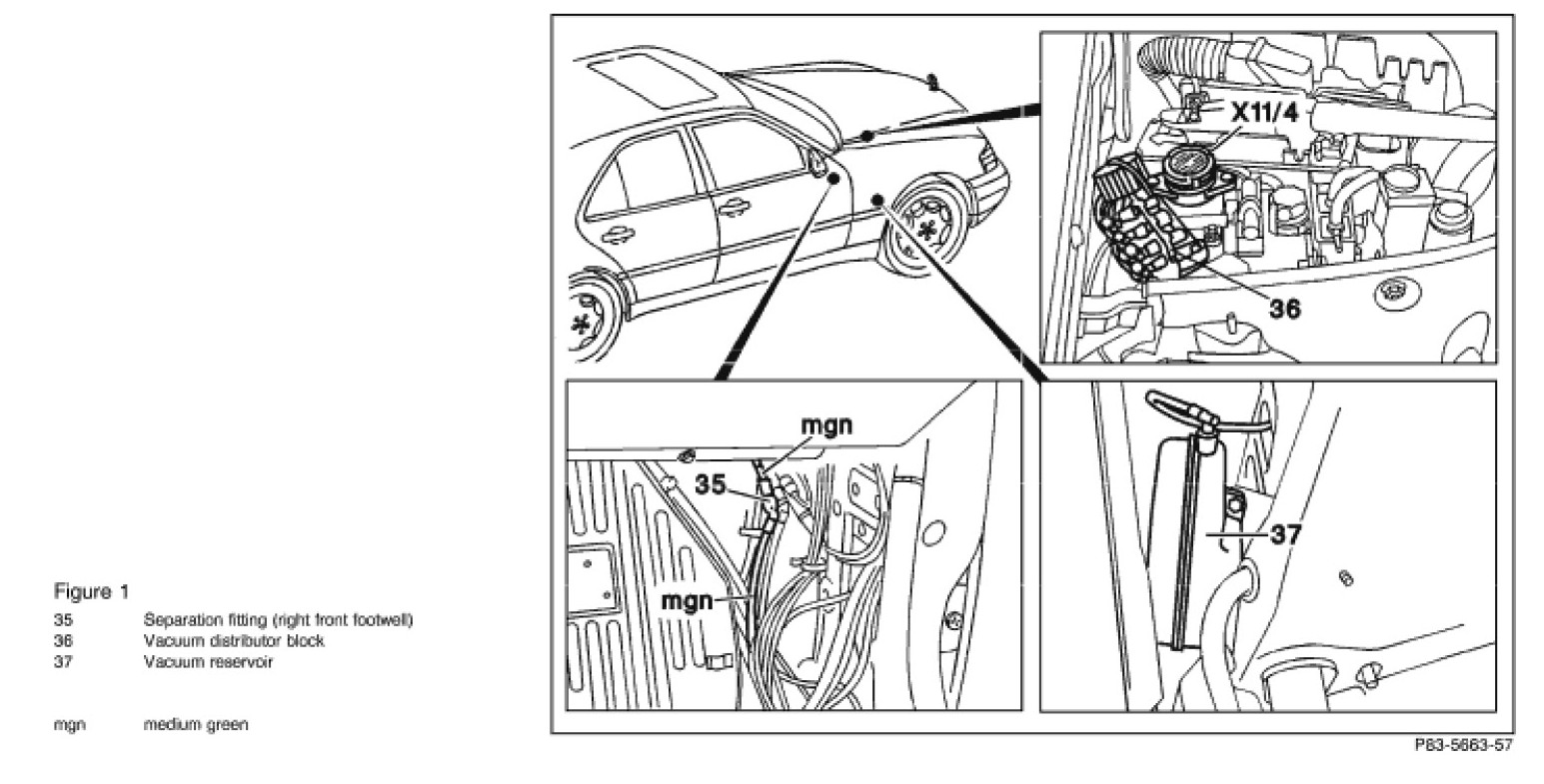

Pneumatic System - Component Locations [31]
Pneumatic System - Component Locations [31]
Air Conditioning (A/C)
Models 202 (up to MY 1995)
Pneumatic Test Program [PTP] - Component Locations
