Displaying & Reading Trouble Codes (DTC Memory)

Air Conditioning (A/C)

Models 202 (up to MY 1995)

Diagnostic trouble Code Memory [15]

Preparations For DTC Readout:

Special Tools:

DTC 01/- To 10/010:

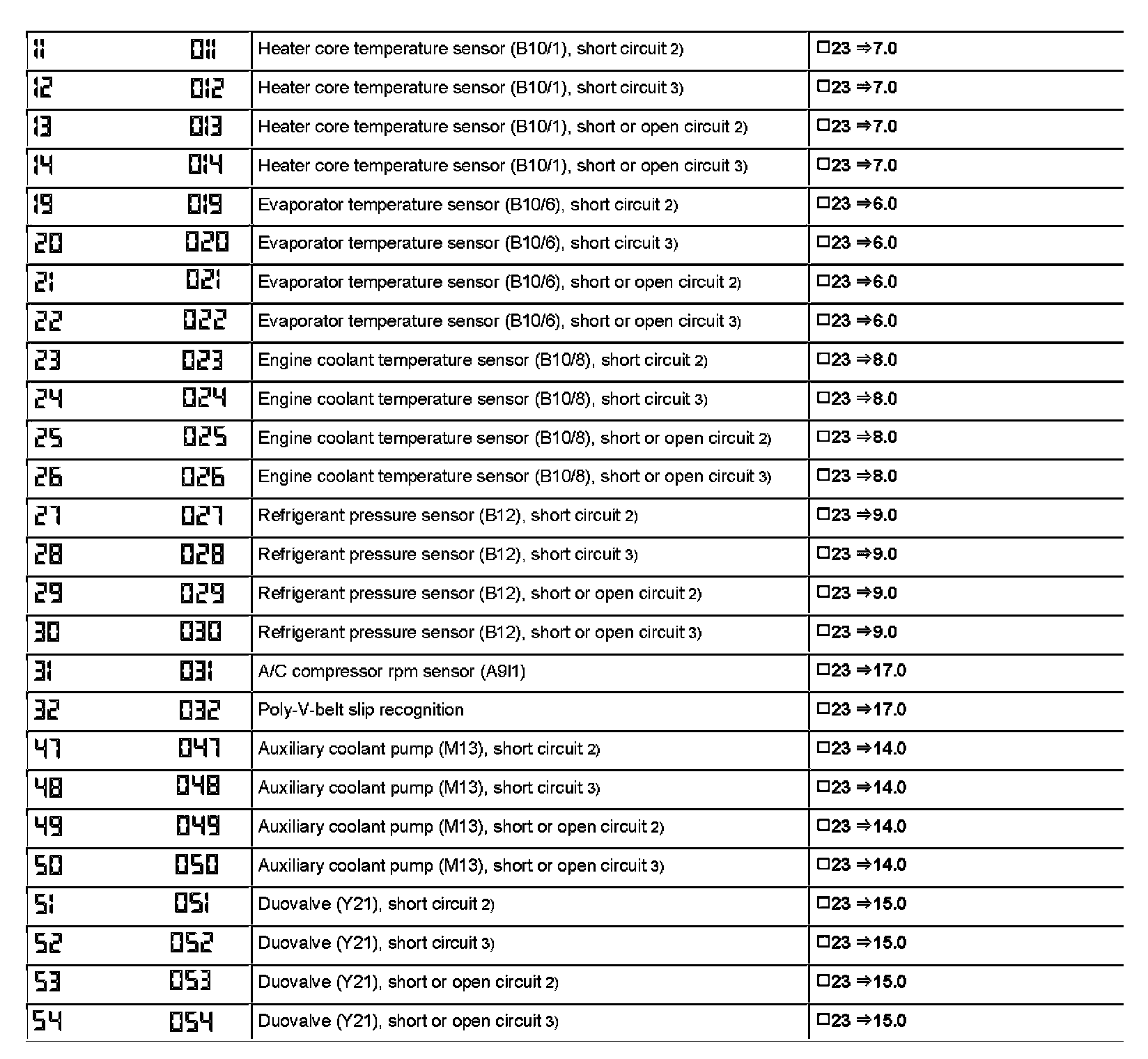

DTC 11/011 To 54/054:

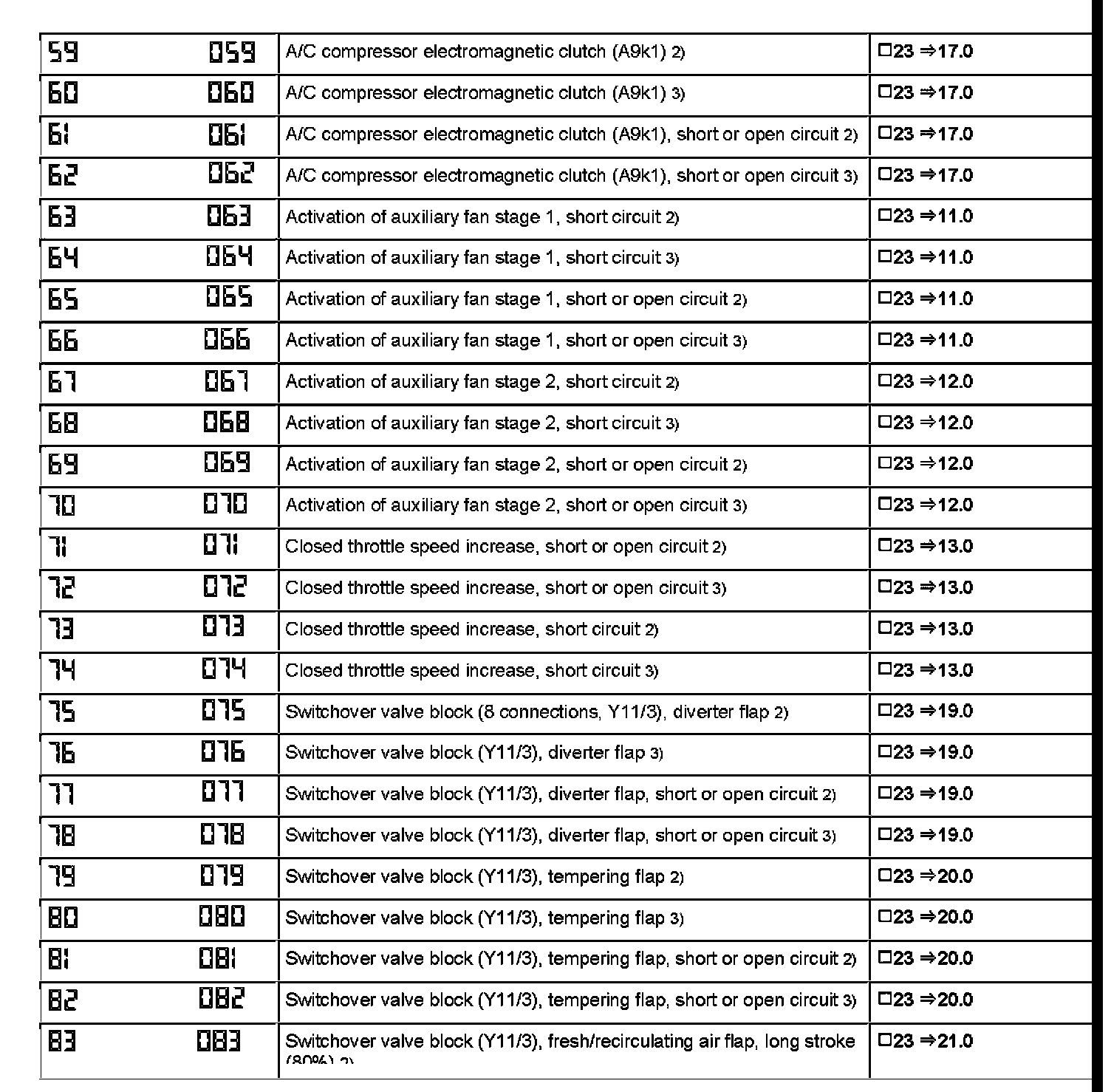

DTC 59/059 To 83/083:

DTC 84/084 To 103/103:

DTC 104/104 To 106/106:
