Initial Inspection (Function Test [11])

Air Conditioning (A/C)

Models 202 (up to MY 1995)

Function Test [11]

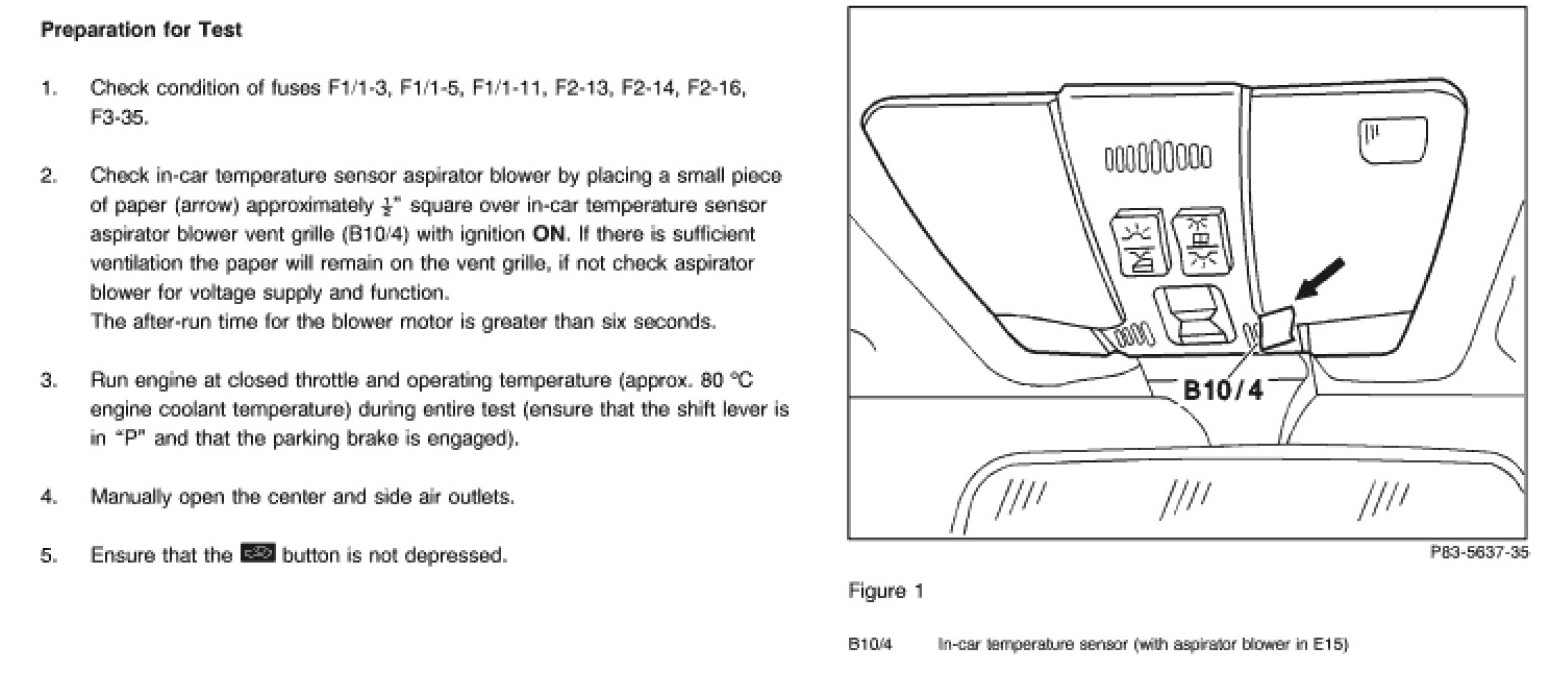

Test Steps 1.0 - 3.0:

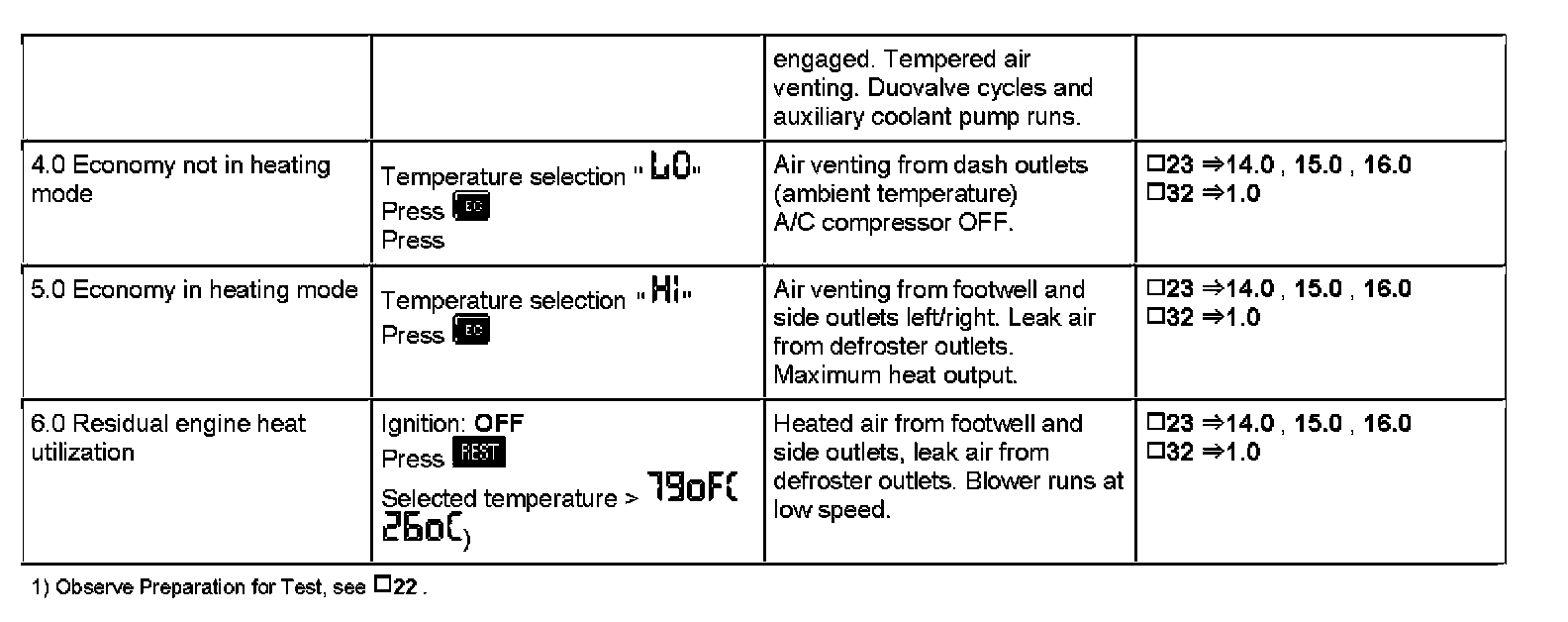

Test Steps 3.0 (Continued) - 6.0:
