Daytime Dipped Headlight PE82.10-U-2100WA

Daytime Dipped Headlight PE82.10-U-2100WA

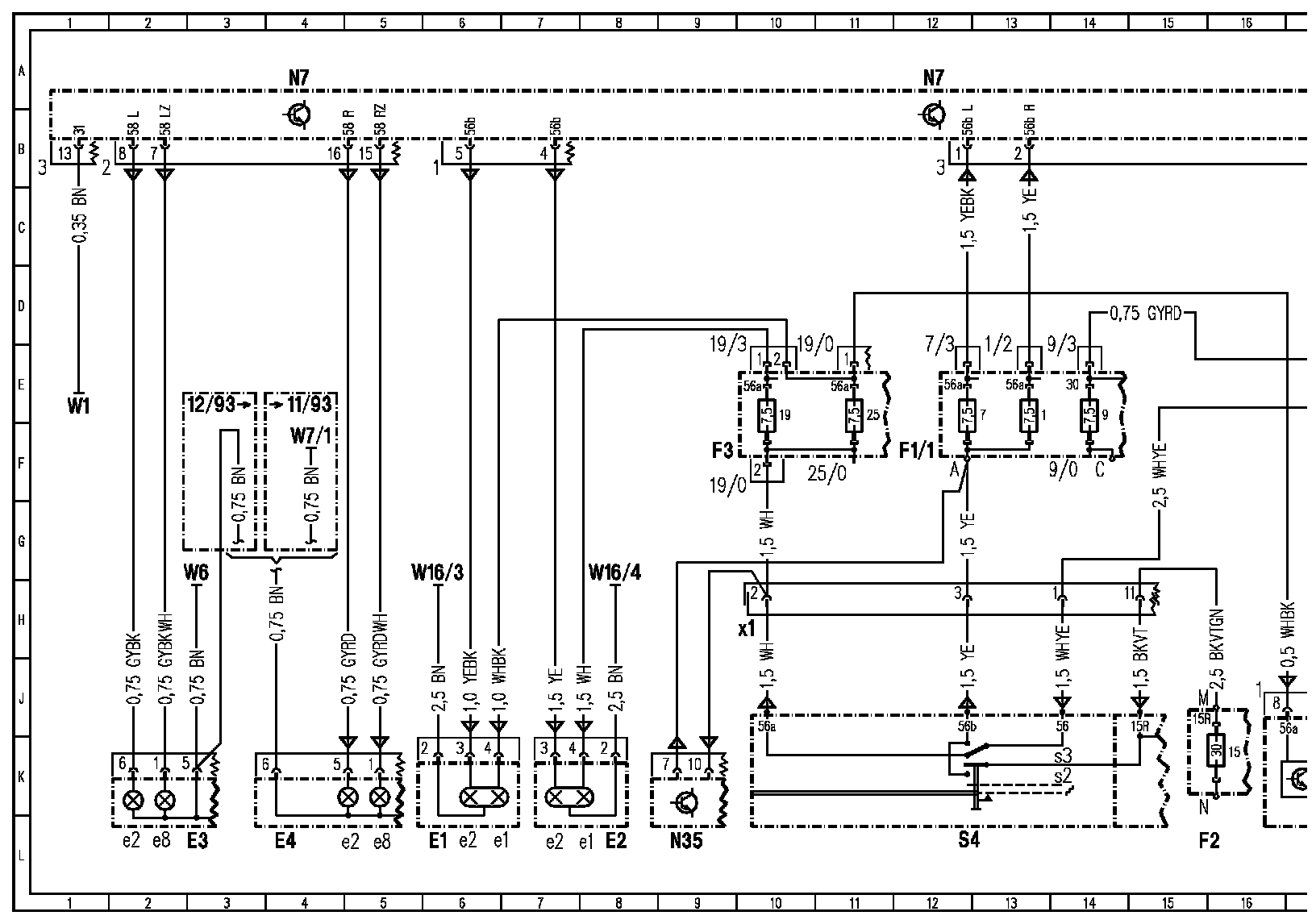

Wiring Diagram, Part 1:

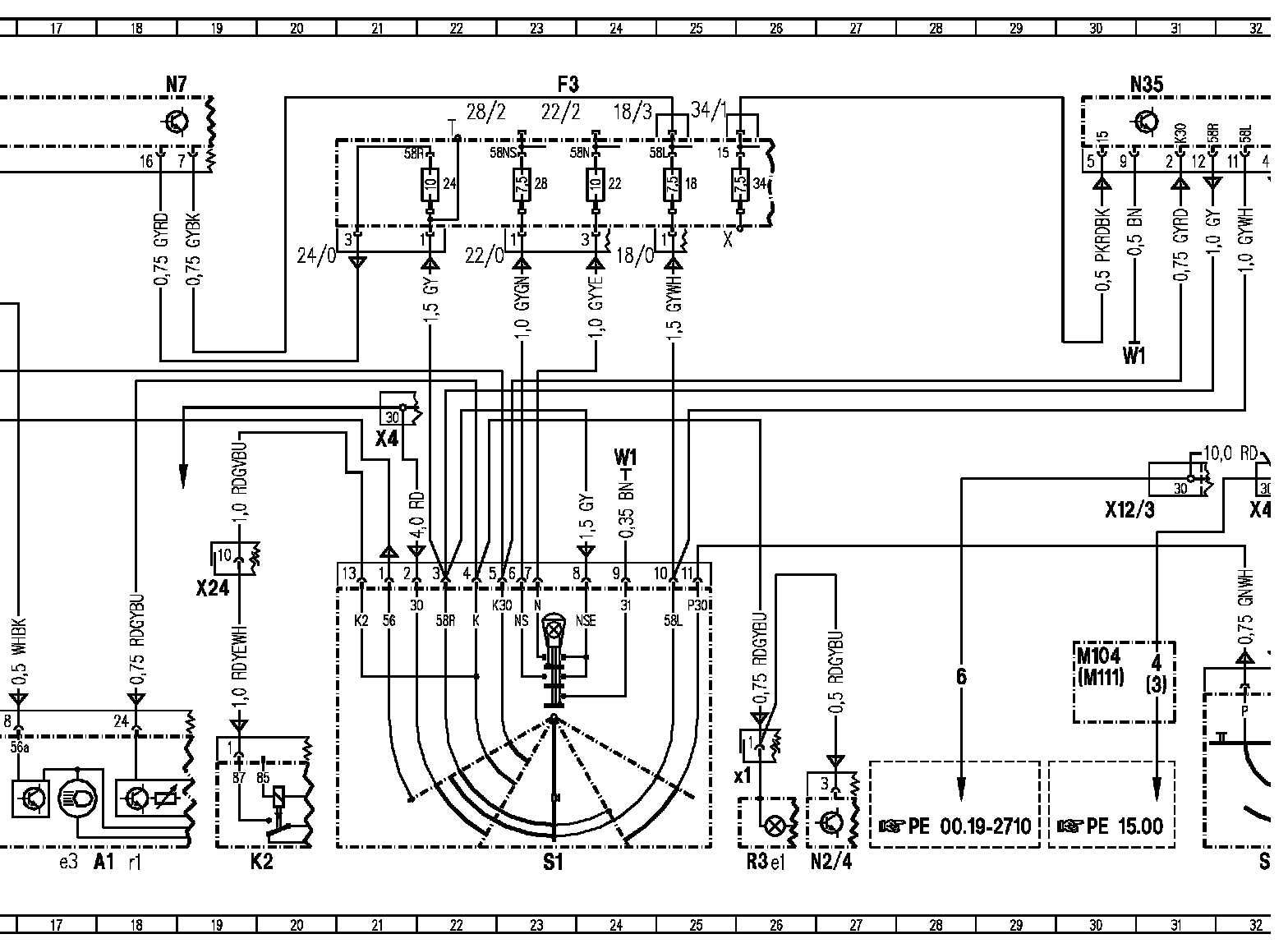

Wiring Diagram, Part 2:

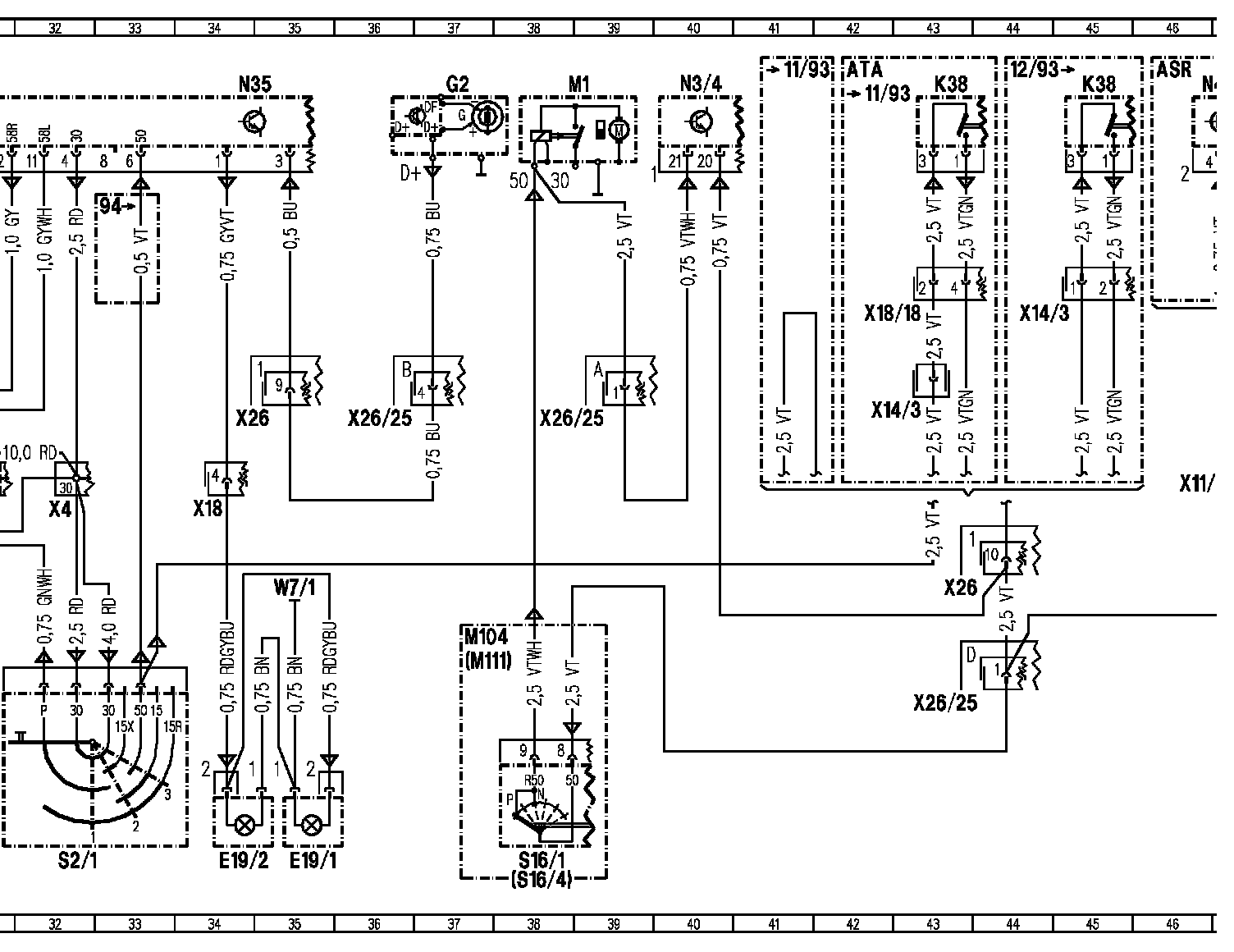

Wiring Diagram, Part 3:

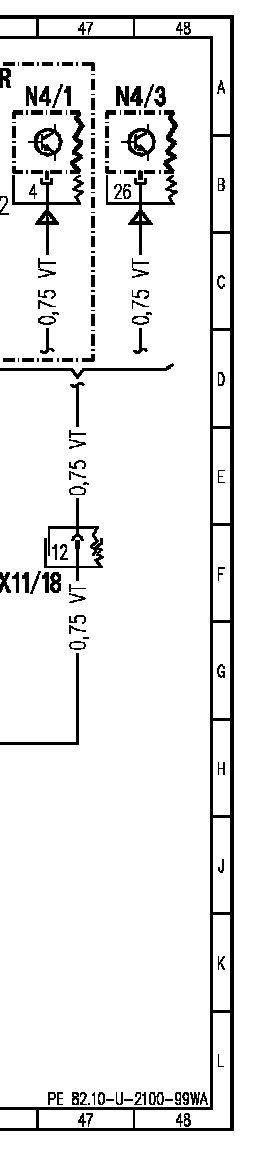

Wiring Diagram, Part 4:

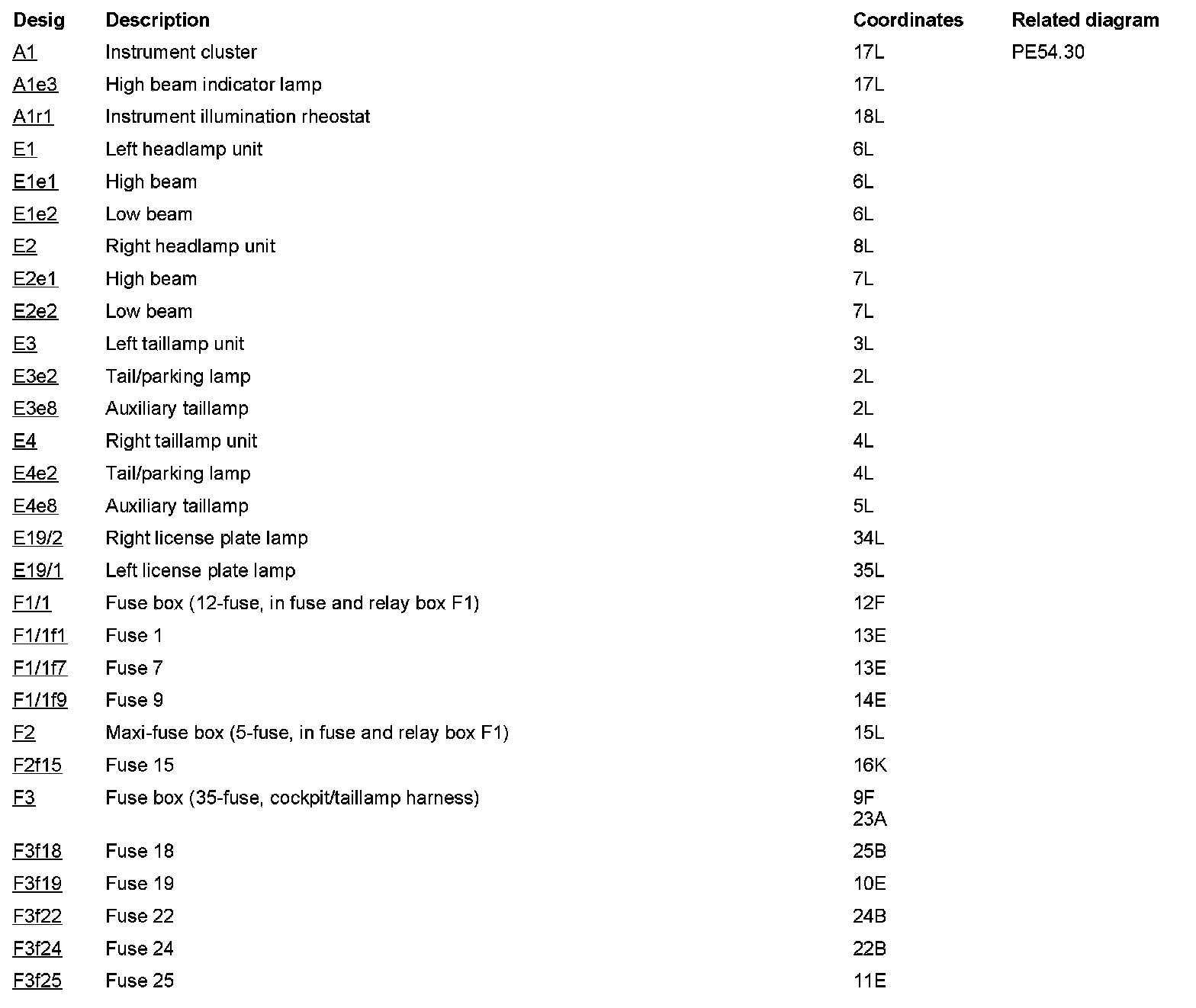

Component Description/Coordinates, A1 To F3f25:

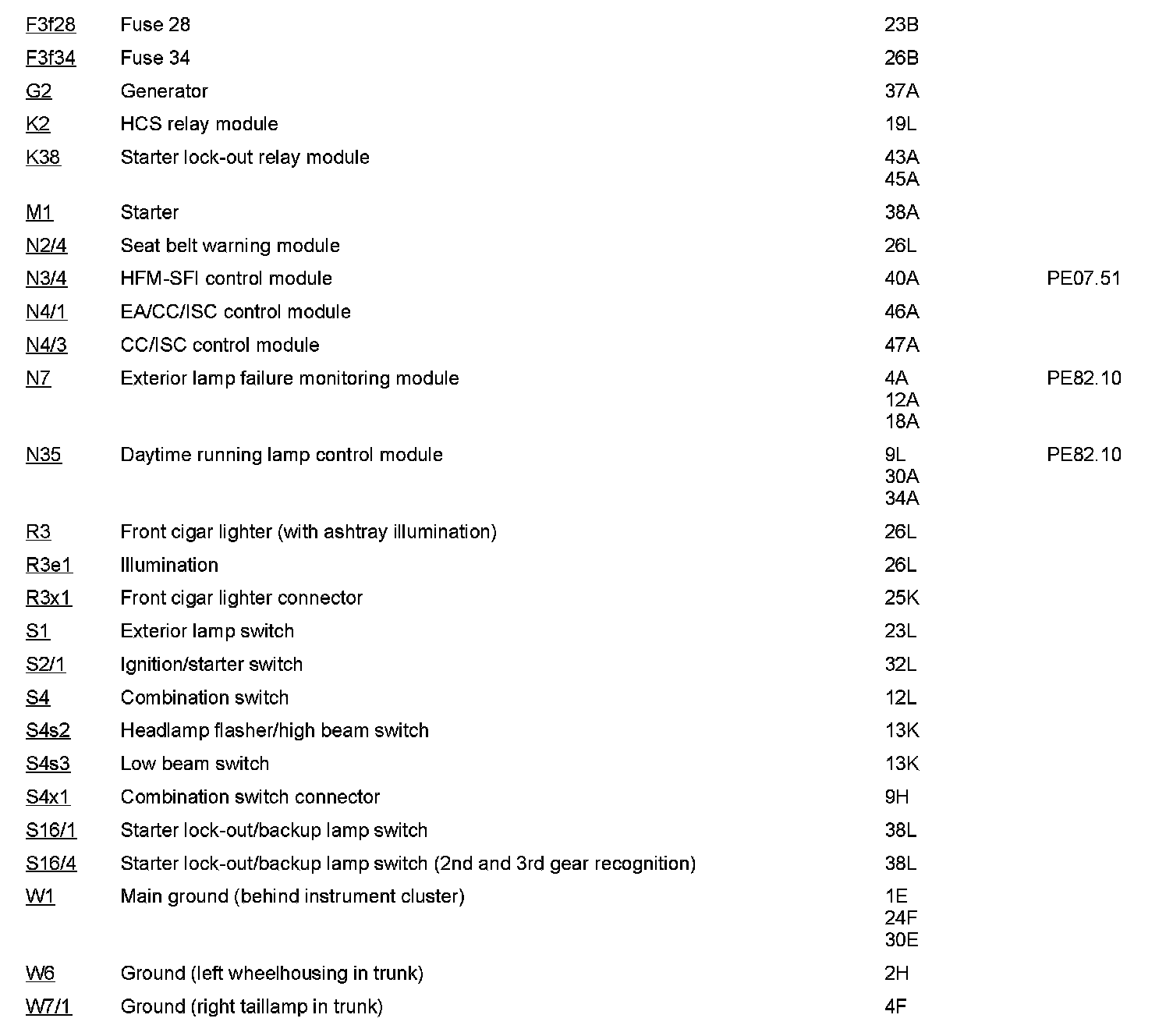

Component Description/Coordinates, F3f28 To W7/1:

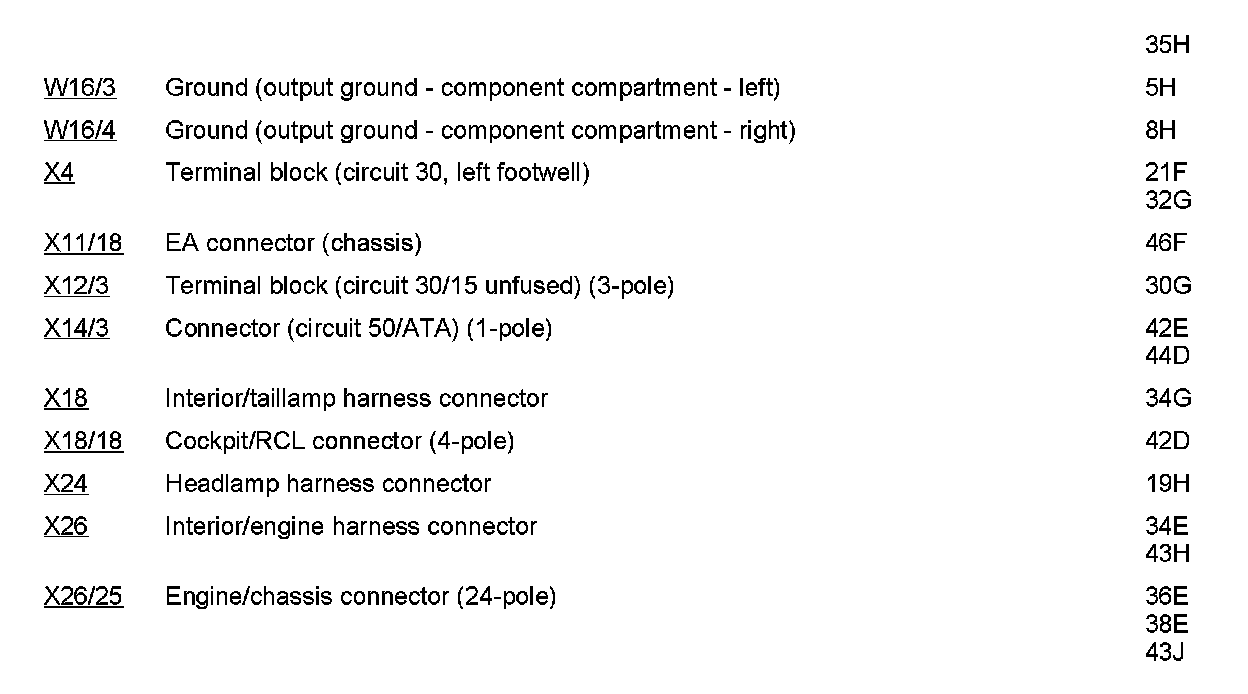

Component Description/Coordinates, W16/3 To X26/25:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
