Exterior Lights PE82.10-U-2000WA

Exterior Lights PE82.10-U-2000WA

Wiring Diagram, Part 1:

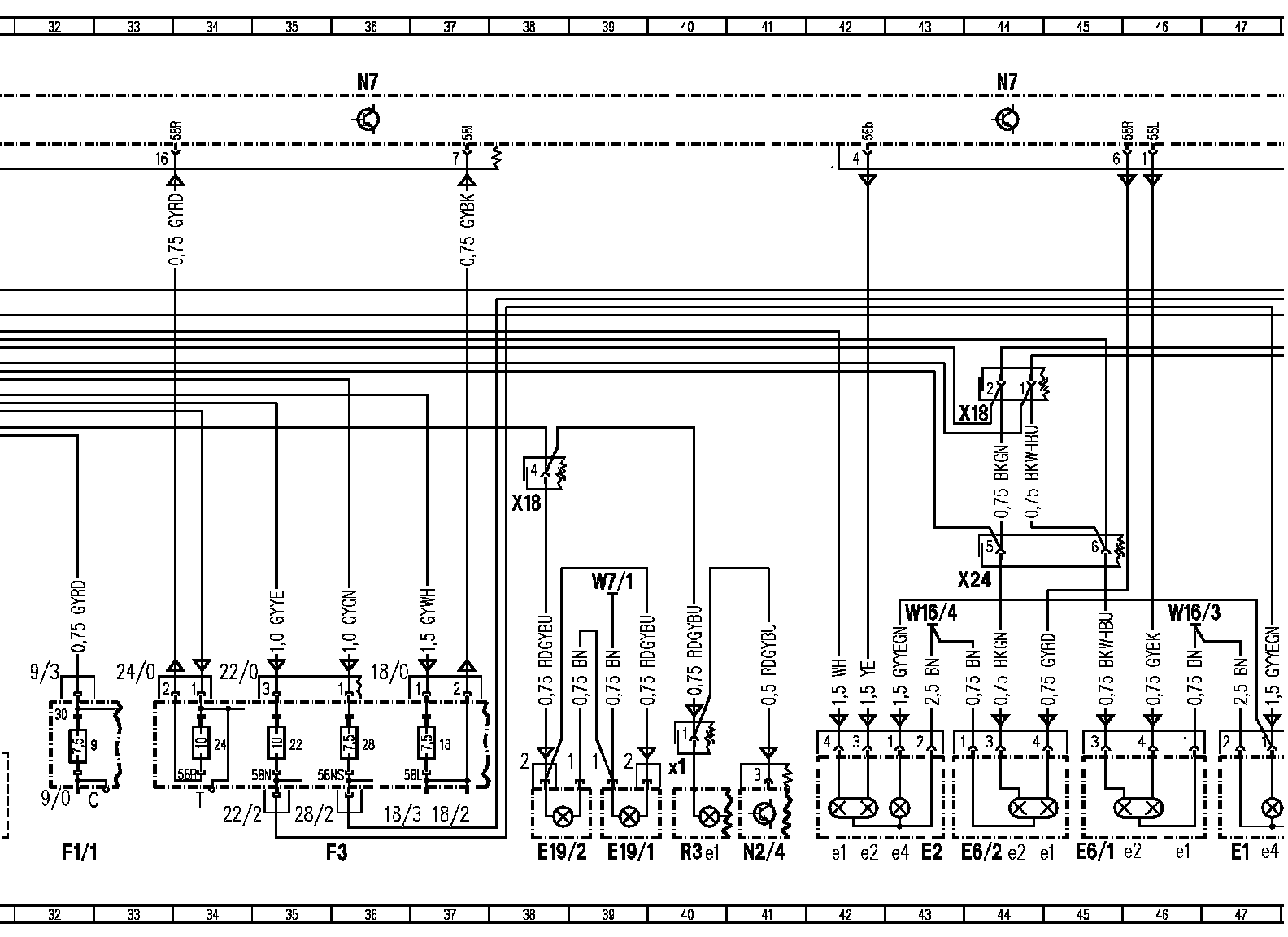

Wiring Diagram, Part 2:

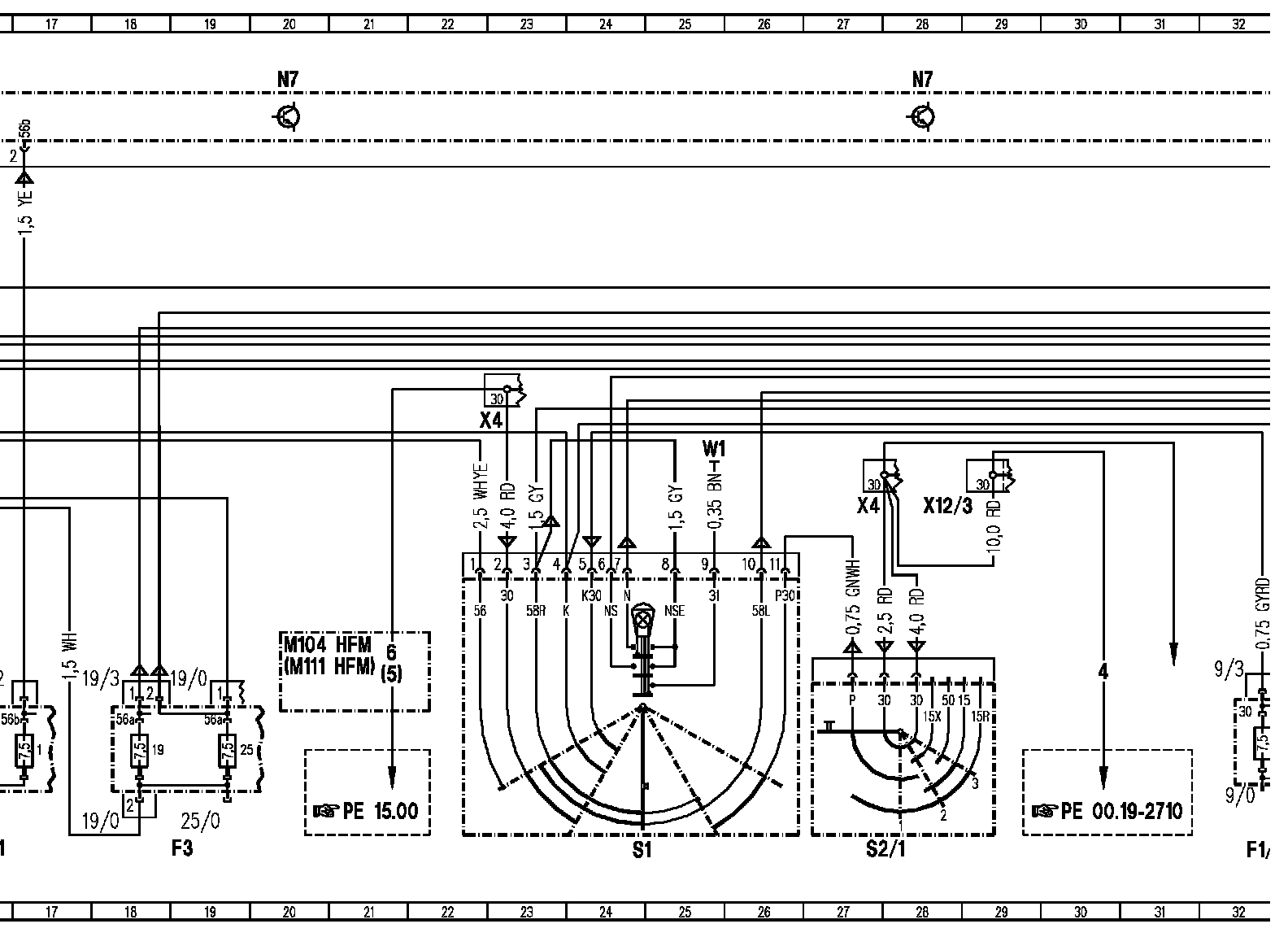

Wiring Diagram, Part 3:

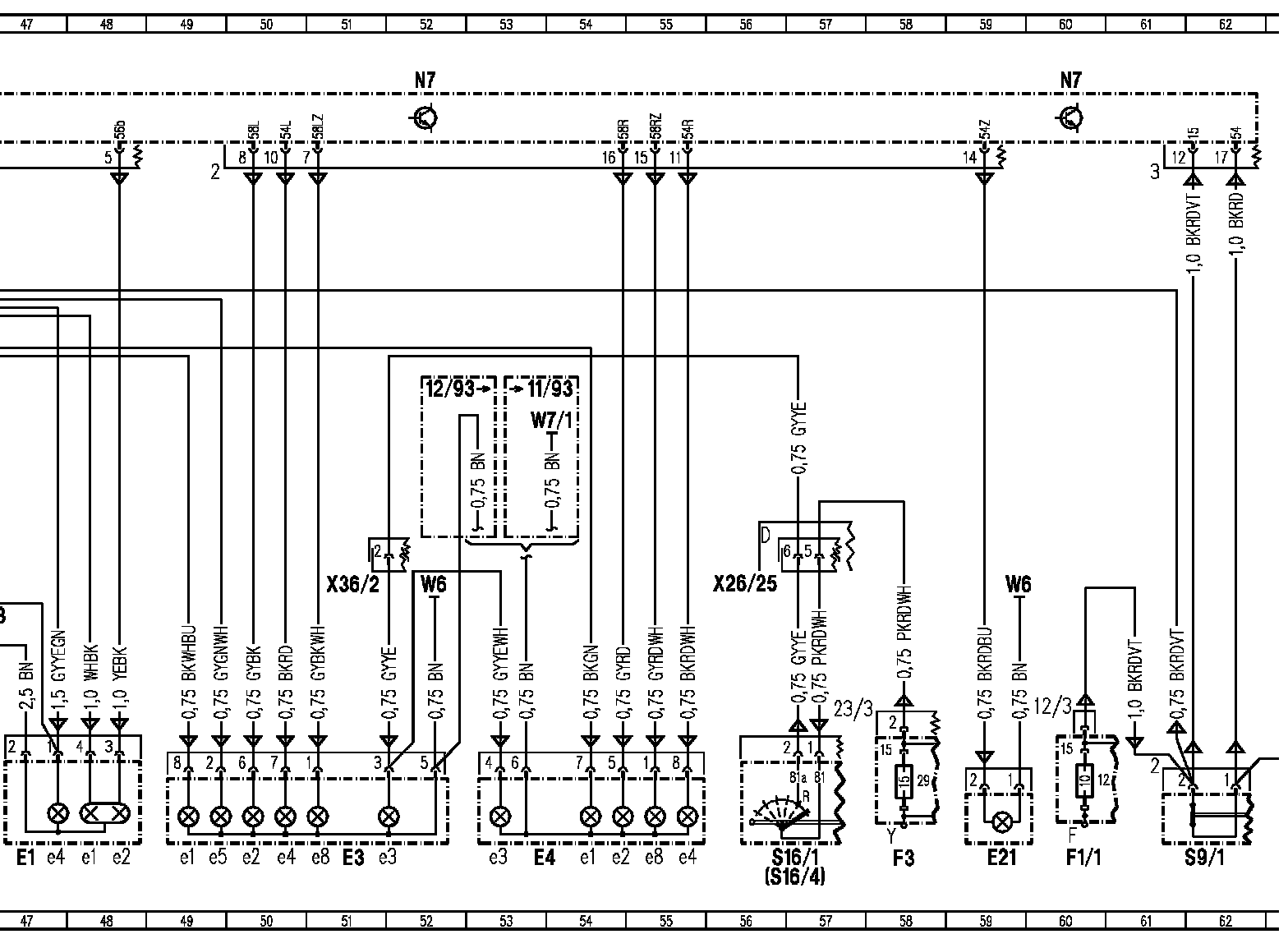

Wiring Diagram, Part 4:

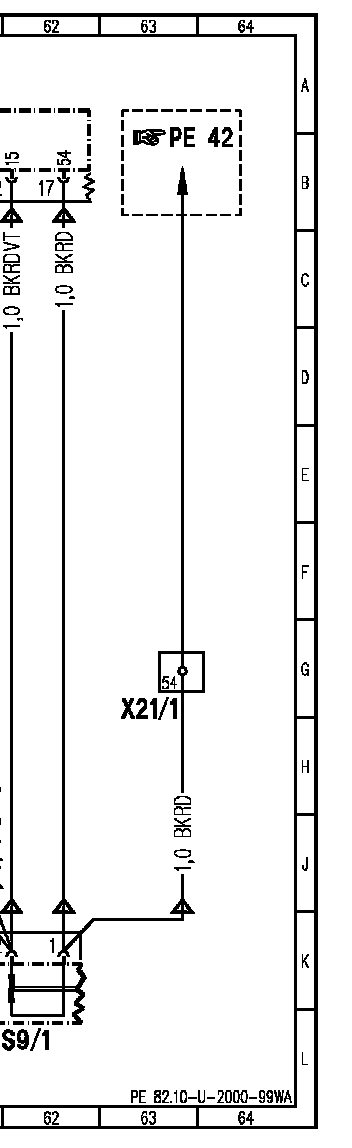

Wiring Diagram, Part 5:

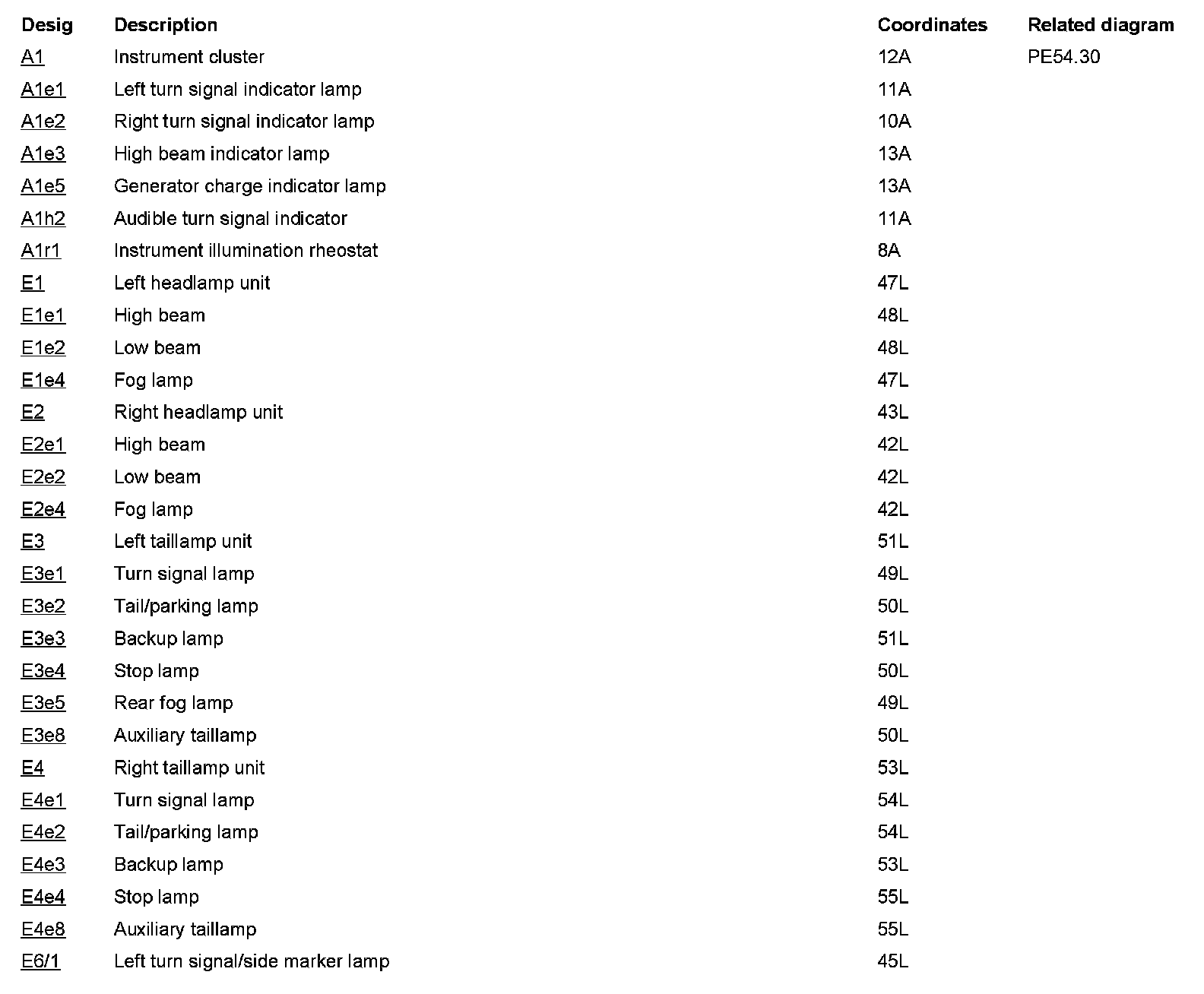

Component Description/Coordinates, A1 To E6/1:

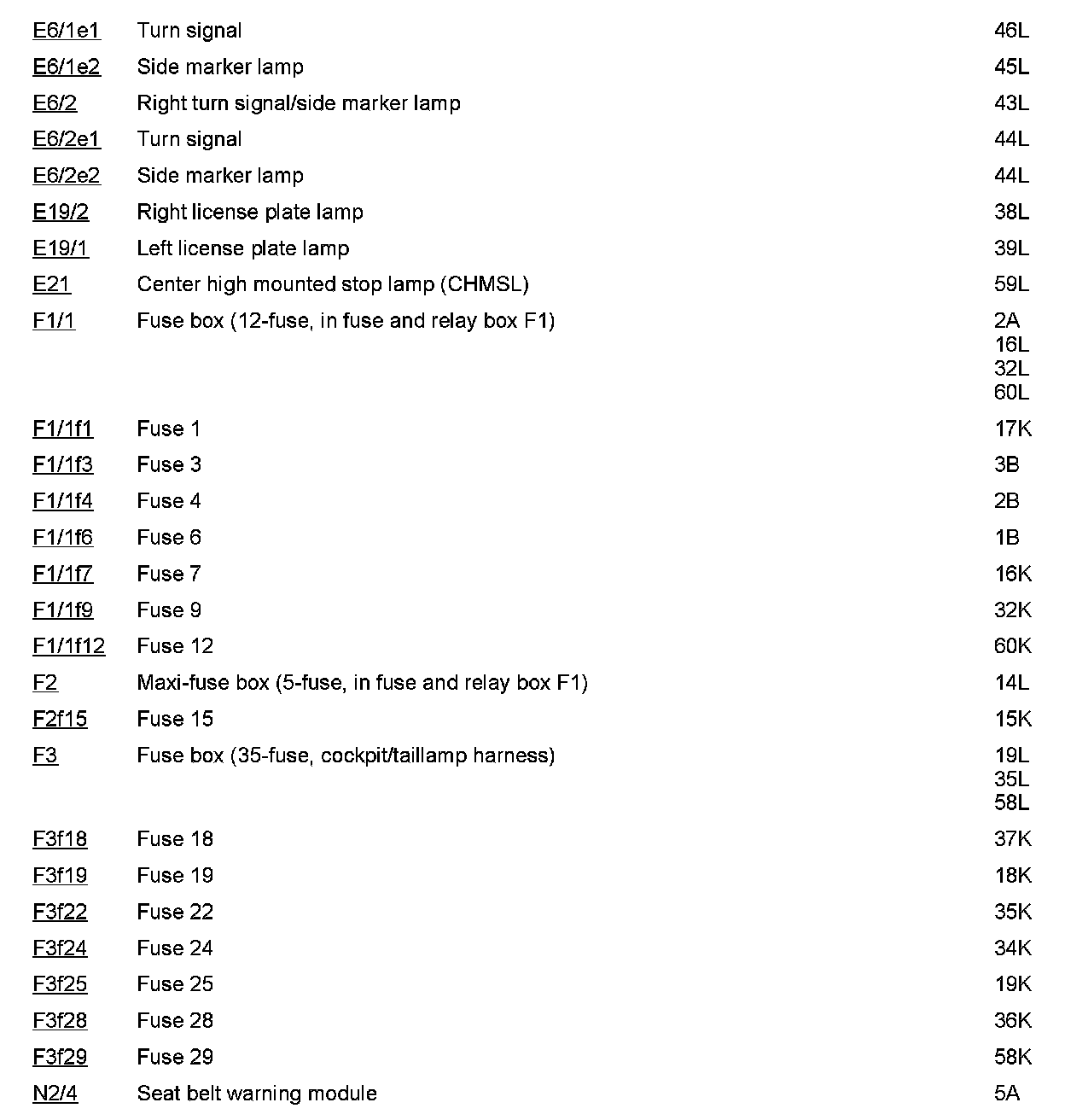

Component Description/Coordinates, E6/1e1 To N2/4:

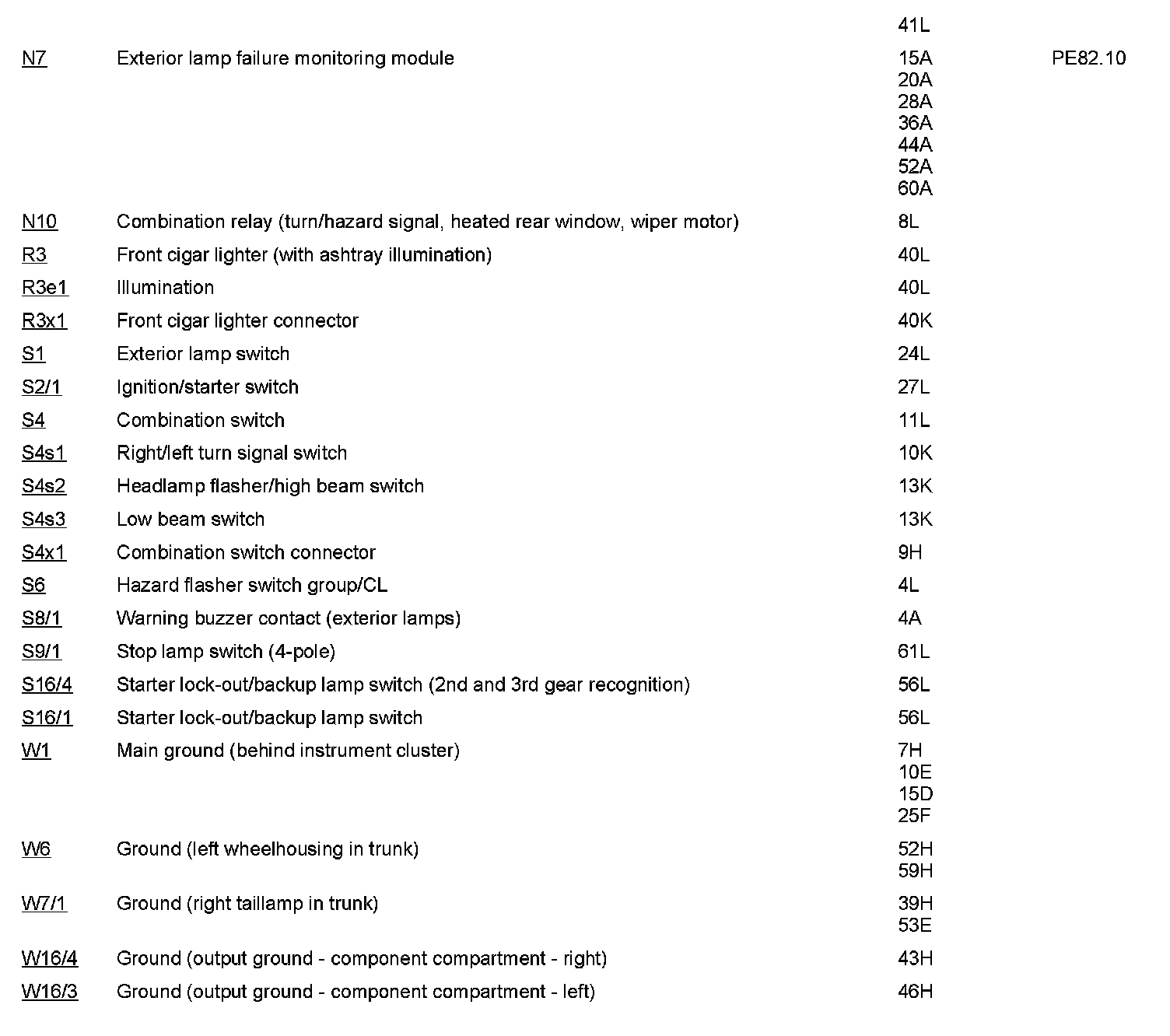

Component Description/Coordinates, N7 To W16/3:

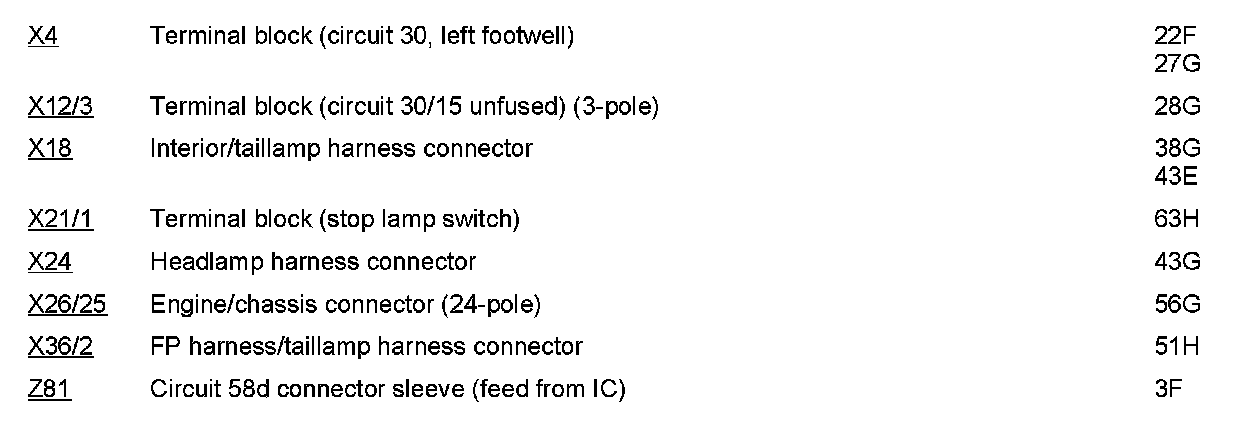

Component Description/Coordinates, X4 To Z81:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
