License Plate Lamp: Service and Repair

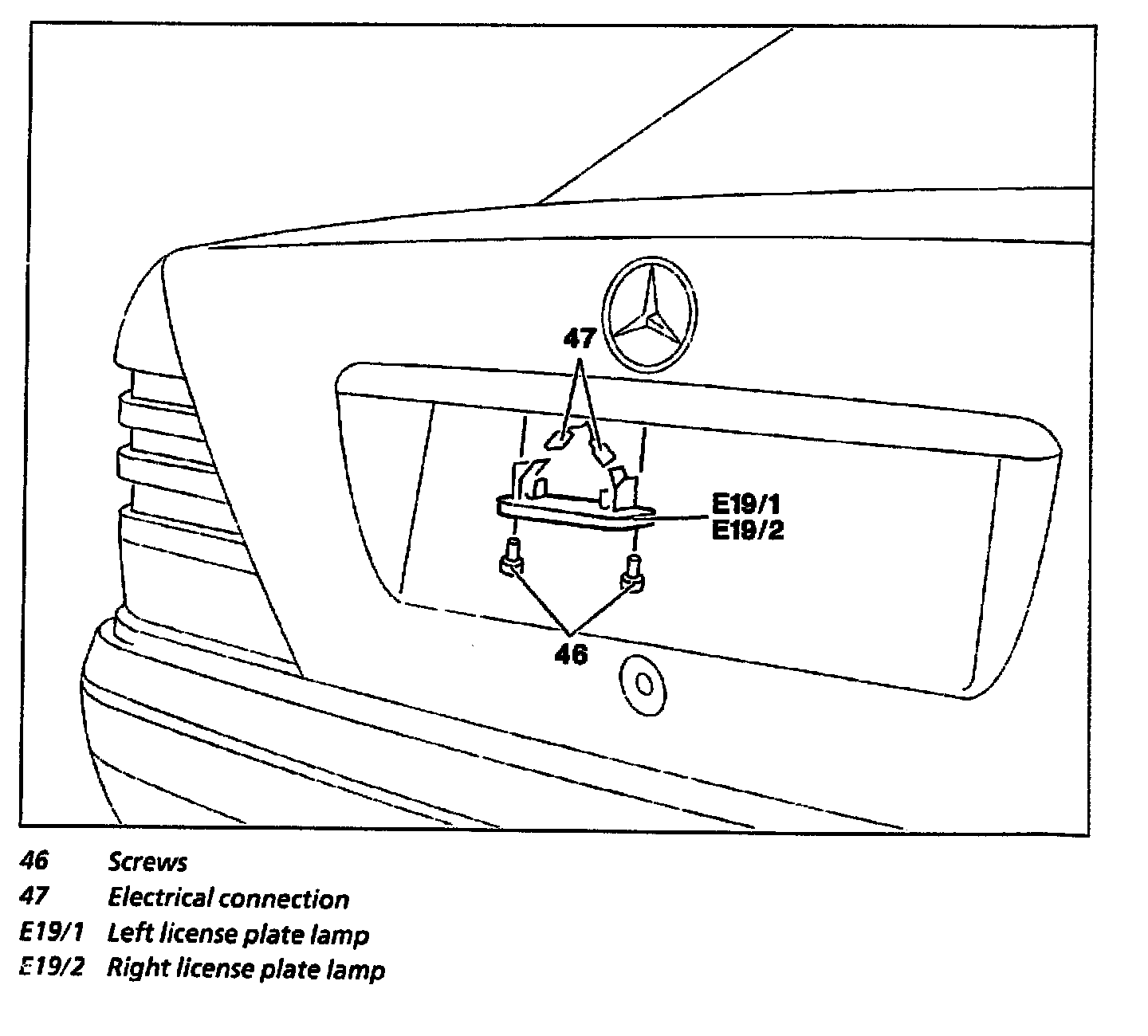

NOTE: The image shows removal of the license plate lamp on model 202 sedan. Removal on the T-model 202 and model 210 and on roadster model 129 is identical.

Removal, Installation
1. Unscrew screws (46).
2. Take out license plate lamp (E19/1, E19/2).
3. Unplug electrical connectors (47).
4. Install in reverse order ensuring that the gasket is in good condition and properly seated.
5. Check for proper function.
