Home
>>
Mercedes Benz
>>
1994
>>
C 220 (202.022) L4-2.2L (111.961)
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
By Splice Location
By Splice Location

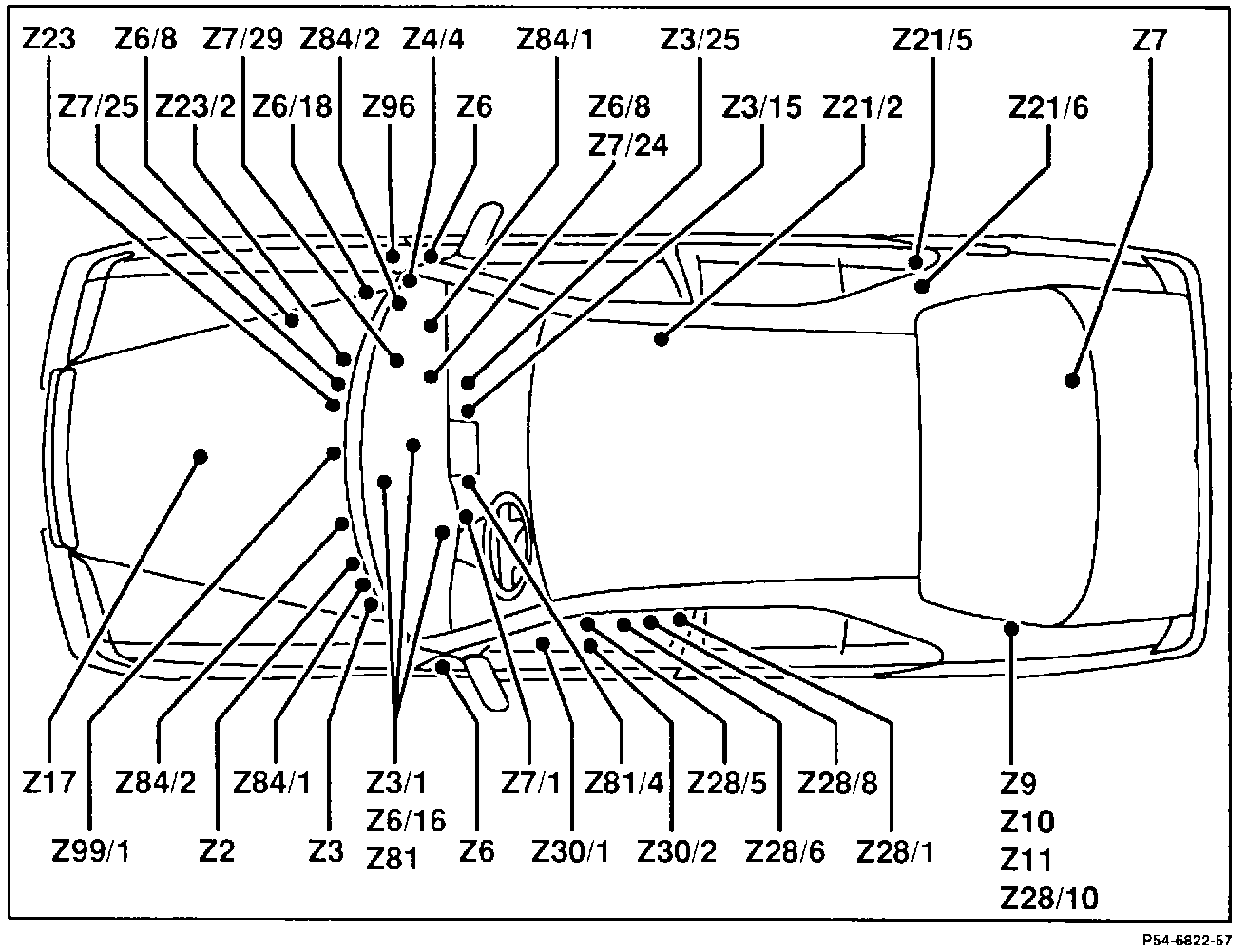

Z Solder Splices Location Diagram:

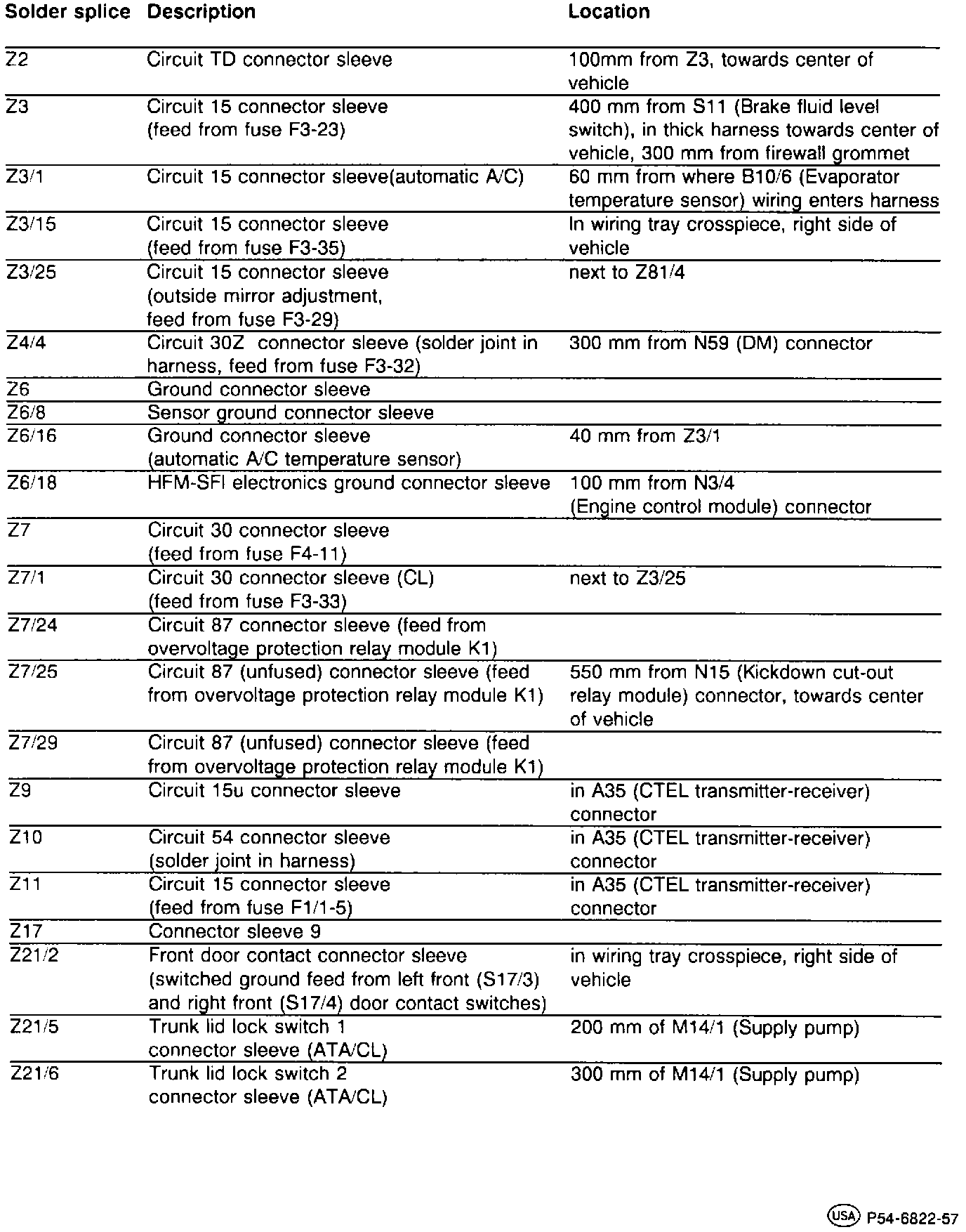

Z Solder Splices Location Index (Part 1 Of 2):
Z Solder Splices Location Index (Part 2 Of 2):
