Fuse Block: Application and ID
F1 - Fuse and Relay Box (In Engine Compartment)
Fuse And Relay Box (F1):

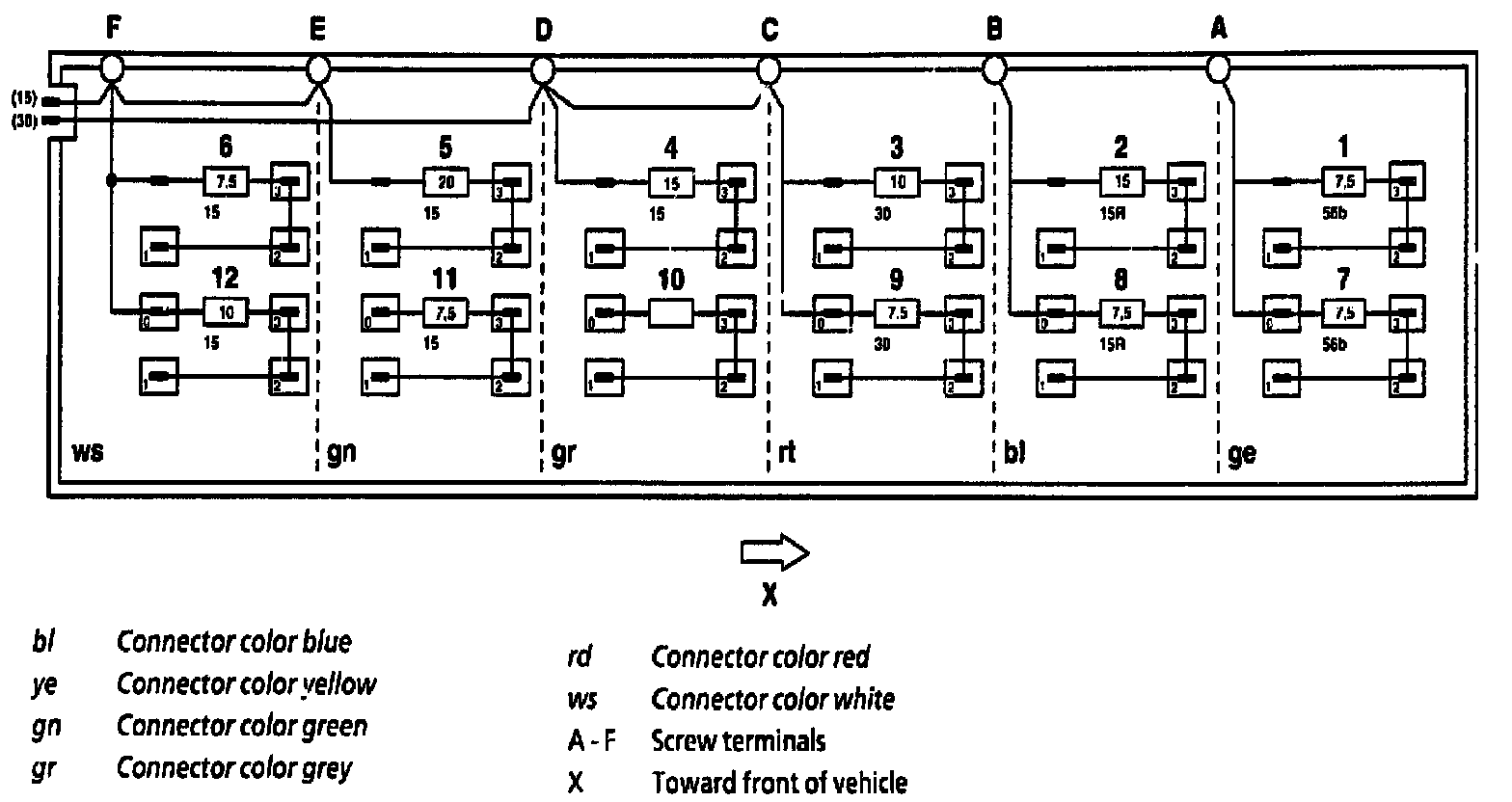

F1/1 - Fuse Box For 12 Fuses
Fuse 1 - 4:

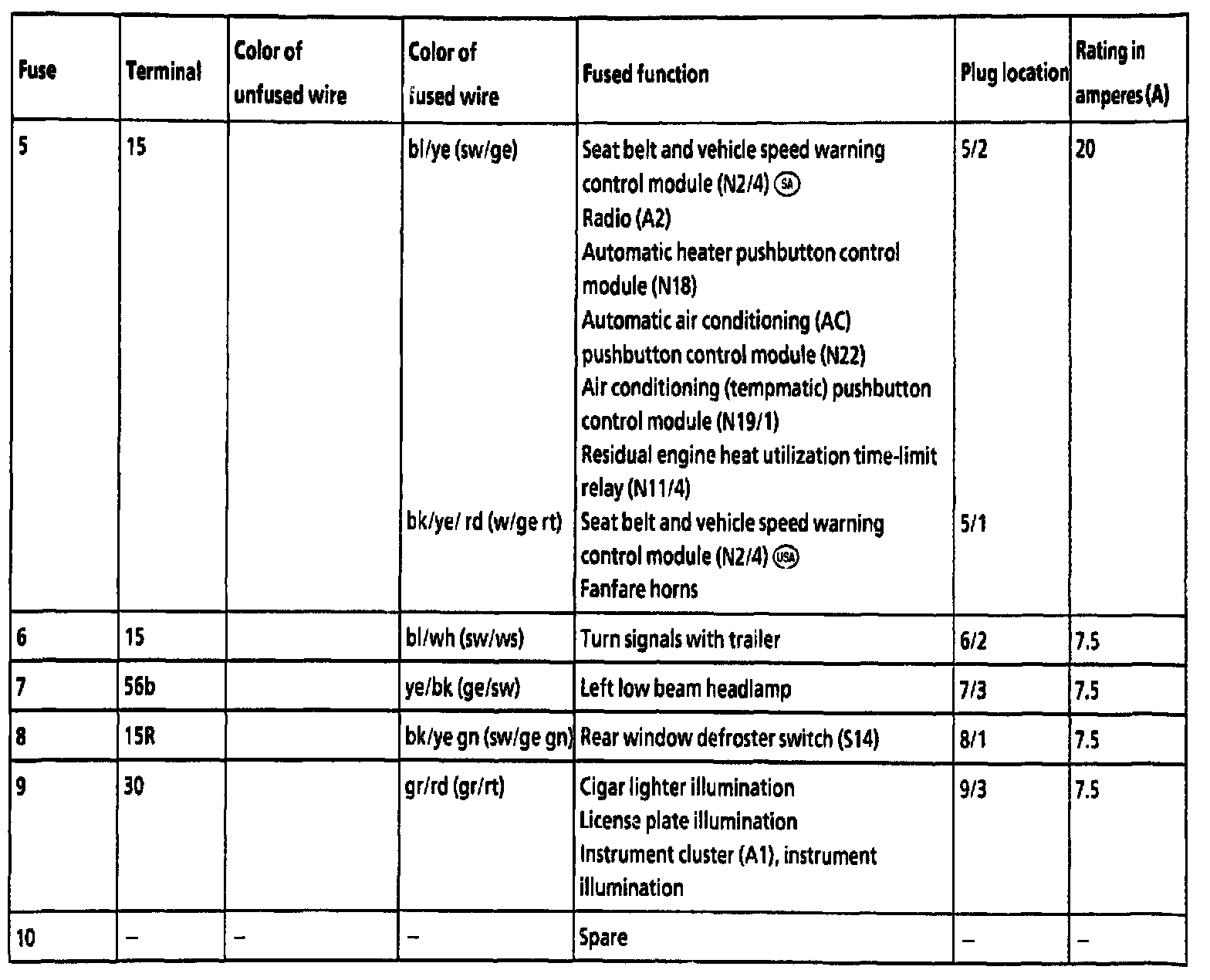

Fuse 5 - 10:

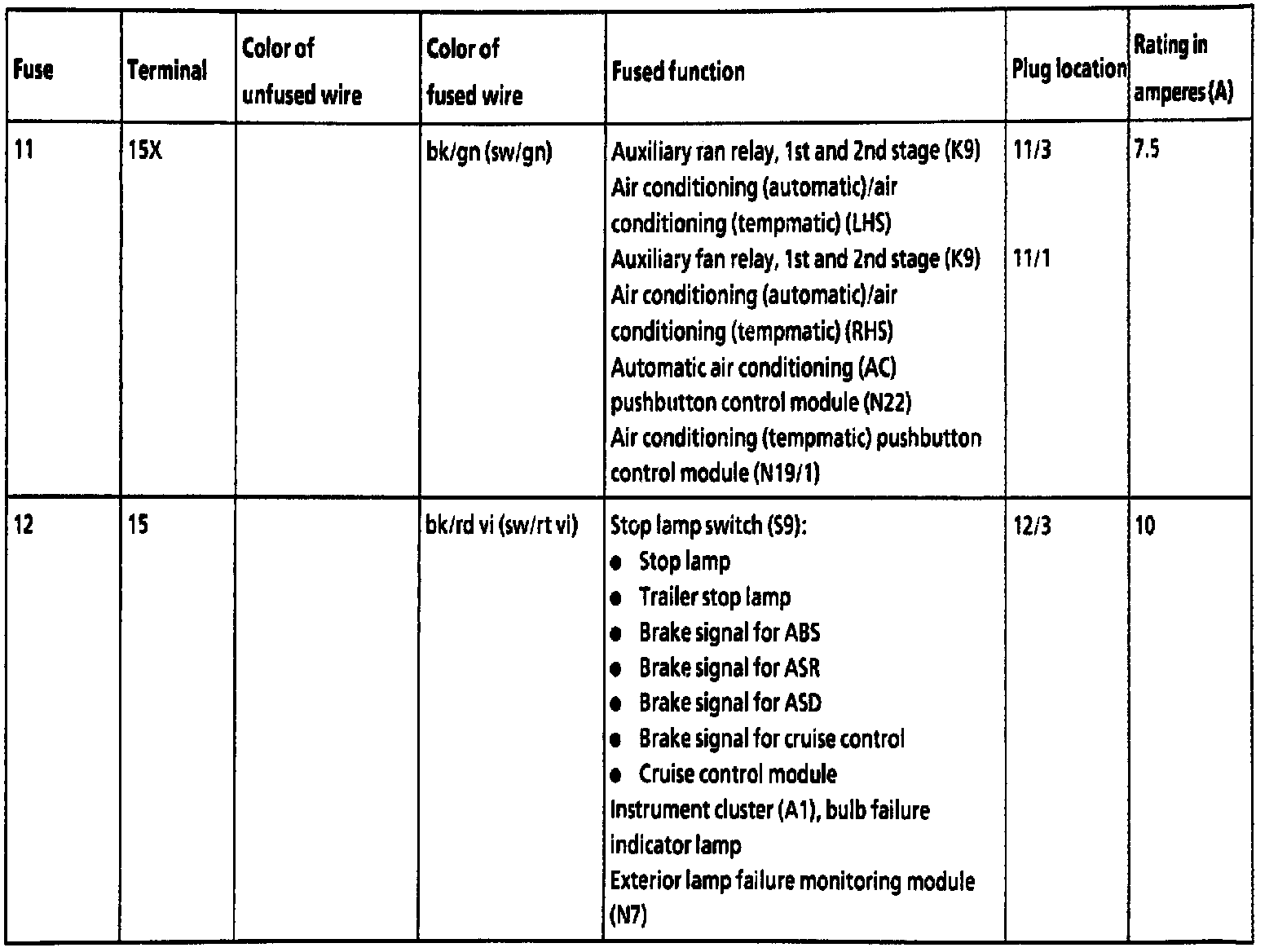

Fuse 11 - 12:
F2 - Maxi Fuse Box For 5 Fuses

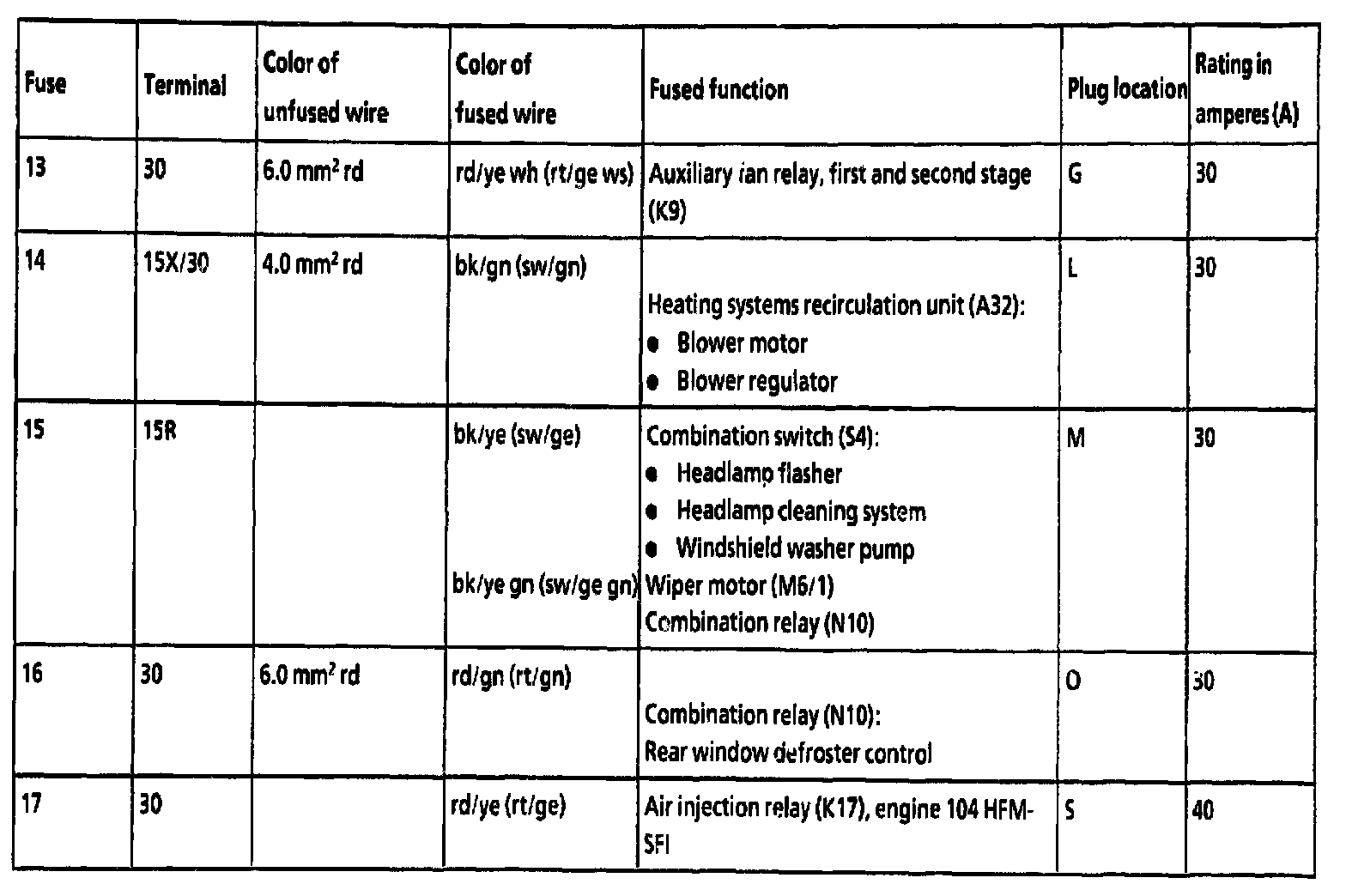

Fuse 13 - 17:

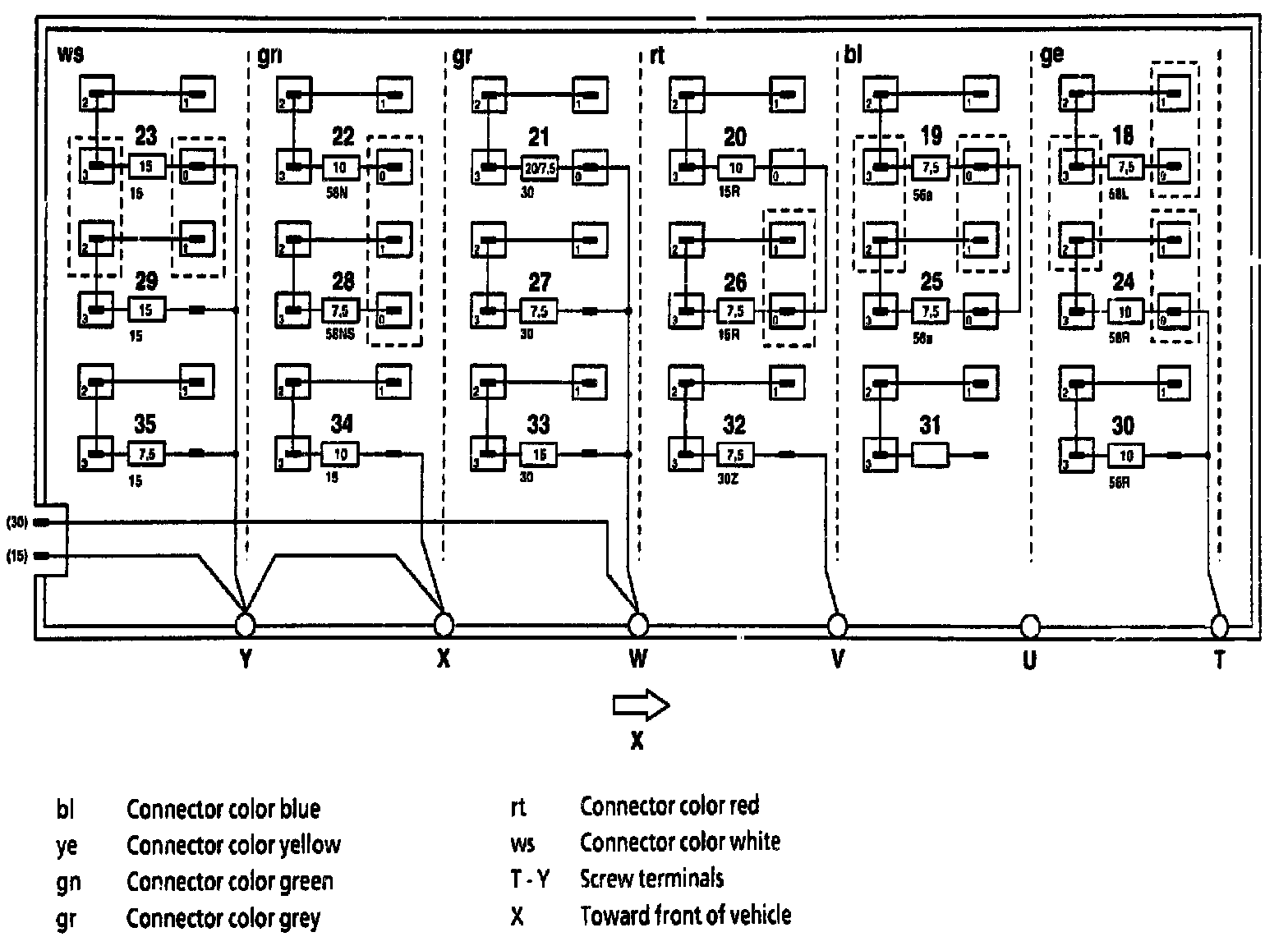

F3 - Fuse Box For 18 Fuses

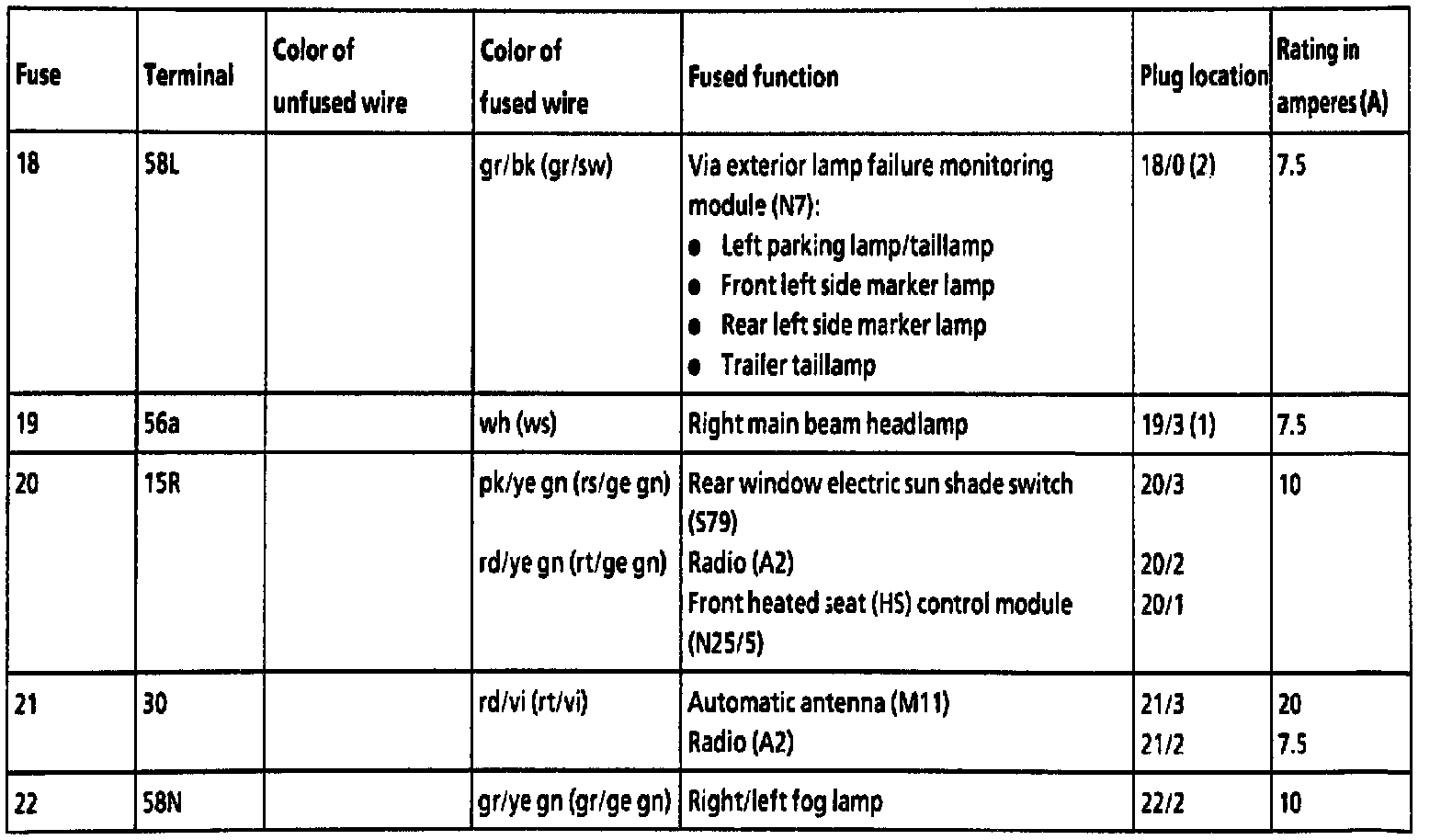

Fuse 18 - 22:

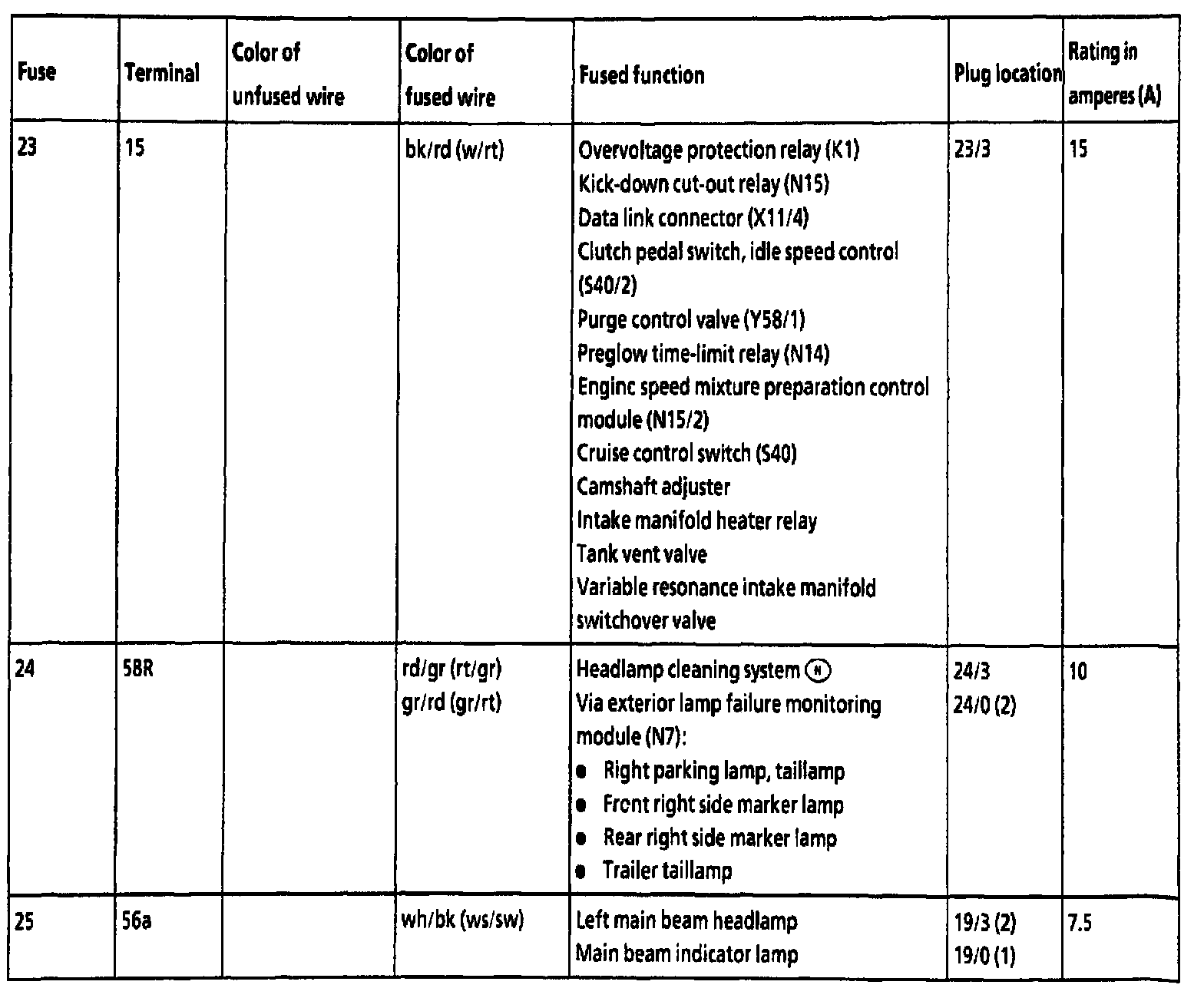

Fuse 23 - 25:

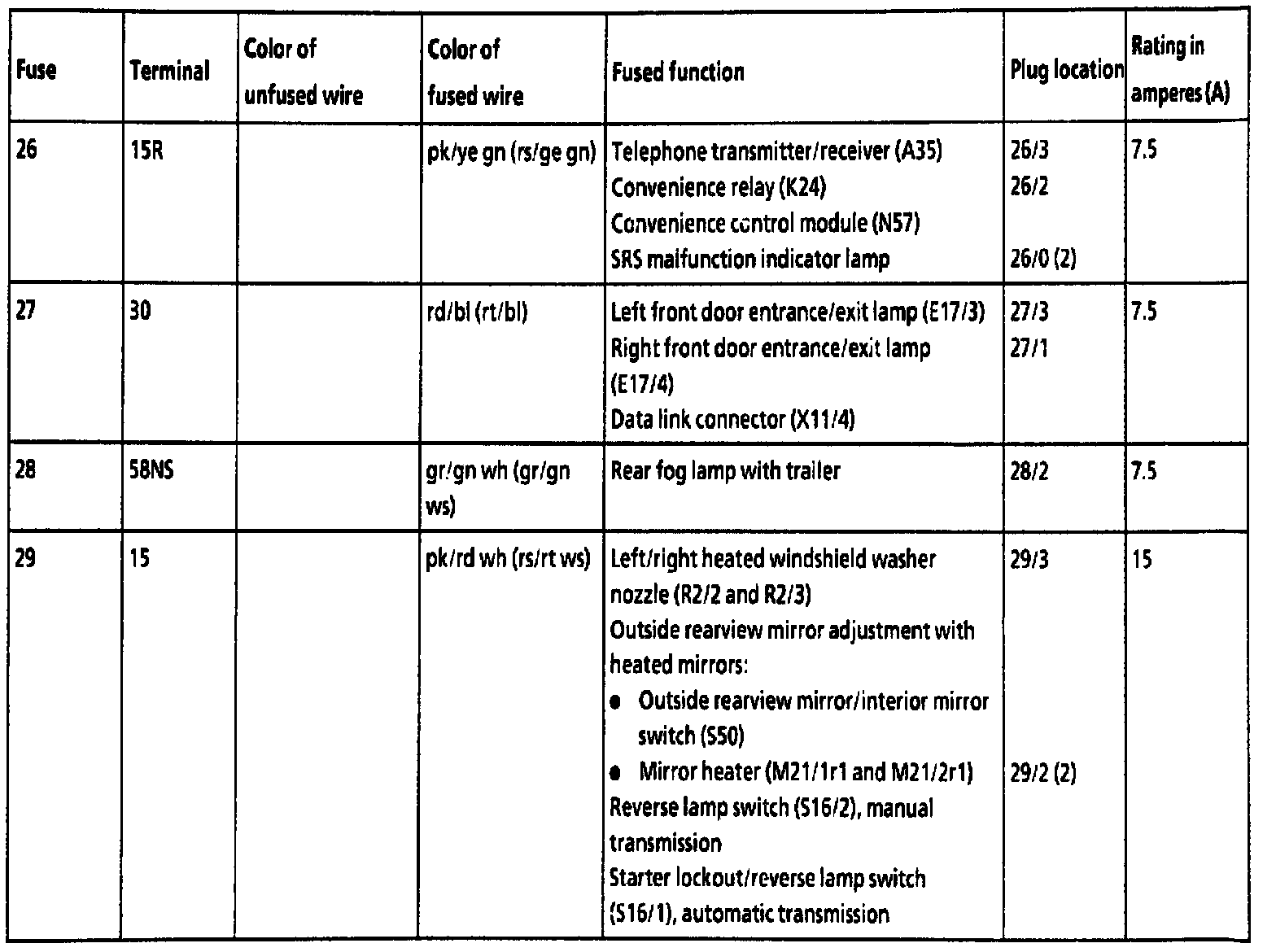

Fuse 26 - 29:

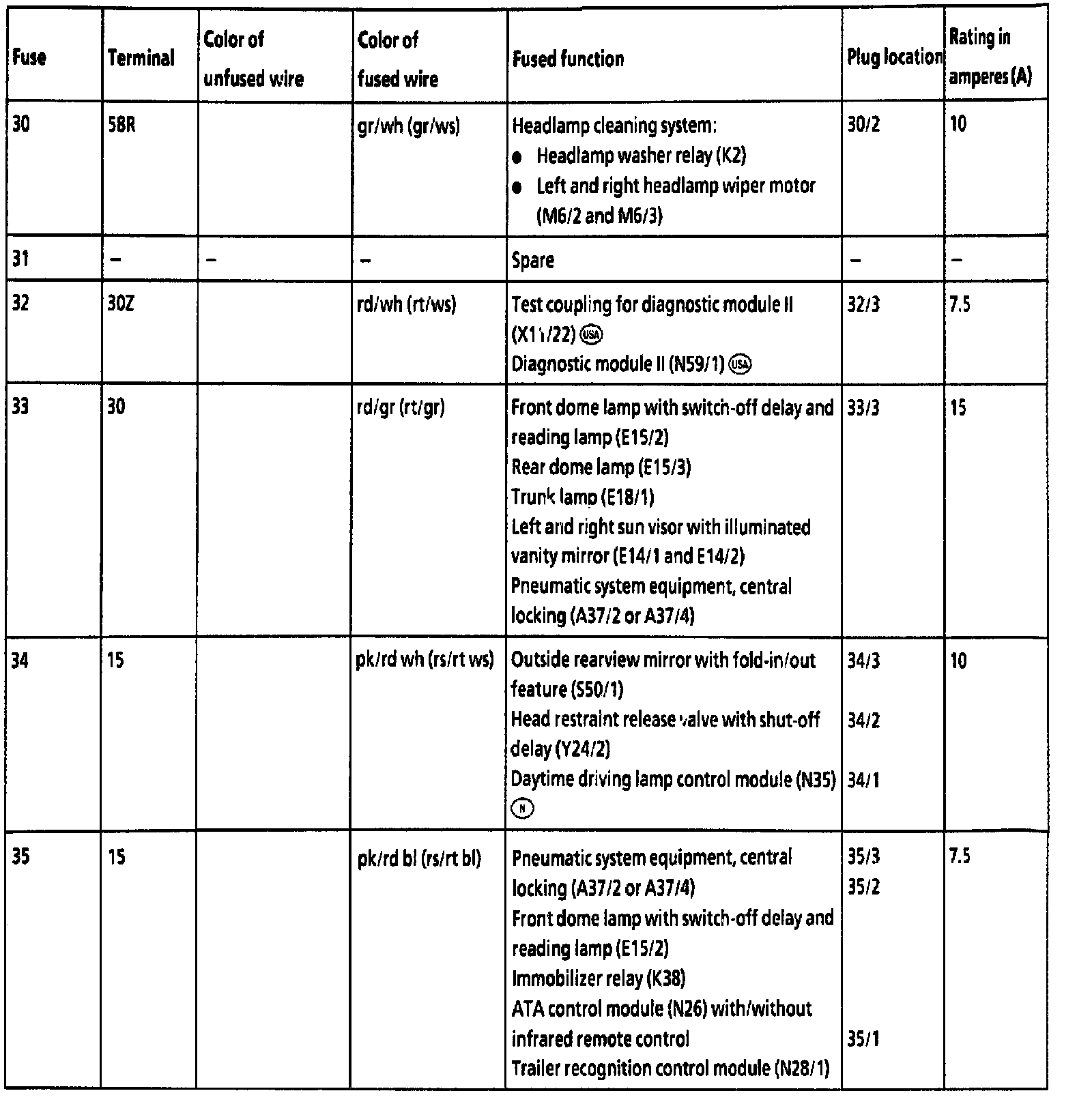

Fuse 30 - 35:

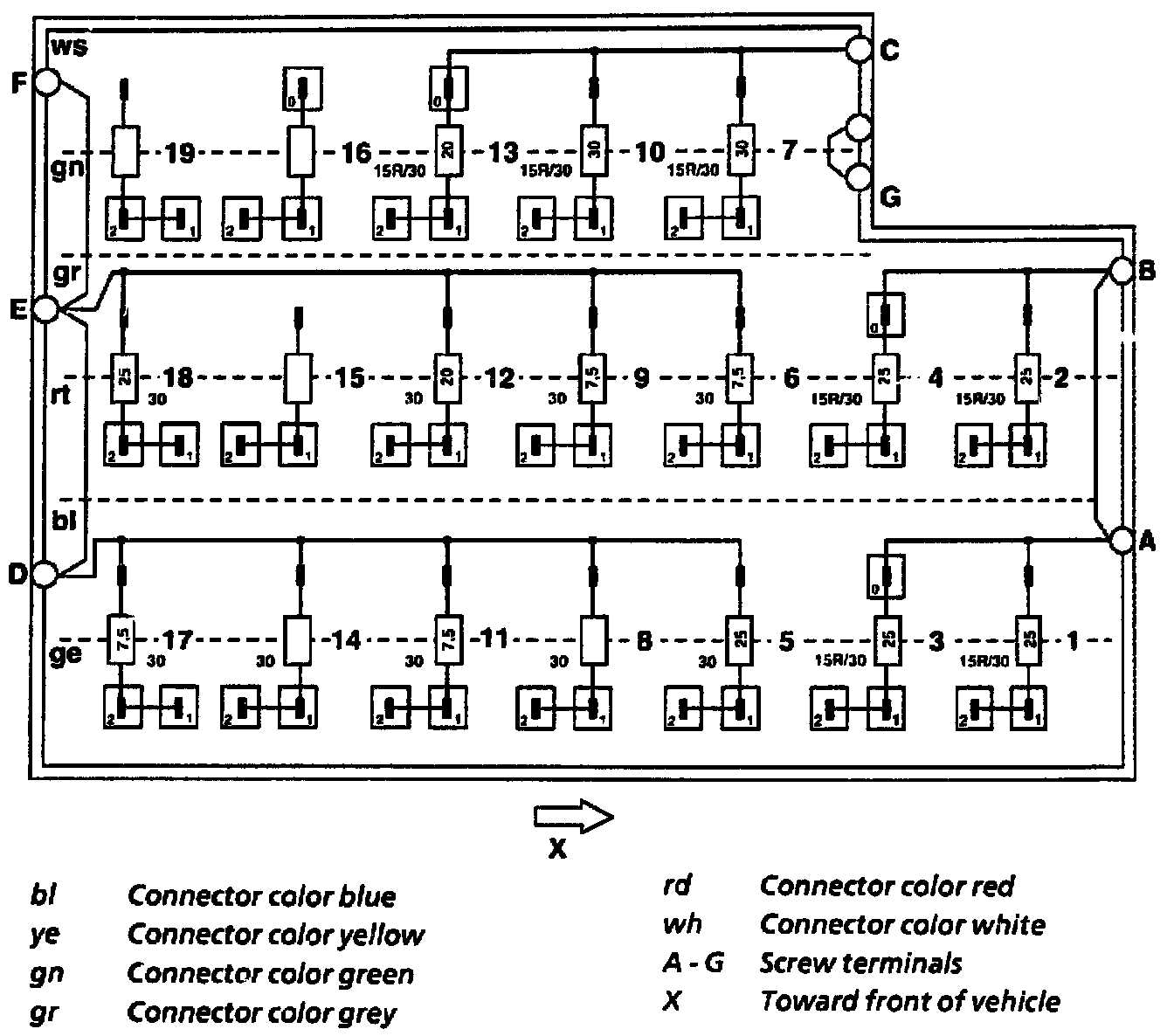

F4 - Fuse Box (In Trunk)
Fuse Box In Trunk (F4):
Fuse 1 - 7:

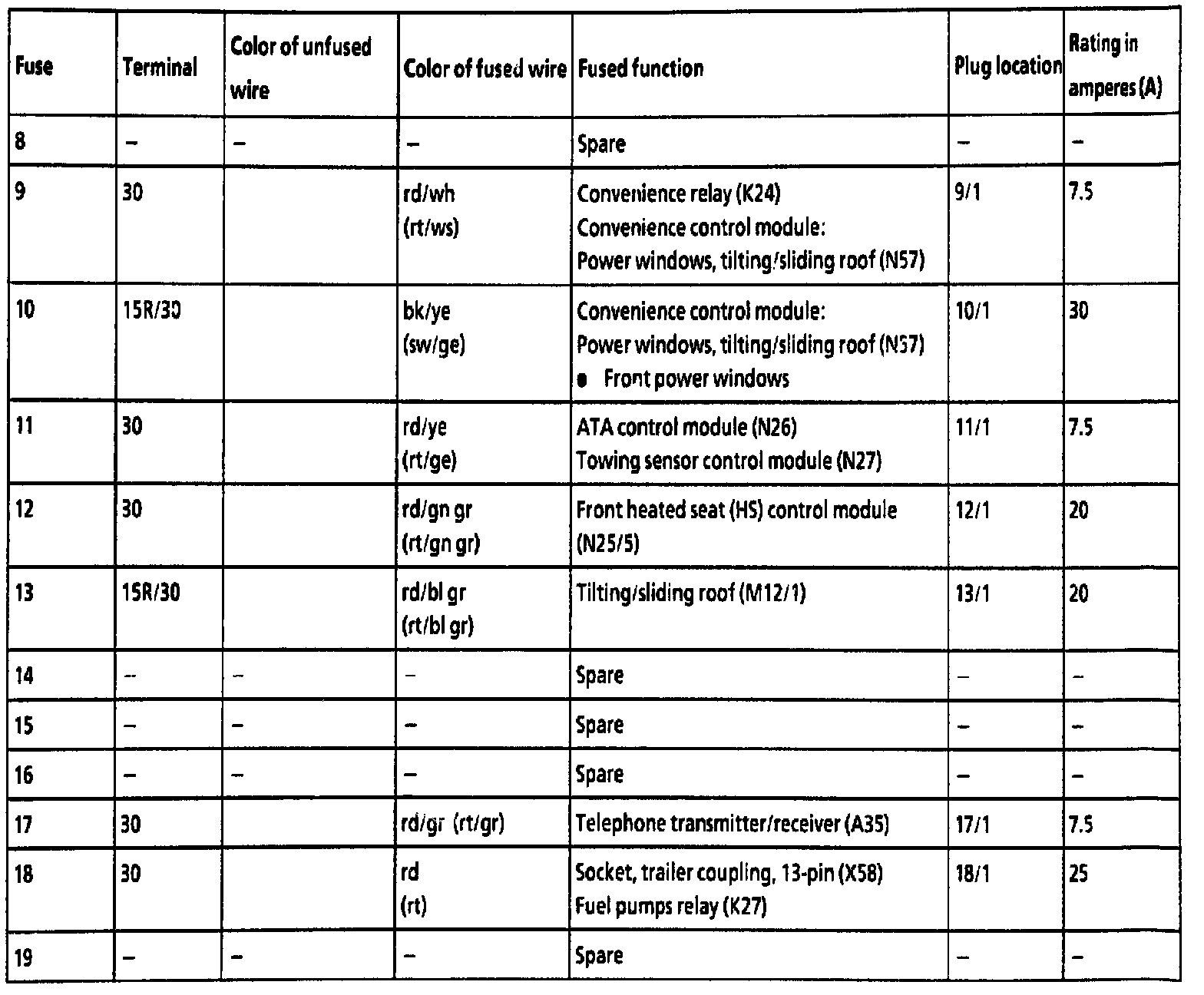

Fuse 8 - 19:
