HFM-SFI Related Components

Figure 1:

Figure 2:

Figure 3:

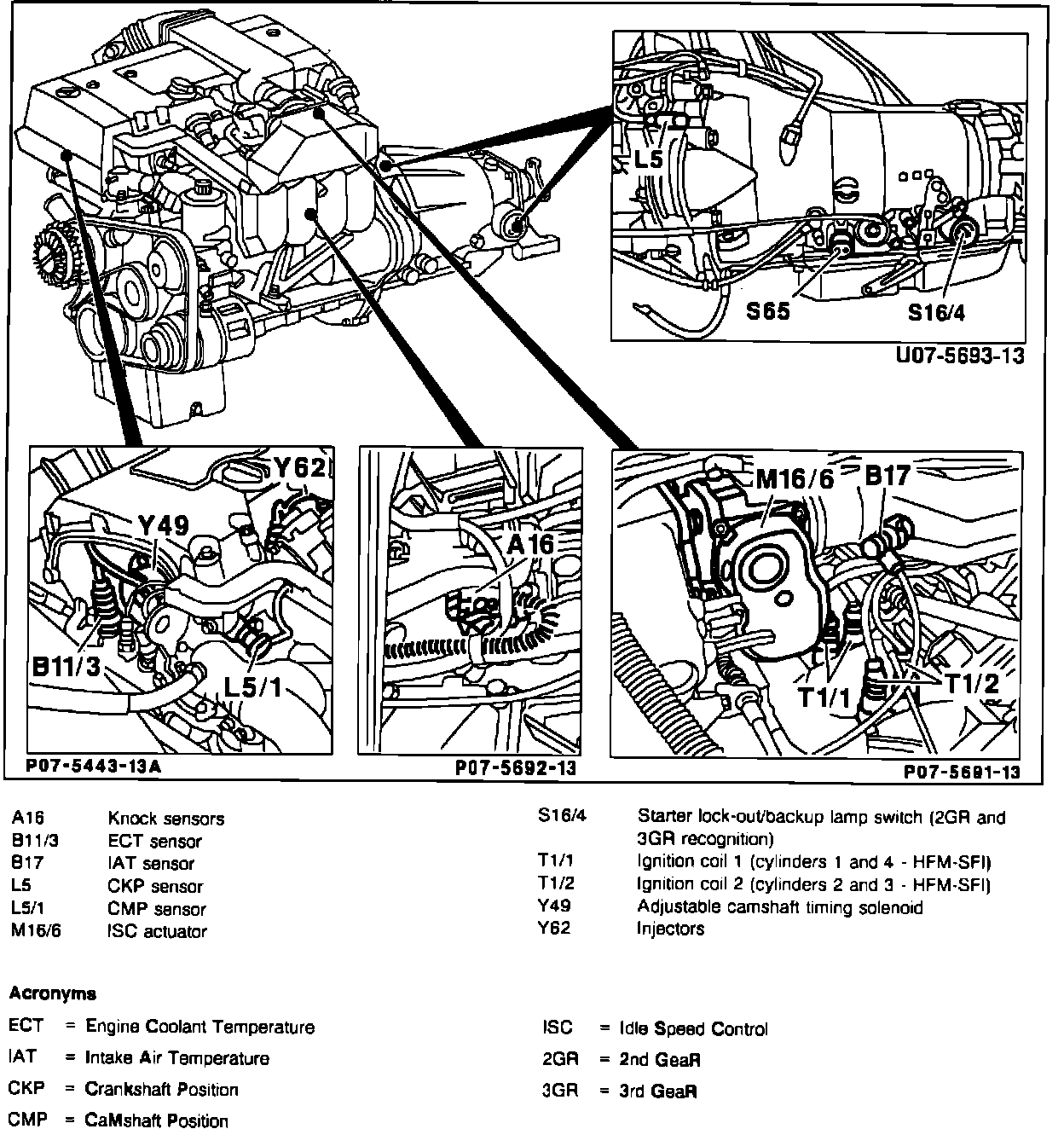

Figure 4:

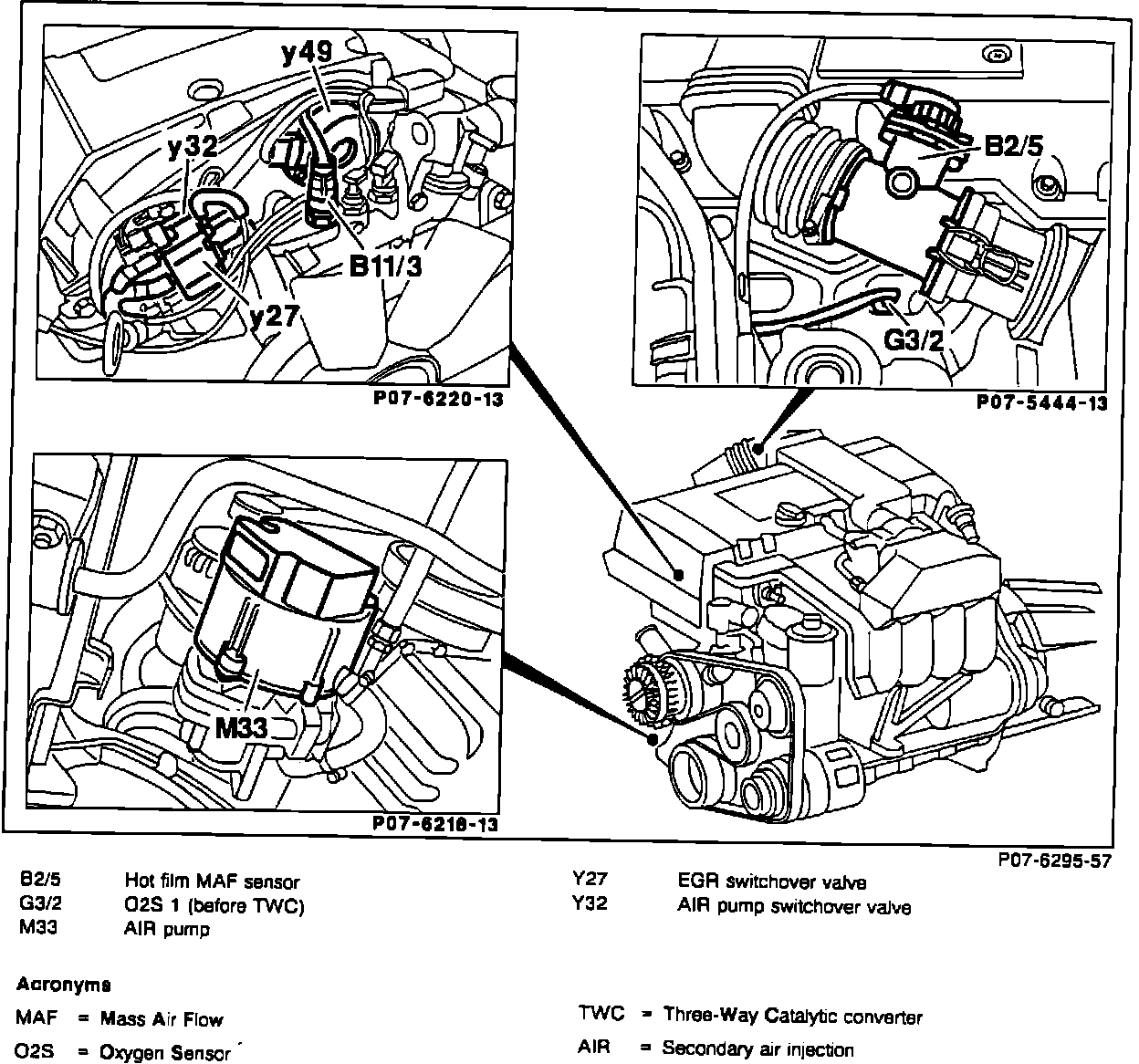

Figure 5:

For Component See Fig.
Air pump switchover valve Y32 5
Camshaft position sensor (CMP) L5/1 4
Camshaft timing adjustment solenoid Y49 4
Crankshaft position sensor (CKP) L5 4
Data link connector (DLC) X11/4 1
Data link connector (DLC) X11/22 3
EGR switchover valve Y27 5
Engine control module (HFM-SFI) N3/4 1
Engine coolant temperature sensor (ECT) B11/3 4
Fuel pump relay module K27 1
Hot film mass air flow sensor (MAS) B2/5 2
Idle speed control actuator (ISC) M16/6 4
Ignition coil 1 (cyl. 1 and 4) T1/1 4
Ignition coil 2 (cyl. 2 and 3) T1/2 4
Injectors Y62 4
Intake air temperature sensor (IAT) B17 2
Knock sensors A16 4
Malfunction indicator lamp (MIL) A1e26 1
Overvoltage protection relay module K1 1
Oxygen sensor I (O2S 1) G3/2 2
Oxygen sensor II (O2S 2) G3/1 2
Oxygen sensor II (O2S 2) heater relay module K35 1
Purge control valve Y58/1 2
Purge flow switchover valve Y27/6 3
Secondary air injection (AIR) relay module K17 1
Starter lock-out/backup lamp switch S16/4 4
Upshift delay switchover valve Y3/3 1
